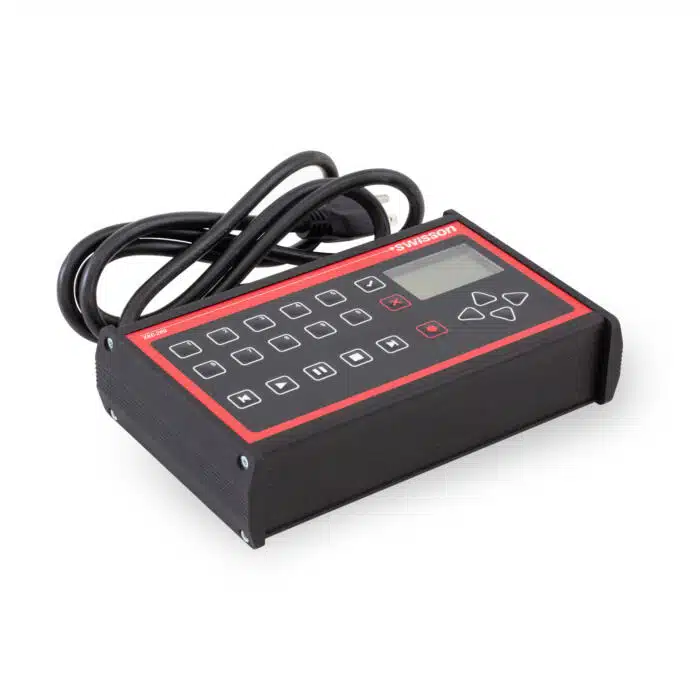

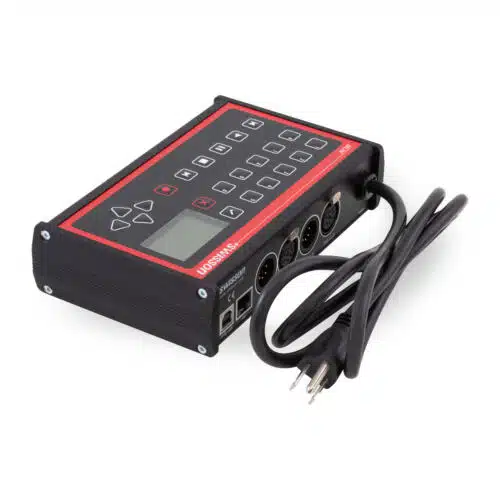

Swisson XRC-200 DMX Recorder & Playback Device

The Swisson XRC-200 DMX Recorder & Playback Device is a user-friendly and powerful tool for recording and replaying DMX lighting sequences. Its intuitive interface, similar to that of a CD player, allows both professionals and beginners to operate it with ease. This simplicity, paired with advanced functionality, makes it an excellent choice for a wide range of lighting control applications.

Users can record lighting sequences directly from a DMX console or any other DMX output device and instantly play them back in real-time with precision. Since it supports up to 2 DMX universes (1024 channels), the XRC-200 handles complex lighting setups, including LED fixtures and moving lights, without difficulty. Its adaptable design makes it a valuable solution for architectural lighting, entertainment venues, trade shows, museums, and retail installations.

To expand control options, the optional XRC-CT15B contact box includes 15 dry contact inputs, enabling seamless integration with external triggers. Moreover, the built-in timer lets users schedule both playback and device control effortlessly. With the ability to be triggered remotely via DMX, the XRC-200 provides greater flexibility for dynamic or automated lighting environments.

The XRC-200 also works as a dependable DMX backup unit during live shows, ensuring uninterrupted performance when needed most. Operators can configure and manage all recorded sequences using the included PC software via the USB connection. This convenient setup streamlines operation and enhances reliability across all applications.

Features

  • Record and playback 64 sequences
  • 10 configurable playlists
  • Configurable fade times
  • Optional 15 control inputs
  • 2 DMX inputs
  • 2 DMX outputs
  • USB connection for firmware updates and PC software
  • All shapes like circles and loops replay exactly and take over the DMX signal in the event of control panel failure
  • XRC-200 can be controlled with a DMX signal or interfaced through 10 fast access buttons
  • 2 universe input / 2 universe output

Documents

SKU# XRC-200
