Description

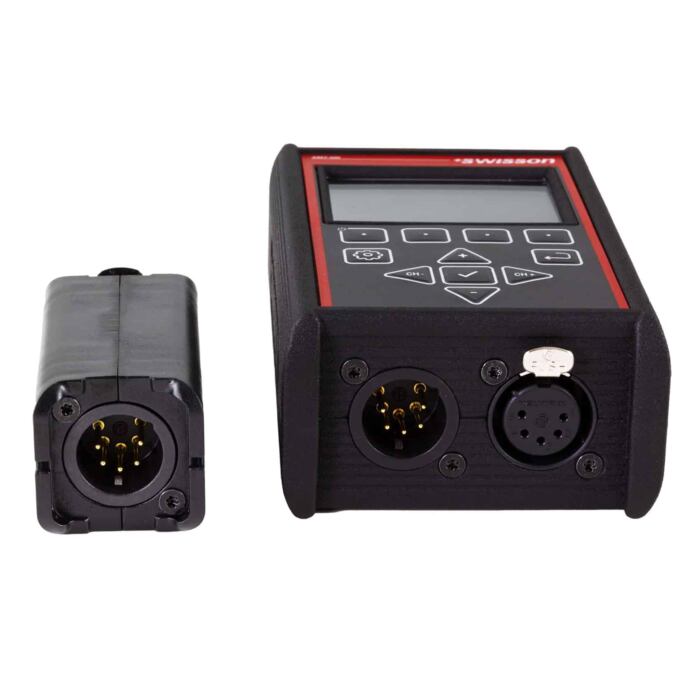

Swisson XMT-500 DMX Tester & RDM / Ethernet Controller & Measurement Tool

The basic functionalities of the XMT-500 include useful features for DMX, RDM, Art-Net, sACN, signal testing as well as cable testing. While the DMX functionality allows for sending values to any DMX channel or observing received signals, the RDM features help to locate and remotely configure RDM-compliant fixtures. Moreover, sACN and Art-Net commands can be sent or viewed in the receive mode. Signal testing helps to check for signal integrity provides real-time insights into the flow of data packages and monitors timing aspects of DMX & RDM. Sometimes, issues are simply caused by faulty cables, the cable testing feature scans all pin connections in any 3-pin or 5-pin DMX cable as well as RJ-45 cable automatically. Thanks to the cable test dongle, even installed cables can be easily tested.

In keeping with the motto “designed to grow with your needs”, the XMT-500 contains an impressive amount of processing power as well as plenty of memory space, which allows feeding the device with new features – complementary or as an upgrade.

Features

  • Send or receive values to/from any Art-Net or sACN channel/universe via etherCON
  • Send values to any DMX channel or view received DMX signals
  • Locate and remotely configure RDM-compliant fixtures anywhere in the rig
  • Precisely monitor every timing aspect of receiving DMX and RDM signals
  • Check the correct pin-out of all interconnections within XLR or RJ-45 cables
  • Full-color, sunlight-readable IPS TFT display
  • Li-ion battery, USB-C chargeable

Specifications

  • Battery:  3.6V, 3200mAh
  • USB-C:  5V DC, 7.5W
  • etherCON:  Neutrik
  • XLR 5-pin male:  Neutrik
  • XLR 5-pin female:  Neutrik
  • Display:  2.4” IPS TFT
  • Ethernet:  10BASE-T / 100BASE-TX, auto-negotiating, auto MDI-X
  • Network protocols:  sACN, sACN draft version (v0.2), Art-Net 1 through 4
  • DMX:  ANSI E1.11
  • RDM:  ANSI E1.20
  • Signal ports:  EIA-485
  • Ambient temperature:  -20 to +50°C (-4 to +122°F)
  • Weight:  0.445 kg (1 lb.)
  • Dimensions (L x W x H):  122 x 75 x 43 mm (4.8″ x 2.95″ x 1.7″)

Box Content

  • Swisson XMT-500 DMX Tester
  • 3 Pin XLR to 5 Pin XLR Converter
  • EthernetCON to XLR 5-pin Male
  • Soft carrying case

Downloadable Documentation:

SKU# XMT-500
