Description

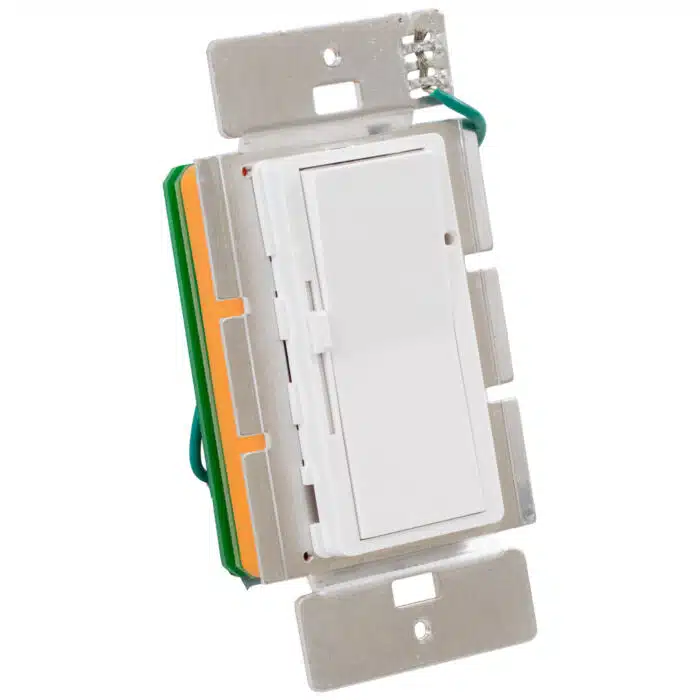

ATX LED AL-WS-DMX Wall Dimmer with DMX Output and 3-Way Support

This switch operates just like any standard residential light switch – however, it uses DMX512 for communication with other devices. This DMX source in a standard residential style outline fits into any home looks like any switch yet requires no licensed electrician for installation – the dimmer itself uses under 50 mw yet controls thousands of watts of lighting. Stand alone it operates as a single Universe for one DMX address. It has DMX in and DMX out for daisy chaining multiple switches. The DMX address and light mode is set by a dip switch.

Controls and Operation

The On/Off switch is like any normal switch. The slider sets the brightness. In Color modes, the slider can adjust the RGB color as well.

Multi-Switch and 3-Way Support

Each switch operates in collision detection, multi-master mode – each one builds a universe of DMX addresses and learns the status of other switches. Thus multiple switches can control the complete universe. In single address mode 7 operation, the device supports 3-way switching – each switch can share the same destination DMX512 address and the last switch moved will control the On/Off and dim level.

Specifications

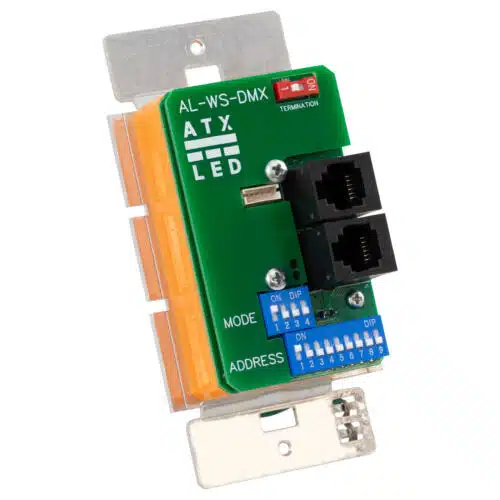

  • Power and Data Source and Passthrough:  RJ 11 female connectors ( 2 )
  • Power Protocol:  Passive power from the RJ11
  • Input Voltage Range:  12v to 57 volts
  • Power Pins in:  See Diagram
  • Data Pins ( DMX512 over Rj11):  XLR2 D+ and XLR3 D- with collision detection
  • Max Power Consumption:  50 milliwatts
  • Addressing:  512 unit addresses via dip switch
  • Protection:  Reverse protection and static protection
  • Operating Temperature:  0°C ~ 50°C
  • Size:  108H (metal) 70H x 34 D x 42 W mm
  • Multi Master Shared DMX Bus:  Supported
  • 3-Way Operation with Multiple Switch:  Supported in a single address, white only
  • Termination Resistor:  Version 3 hardware adds a switch for simple 120-ohm termination at the end of the run

Box Content

  • Wall Dimmer

Documents



SKU# AL-WS-DMX
