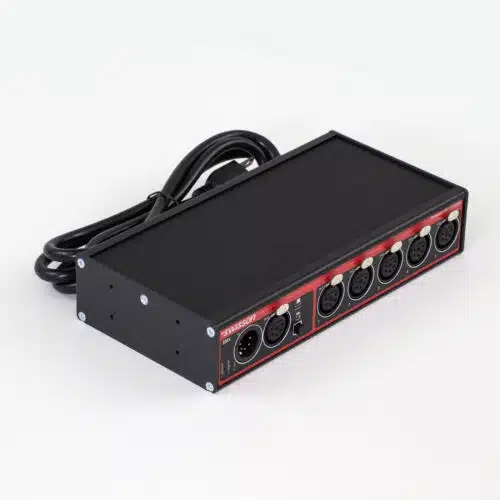

Swisson DMX Optical Isolated Splitter & Booster 5 Pin XLR Box Style – XSP-5B-US

DMX Optical Isolated Splitter & Booster are essential components in any DMX512 lighting control system, ensuring stable and interference-free signal distribution across multiple devices. The Swisson XSP Series DMX Splitters deliver the highest level of reliability and performance. Making them the ideal choice for professional events, stage productions, architectural lighting, and permanent installations.

With its rugged construction, advanced signal management, and multiple mounting options, the Swisson XSP Series DMX Splitters are the perfect solution for professionals seeking maximum reliability and flexibility in their DMX installations. Whether you need a portable truss-mounted splitter, a rack-mounted version for touring, or a permanent installation unit, the XSP series ensures flawless DMX signal distribution every time.

Superior Signal Integrity and Protection

The XSP series splitters boost and regenerate DMX signals without altering the protocol timing. By reducing reflection issues, these splitters ensure clean, uninterrupted DMX transmission across multiple lines. Each DMX output port is optically isolated, offering robust protection against electrical surges, transient over-voltages, and ground loops, which are common causes of signal corruption and equipment damage.

A built-in microcontroller continuously monitors the DMX signal, providing real-time status feedback. If an issue arises, the unit promptly alerts users with visual indicators, ensuring quick troubleshooting and minimizing downtime during live performances or critical installations.

Versatile Mounting and Connector Options DMX Optical Isolated Splitter

The Swisson XSP-5B-US splitter is designed to accommodate various applications, offering multiple housing formats and connector configurations:

Portable Box Models – Ideal for truss mounting with an integrated clamp thread and safety eyelet for added security.
Rack & Double Rack Models – Designed for 19-inch rack systems, with up to 10 DMX outputs in double-rack versions.
Installation Versions – Wall-mountable for permanent setups, with direct wiring options.
Connector Types – Available in 5-pin XLR, 3-pin XLR, and pluggable screw terminal versions to fit diverse system requirements.

Key Features of the Swisson XSP Series:

  • Regenerates and boosts DMX signals for consistent performance
  • Reduces signal reflection problems, ensuring reliable data transmission
  • Distributes DMX efficiently across multiple lines
  • Optical isolation per port for superior surge protection
  • 5 DMX outputs per universe, with 10 outputs available on double-rack models
  • Flexible housing options: Box, Rack, Double Rack, and Installation versions
  • Comprehensive compatibility with different DMX-controlled devices

SKU# XSP-5B-US
