Description

WT5 WiFi and RF 5 in 1 LED Controller Bundle with Selectable RT Remote

The WT5 bundle combines a multifunction smart LED controller with a selectable RT touch wheel remote. It provides app, voice, and RF control for single color, CCT, RGB, RGBW, and RGB+CCT constant voltage LED lighting.

The WT5 delivers five channel constant voltage output with smooth 4096 level dimming from 0 to 100 percent. Users can control brightness, color, color temperature, scenes, schedules, timers, and music responsive effects through the Tuya Smart or Smart Life app.

Integrated WiFi and 2.4 GHz RF communication support local remote operation and smart control through compatible voice assistants. The WT5 can also function as a WiFi to RF converter for synchronized control of additional compatible RF LED controllers and dimming drivers.

Features:

  • Five in one control for single color, CCT, RGB, RGBW, and RGB+CCT LED lighting
  • Tuya Smart and Smart Life app control
  • Compatible with Amazon Alexa and Google Assistant voice control
  • Brightness, color, color temperature, scene, timer, schedule, and music control
  • 4096 level dimming with a 0 to 100 percent adjustment range
  • Five channel constant voltage output
  • WiFi and 2.4 GHz RF communication
  • WiFi to RF converter functionality

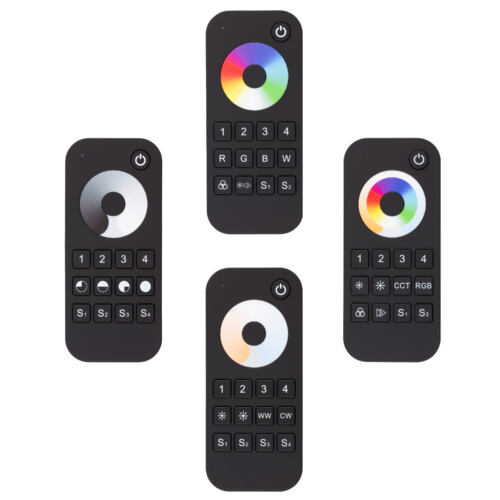

  • Selectable one zone, four zone, and eight zone remote options
  • Compatible dimming remotes: RT1, RT6, and RT8
  • Compatible CCT remotes: RT2, RT7, and RT8C
  • Compatible RGB and RGBW remotes: RT4 and RT9
  • Compatible RGB+CCT remotes: RT5 and RT10
  • RT10 supports configurable single color, CCT, RGB, RGBW, and RGB+CCT zones
  • Remote control distance up to 30 meters in barrier free environments
  • Reverse polarity, overheating, and short circuit protection



Note:

  • The WT5 must be configured for the same lighting type as the selected RT remote before pairing. WiFi setup requires a 2.4 GHz network and does not support 5 GHz networks.

Specifications:

  • Model: WT5
  • Controller Type: WiFi and RF 5 in 1 LED Controller
  • Input Voltage: 12 to 24 VDC
  • Input Current: 15.5 A
  • Output Type: Constant voltage
  • Output Channels: 5
  • Output Current: 3 A per channel
  • Output Power: 5 channels at 36 to 72 W each
  • Control Signal: WiFi and RF 2.4 GHz
  • RF Control Distance: 30 meters in barrier free space
  • Dimming Range: 0 to 100 percent
  • Dimming Resolution: 4096 levels
  • PWM Frequency: 1000 Hz
  • Operating Temperature: Minus 30 to 55 degrees Celsius
  • Controller Dimensions: 120 by 43 by 27 millimeters
  • Remote Power: Two AAA batteries
  • Remote Dimensions: 140 by 60 by 26 millimeters
  • Warranty: 5 years

Box Content:

  • One WT5 WiFi and RF 5 in 1 LED Controller

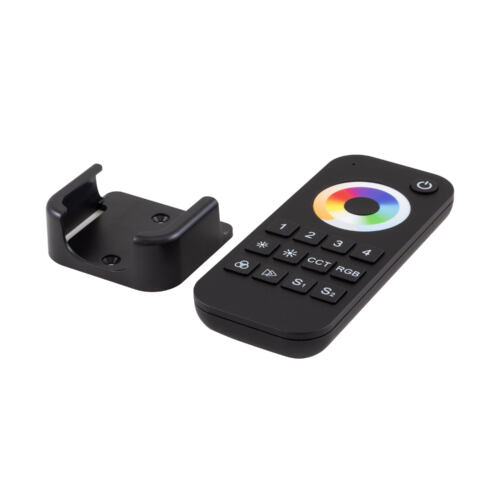

  • One selected RT remote controller
  • Remote wall holder
