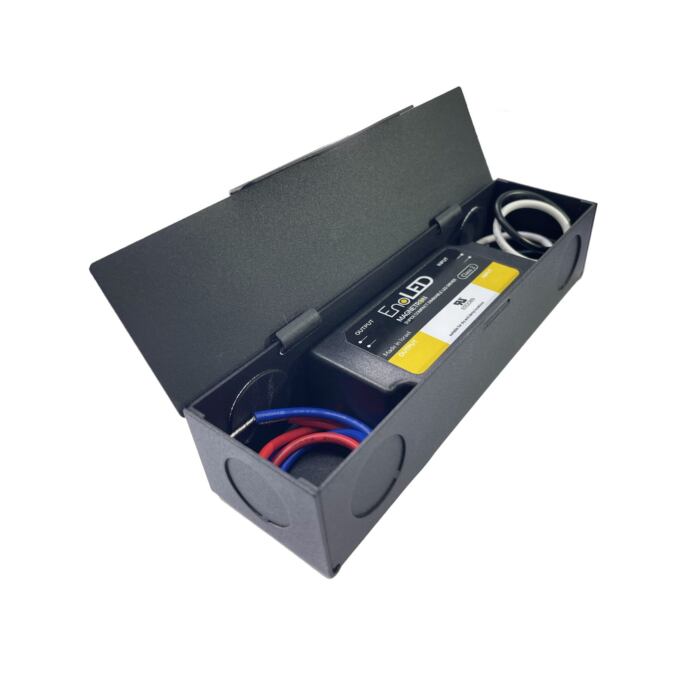

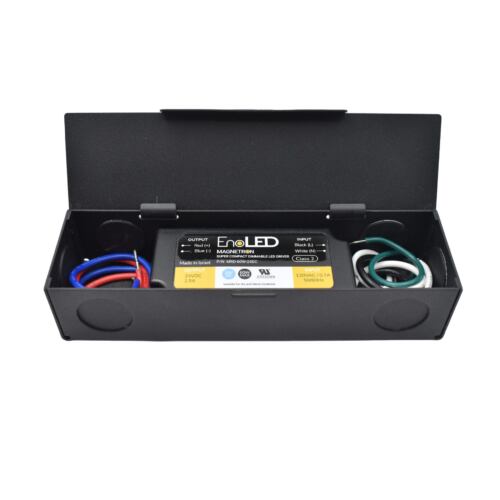

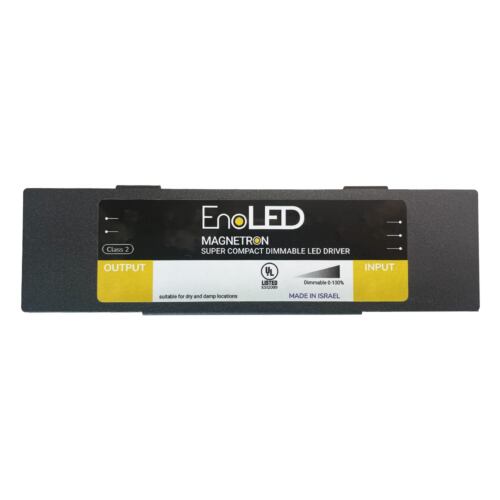

Magnetron XRD 60W 12VDC Phase Cut Dimmable LED Driver

The Magnetron XRD 60W 12VDC LED Driver is a high-performance, UL Listed Class 2 power supply designed for reliable and efficient operation in low-voltage LED lighting applications. Engineered with precision and built for durability, this 60-watt LED driver features a super compact metal enclosure with an integrated junction box, offering a clean and secure installation for both residential and commercial projects.

One of the standout features of the XRD series is its phase-cut dimmable compatibility, supporting both leading-edge and trailing-edge dimmers, including Incandescent, CFL, LED, Magnetic Low Voltage (MLV), and Electronic Low Voltage (ELV) types. The driver delivers ultra-smooth dimming performance down to 1%, allowing for seamless ambiance control without flickering, buzzing, or dropouts.

Optimized for 12VDC LED tape and strip lighting, the XRD 60W driver provides high energy efficiency, thermal protection, and short circuit safeguards to ensure long-term, trouble-free operation. The Class 2 rating limits output power for enhanced safety and makes it compliant with most electrical codes, reducing the need for additional protection in many applications.

Ideal for under-cabinet lighting, cove lighting, accent lighting, and architectural installations, the Magnetron XRD driver is the professional’s choice for compact, reliable, and code-compliant LED power. Its low-profile design fits easily into standard junction boxes and tight spaces, while the metal housing adds durability and heat dissipation.

Whether you’re designing a custom lighting solution or upgrading existing installations, the Magnetron XRD 60W driver provides the quality, efficiency, and flexibility required for modern lighting systems.

Features:

  • The smallest Dimmable LED driver in the market – 6.20×1.85×1.35 inch (L*W*H)
  • Built-in junction box
  • UL Listed – Class 2
  • Dimmable with any Incandescent/CLF/LED/MLV/ELV (leading or trailing edge) dimmer switch.
  • Dim down to 1%
  • Overload and short circuits auto-reset protection
  • 88% Efficiency @ Full Load
  • Damp and dry location

Specifications:

  • Max Power: 60W
  • Input Voltage: 120VAC
  • Output Voltage: 12VDC
  • Dimmable: Triac / ELV (leading or trailing edge)
  • IP Rating: IP65
  • Efficiency: @ Full Load 88%
  • Warranty: 6 Year
  • Dimensions: (W x H x L) 1.85” x 1.35” x 6.20”
