Description

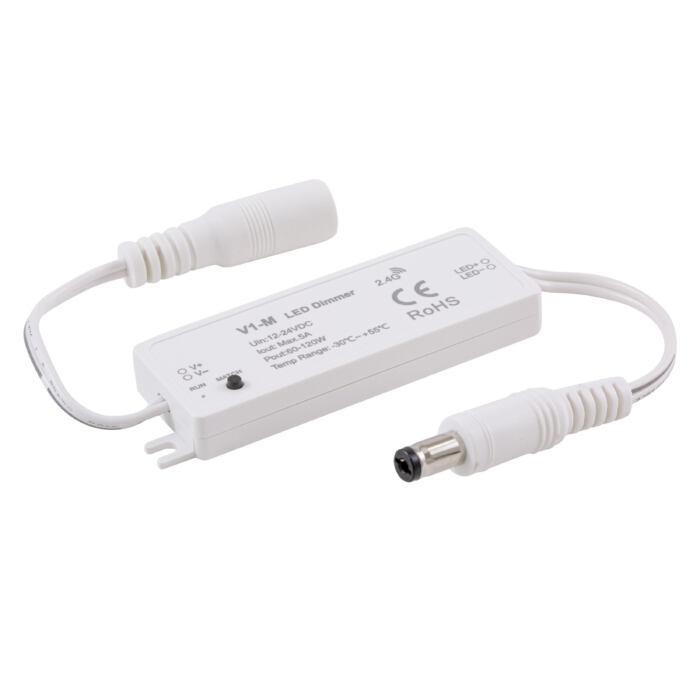

Single Color Mini RF LED Controller | V1-M(D)

The V1-M(D) is a compact, single-channel constant-voltage RF controller designed for wireless dimming of single-color LED lighting. It supports 12-24 VDC systems with up to 5A output.

RF 2.4GHz connectivity provides smooth, stepless dimming using compatible single-zone or multi-zone RF controls. Each controller can pair with up to 10 RF controls and offers a barrier-free control distance of up to 30 meters.

The V1-M(D) is the DC jack version of the V1-M, featuring a 5.5mm DC female input jack and 5.5mm DC male output jack. A 4096-level logarithmic dimming curve provides precise brightness control from 0-100%, while auto-transmission supports synchronized operation across multiple controllers.

Features:

  • Single-channel control for constant-voltage single-color LED lighting
  • RF 2.4GHz wireless dimming
  • Compatible with single-zone and multi-zone RF controls
  • Supports pairing with up to 10 RF controls
  • 4096-level smooth dimming from 0-100%
  • 2000Hz PWM output frequency
  • Selectable 3-second light on and off fade
  • Automatic signal transmission between controllers
  • Synchronized control across multiple controllers
  • 5.5mm DC female input jack and male output jack

Compatible RF Controls

Handheld Remotes: RT1, RT6, RT8, R1, R1-1, R6-1, R6, R11, RS1, RS6, RU4, RU8, RV1, RL1, RM1, RQ2, and RQ4.

Wall-Mounted / Touch Controls: T11, T11-1, T11-K, T20-1, T21, T21-S, TW1, TW1-4, TL1, PK1, and RK1.

Push-Button Wall Controls: PB1 Series, PB2 Series, PB3 Series, PF1 Series, and PF1-2 Series.

Available from SIRS-E: RT6 – 4-Zone 2.4GHz RF Dimming Remote (Sold Separately)

Specifications:

  • Input Voltage: 12-24 VDC
  • Output Voltage: 12-24 VDC
  • Output Current: 5A maximum
  • Output Power: 60-120W
  • Output Type: Constant voltage
  • Input Signal: RF 2.4GHz
  • Control Distance: Up to 30 meters in barrier-free space
  • Dimming Range: 0-100%
  • Dimming Resolution: 4096 levels
  • Dimming Curve: Logarithmic
  • PWM Frequency: 2000Hz default
  • Operating Temperature: -30°C to 55°C
  • Maximum Case Temperature: 85°C
  • IP Rating: IP20
  • Dimensions: 76 x 23.5 x 8.7 mm
  • V1-M(D) Connections: 5.5mm DC female input jack and male output jack
  • Certification: CE RED
  • Warranty: 5 years

Box Content:

  • 1 V1-M(D) LED Controller
  • Datasheet

Documents:

Note:

  • RF controls are sold separately.
  • Requires a compatible 12-24 VDC constant-voltage power supply.
  • Do not exceed the controller’s maximum rated output.

SKU# V1-M(D)
