Description

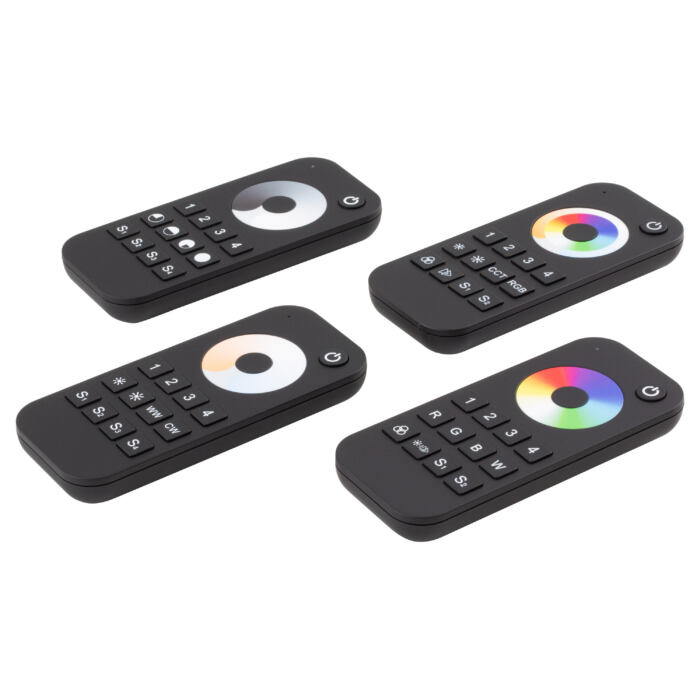

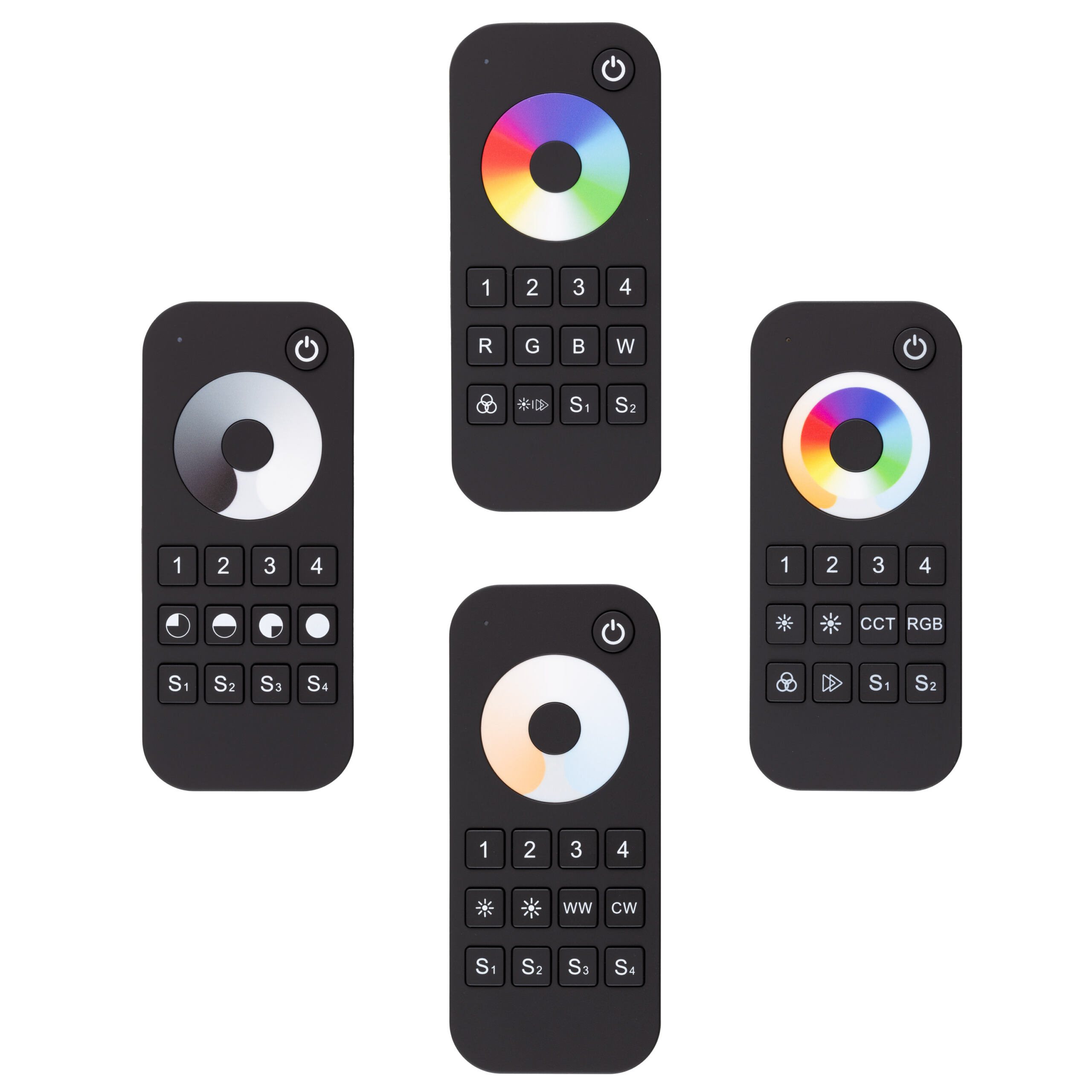

RT Series RF Touch Wheel Remote Controllers  RT6 RT7 RT9 RT10

The RT Series provides wireless control for single-color, CCT, RGB, RGBW, and RGB+CCT LED controllers. Multiple model variations are available with one-zone, four-zone, or eight-zone operation.

Each remote uses a responsive touch wheel for intuitive brightness, color-temperature, or RGB color adjustment depending on the selected model. Compatible zones can be paired with one or more receivers, allowing individual or synchronized control across residential and commercial LED lighting installations.

Available functions vary by model and include continuous 256-level dimming, preset brightness levels, programmable scenes, direct color selection, dynamic RGB modes, saturation adjustment, color-temperature control, and independent RGB or white-channel adjustment. An LED indicator provides visual operation feedback, while automatic sleep mode helps extend battery life.

Features:

  • RF control for compatible LED controllers and lighting systems
  • Ultra-sensitive touch wheel operation
  • One-zone, four-zone, and eight-zone models available
  • Single-color, CCT, RGB, RGBW, and RGB+CCT options
  • Individual and synchronized multi-zone control on applicable models
  • Pairs each zone with one or more compatible receivers
  • Continuous 256-level brightness adjustment on applicable models
  • Programmable scene storage and recall
  • Dynamic RGB lighting modes on applicable models
  • Adjustable RGB saturation and mode speed on applicable models
  • Direct warm-white and cool-white control on CCT models
  • Independent red, green, blue, and white adjustment on applicable models
  • LED operation indicator
  • Automatic sleep function for extended battery life

Note:

Select the model that matches the LED controller type and required number of control zones. For indoor and dry locations only.

Specifications:

  • RT1: 1 Zone Single-Color Dimming

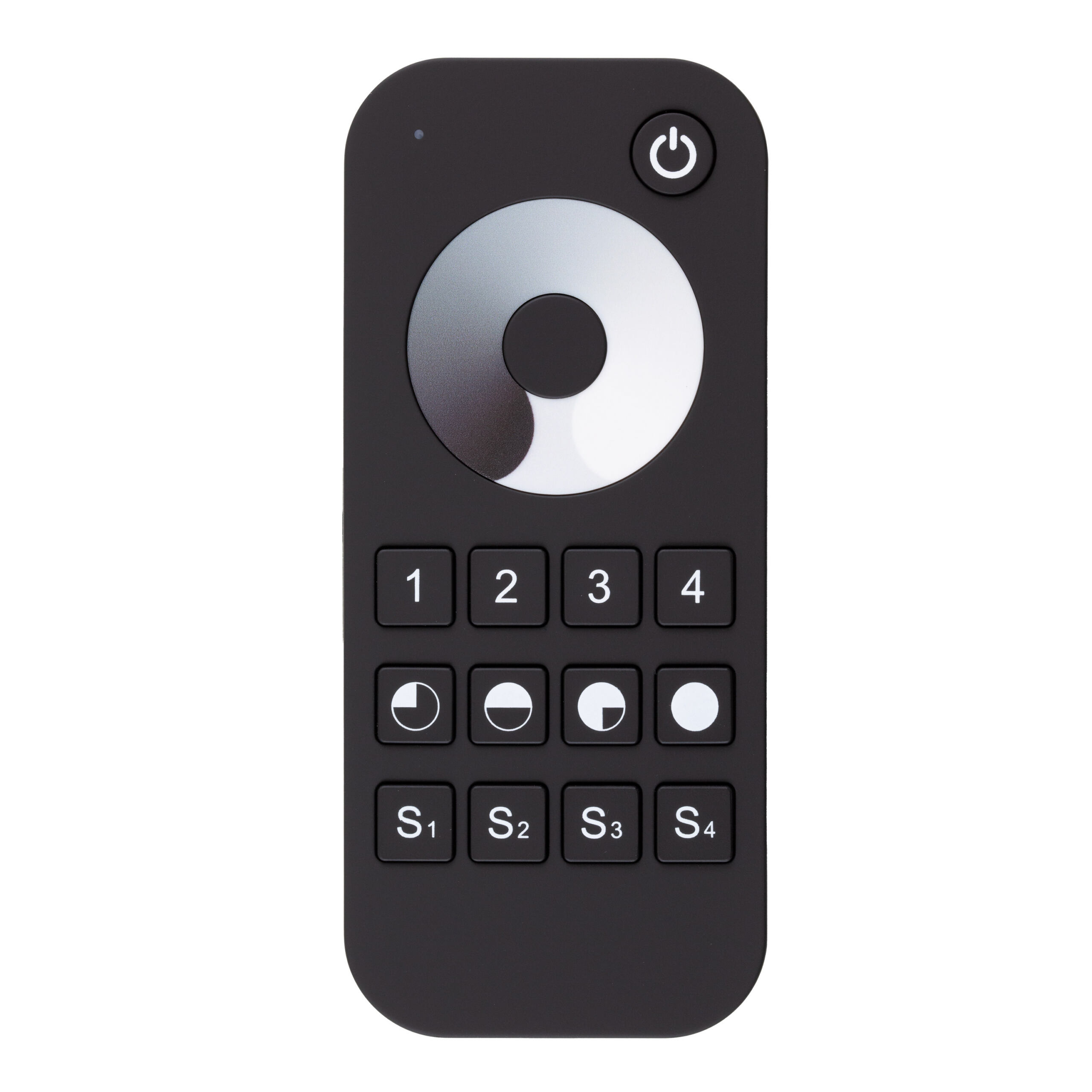

  • RT6: 4 Zone Single-Color Dimming
  • RT8: 8 Zone Single-Color Dimming
  • RT2: 1 Zone CCT

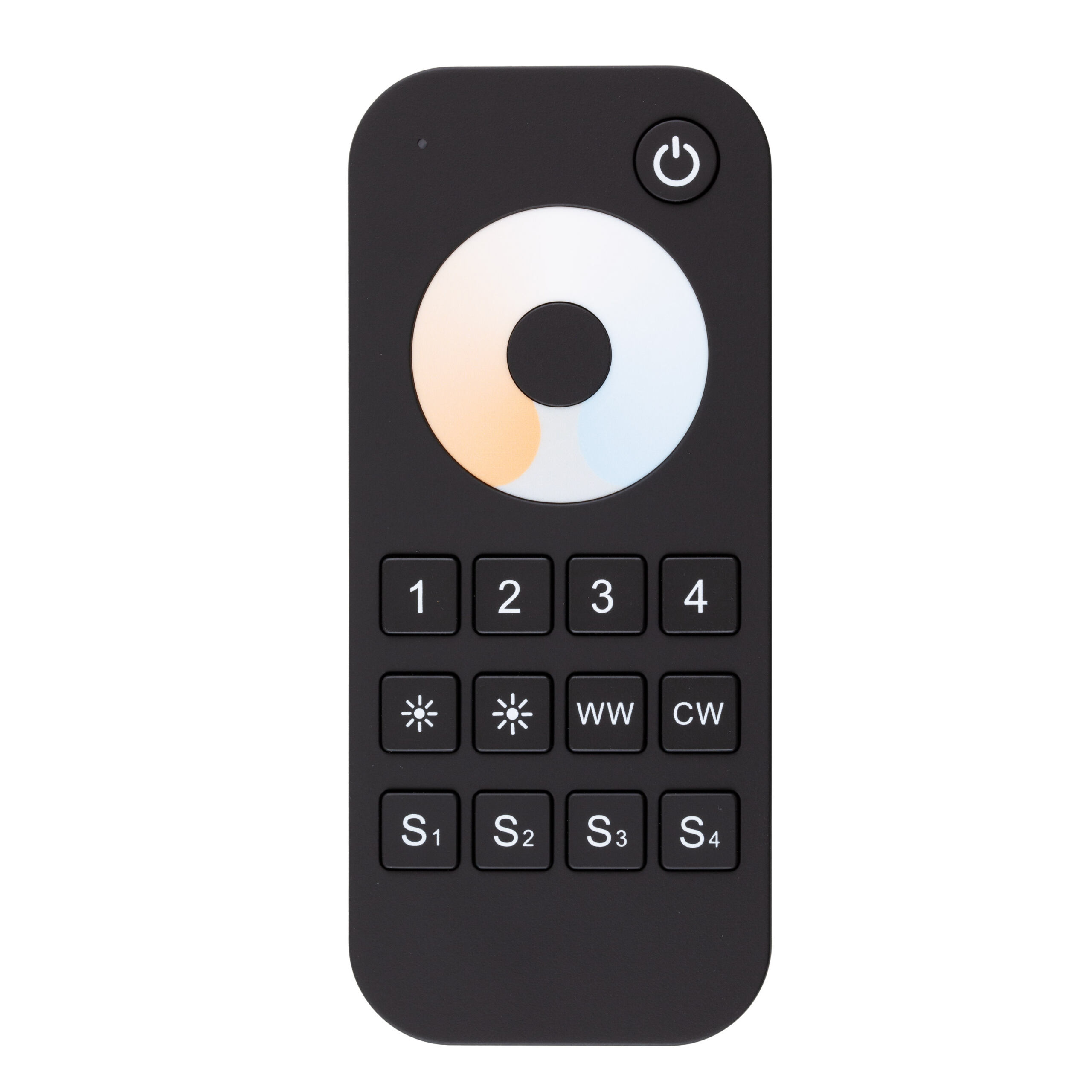

  • RT7: 4 Zone CCT
  • RT8C: 8 Zone CCT
  • RT4: 1 Zone RGB or RGBW

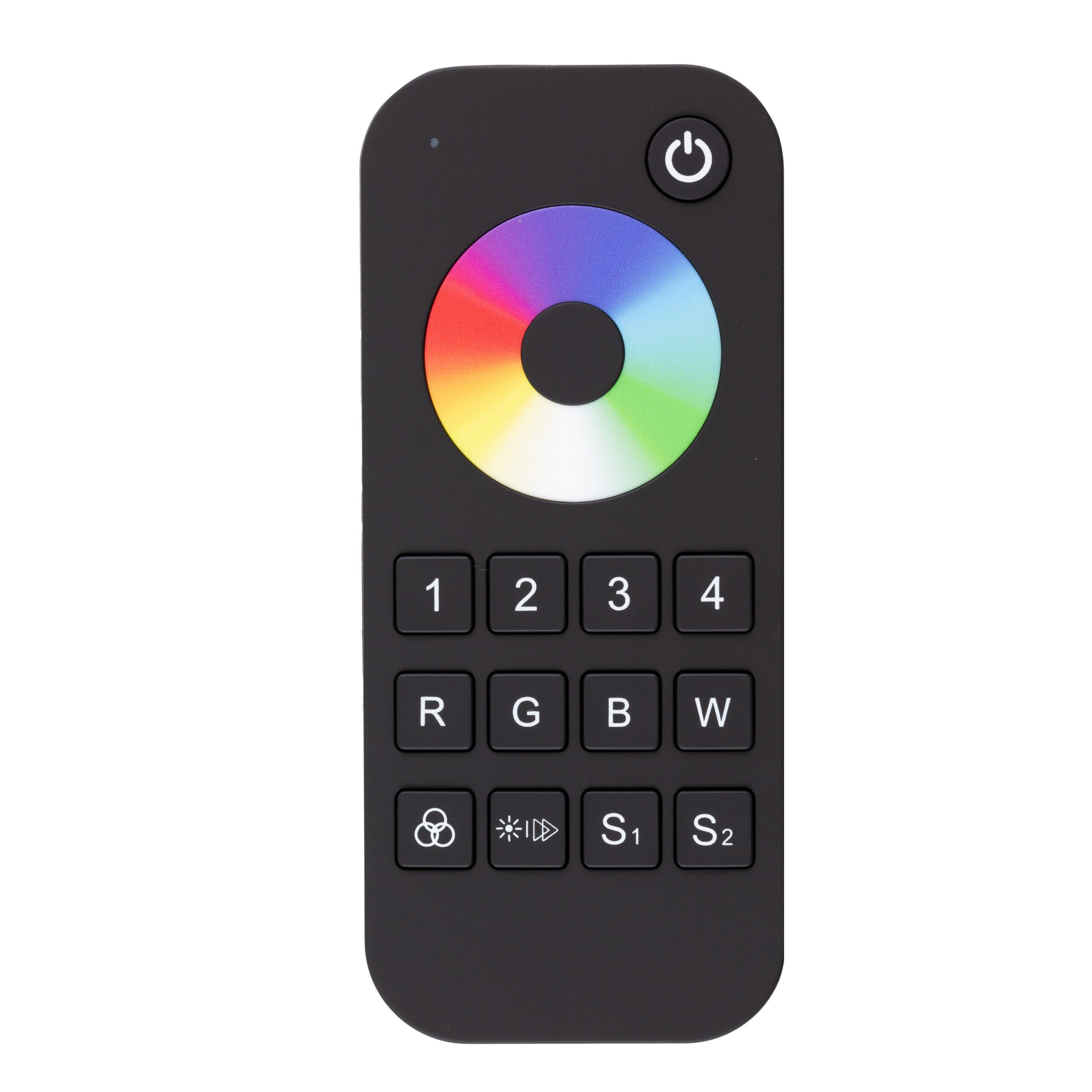

  • RT9: 4 Zone RGB or RGBW
  • RT5: 1 Zone RGB+CCT
  • RT10: 4 Zone Single-Color, CCT, RGB, RGBW, or RGB+CCT
  • Output Signal: RF 2.4 GHz
  • Operating Range: Up to 30 m in barrier-free space
  • Power Supply: 3 VDC from two AAA batteries
  • Standby Time: Up to 1 year
  • Operating Temperature: -30 degrees Celsius to 55 degrees Celsius
  • Remote Dimensions: 53 x 122 x 17.5 mm
  • Warranty: 5 years

Box Content:

  • RT Controller
  • Wall Bracket
  • Mounting Screws
  • Double Sided Mounting Tape
  • User Manual/Datasheet
