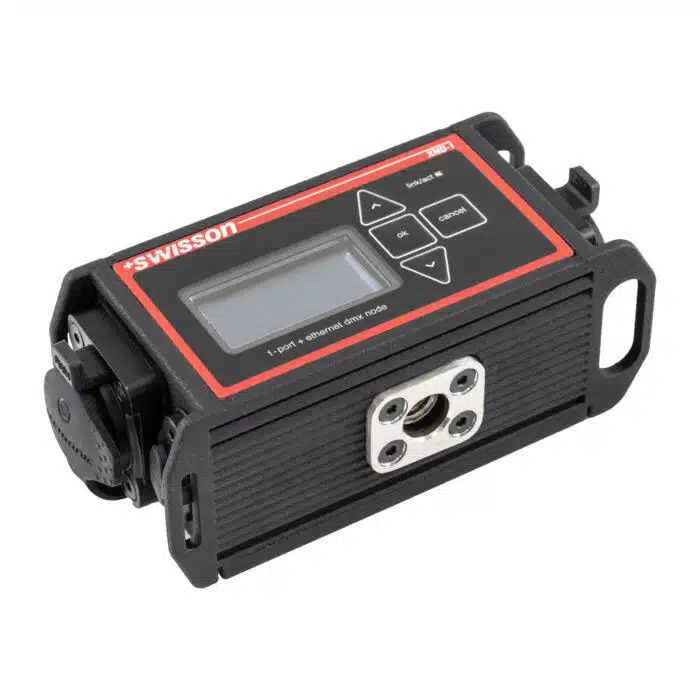

Swisson XND-1 Professional Art-Net and sACN to DMX/RDM Ethernet Node with PoE and IP65 Protection

The Swisson XND-1 is a compact Art-Net and sACN to DMX converter designed to distribute one DMX universe through a configurable DMX input or output port.

Using the secondary data link and a compatible Y-cable, the XND-1 can distribute two DMX universes through its single 5-pin XLR connector. Each resulting port can be configured independently as a DMX input or output.

The XND-1 supports Art-Net versions 1 through 4, sACN, DMX, and RDM. Its 128 x 64 pixel OLED display, onboard controls, DHCP capability, and browser-based interface simplify configuration, monitoring, and firmware updates. Power can be supplied through active PoE or USB-C, with automatic power-source switching when both are available.

Features:

  • Converts Art-Net and sACN network data to and from DMX
  • Distributes one DMX universe through a single 5-pin XLR port
  • Supports two DMX universes when used with the compatible Y-cable
  • Independently configurable DMX input and output operation
  • Art-Net 1 through 4 and sACN protocol support
  • RDM support for compatible lighting equipment
  • HTP and LTP signal merging
  • Broadcast, multicast, and unicast transmission options
  • Configurable DMX output timing for standard or legacy fixtures
  • 128 x 64 pixel OLED display with onboard menu controls
  • Integrated web interface for configuration, monitoring, and firmware updates
  • DHCP and static network configuration
  • Active PoE and USB-C power options
  • Automatic switching between available power sources
  • IP65-rated construction when used with properly rated cables or protective covers
  • User input locking for configuration protection

Note:

Designed for professional use and temporary outdoor operation. The Y-cable is required for two-universe operation.

Specifications:

  • DMX Universes: 1 standard or 2 with compatible Y-cable
  • DMX Connector: 5-pin XLR
  • Network Connector: RJ45
  • USB Connector: USB-C
  • Network Protocols: Art-Net 1 through 4 and sACN ANSI E1.31
  • DMX Standard: ANSI E1.11
  • RDM Standard: ANSI E1.20
  • Ethernet: 10BASE-T and 100BASE-TX with auto negotiation and auto MDI-X
  • PoE Standard: IEEE 802.3af Class 2
  • USB Input Voltage: 5 V DC
  • Protection Class: IP65
  • Operating Temperature: -20°C to 50°C
  • Dimensions: 110 x 50 x 45 mm
  • Weight: 250 g



Box Content:

  • Swisson XND-1
  • USB-C Cable
  • Y-Cable with XND-1 PRO-Set only
