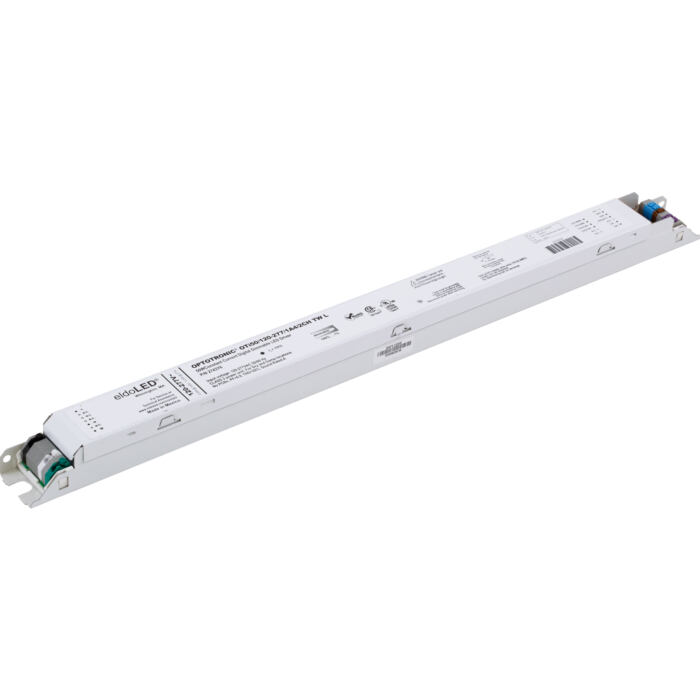

OPTOTRONIC OTi 50W 120-277 1A4 2CH TW L CC Tunable White Programmable Linear LED Driver (*2743Y6 / 58287)

Description

OPTOTRONIC OTi 50W 120-277 1A4 2CH TW L CC Tunable White Programmable Linear LED Driver (*2743Y6 / 58287)

OPTOTRONIC OTi 50W 120-277 indoor linear programmable LED drivers are exclusive to North America. All of these highly efficient constant current drivers dim to 1% with unique architectural grade features—such as Dim to Off, Vaux Output and Synchronized ON/OFF Timing—to meet the tough demands of your lighting projects.

Our 50W indoor linear LED drivers’ programmable output current range (400-1400mA)—coupled with their universal input voltage range (120-277V)—provides you with a highly efficient and flexible drive solution for indoor lighting.

Perfect for indirect and direct lighting, linear and recessed lighting applications.

Features:

• OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance of the driver
• Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Dim to off, Soft start
• Programming doesn’t require powering up or connecting the driver to AC line voltage
• Specification grade dimming down to true 1% or 10% on 0-10V dimmers.
• Slim form factors
• Input voltage: Universal 120-277Vac, 50/60Hz
• UL Class 2 output for safe operation

Specifications:

• Ambient Operating Temperature: -30ºC to 40ºC
• Case Temperature (Tc): 80ºC (max)*
• Max. Storage Temp: 70ºC
• Max. Relative Humidity (%): 95% non-condensing
• Transient Protection: NEMA SSL-1 2.5kV
• UL Rating: Dry & Damp
• UL File number: E333135
• EMI Compliance: FCC Part 15 Class A
• Sound Rating: Class A

Input:

• Input Voltage (VAC): 120V-277V (+/- 10%)
• Frequency Range (Hz): 50 – 60 Hz (+/- 10%)

Output:

• Output Current (mA): 400 – 1400 mA (Default: 400 mA/channel)
• Output Voltage (VDC): 20-48VDC
• Output Ripple Current: <25%
• Max. Output Power (W): 50W (per channel and combined)
• LED Power-Up Time: < 750ms
• Load Regulation: <5%
• Line Regulation: <5%
• Over Voltage Protection: Yes, non-latching
• Over Load Protection: Power fold back @ 52W
• Output Short-Circuit Protection: Yes, non-latching
• Over Temperature Protection: Yes, Foldback at 105ºC, Auto Recovery

Dimming:

Dimming Control: DALI
Dimming Range: 1-100%
Dimming Type: Analog, Log and Linear

Documents:

• DataSheet

SKU: *2743Y6 (58287)
