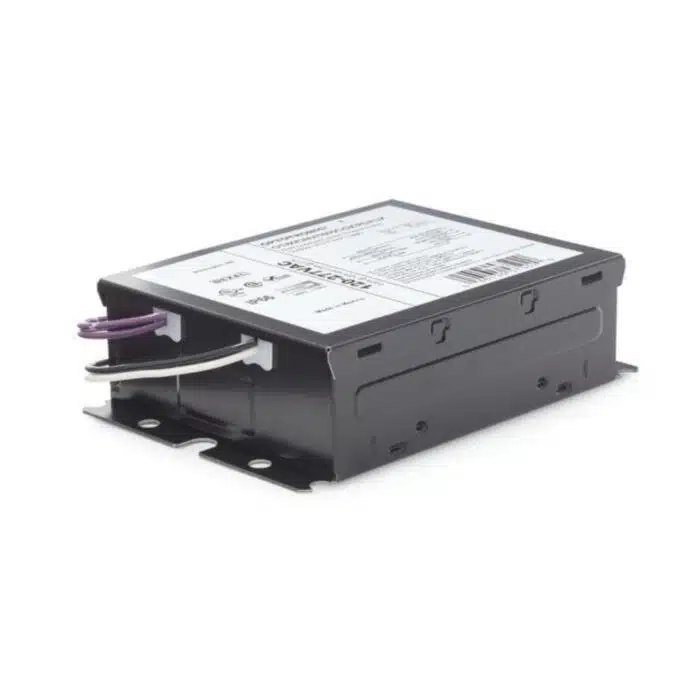

OPTOTRONIC OTi 60W UNV 1600C DALI P6 Constant Current Programmable Outdoor LED Driver (*2743XF / 57501)

Description

OPTOTRONIC OTi 60W UNV 1600C DALI P6 Constant Current Programmable Outdoor LED Driver (*2743XF / 57501)

OPTOTRONIC OTi 60W UNV programmable dimmable family consists of highly efficient, constant current LED drivers for outdoor applications. One click programming through the OPTOTRONIC Programmer allows OEMs to configure the output current with 1mA resolution. OEMs can customize this portfolio using the AstroDIM feature which is an autonomous dimming feature for night-time power reduction based on an internal timer that can be set for an entire year.

The outdoor family of drivers dim down to 10% with 0-10V, DALI.  These drivers enable direct integration and operation with standard dimmers and sensors, as well as energy and light management systems.

Features:

• OEM programmable with 1mA resolution to perfectly match LED load and maximize performance
• Specification grade dimming down to 10% on 0-10V, DALI control drivers.
• Integrated OEM programmable features include: AstroDIM, Constant lumen maintenance, LED thermal protection, AUX output
• Programming doesn’t require powering up or connecting the power supply to AC line voltage
• High level of line transient protection in outdoor applications (6kV)
• 4kV EFT Protection for industrial applications
• UL Damp Rated
• IP66 Rated
• UL Class P Listed

Specifications:

• Ambient Operating Temperature: -40ºC to 60ºC
• Max. Case Temperature (Tc): 80ºC*
• Max. Storage Temp: 70ºC
• Max. Relative Humidity (%): 95% non-condensing
• Transient Protection: ANSI C62.41 Cat.B 6.0kV
• IP Rating: IP66
• UL Rating: Dry & Damp, Type HL
• UL File number: E333135
• EMI Compliance: FCC Part 15 Class A
• Sound Rating: Class A

Input:

• Input Voltage (VAC): 120V-277V (+/- 10%)
• Frequency Range (Hz): 50 – 60 Hz (+/- 5%)

Output:

• Output Current (mA): 500 – 1600 mA (1mA step) (Default: 1050 mA)
• Output Voltage (VDC): 15-55 VDC
• Output Ripple Current: < 15% @ 1600mA
• Max. Output Power (W): 60W
• LED Power-Up Time: < 1sec
• Load Regulation: < 5%
• Line Regulation: < 5%
• Over Voltage Protection: Yes, non-latching
• Over Load Protection: Power fold back @ 61W
• Output Short-Circuit Protection: Yes, non-latching
• Over Temperature Protection: Foldback to 60% at 100ºC, Auto Recovery

Dimming:

• Dimming Control: DALI 2.0 Compatible, AstroDIM
• Dimming Range: 10-100% (50mA min)
• Dimming Type: Digital
• CAUTION: Two power supplies if dimming is connected to non-class 2 circuits.
