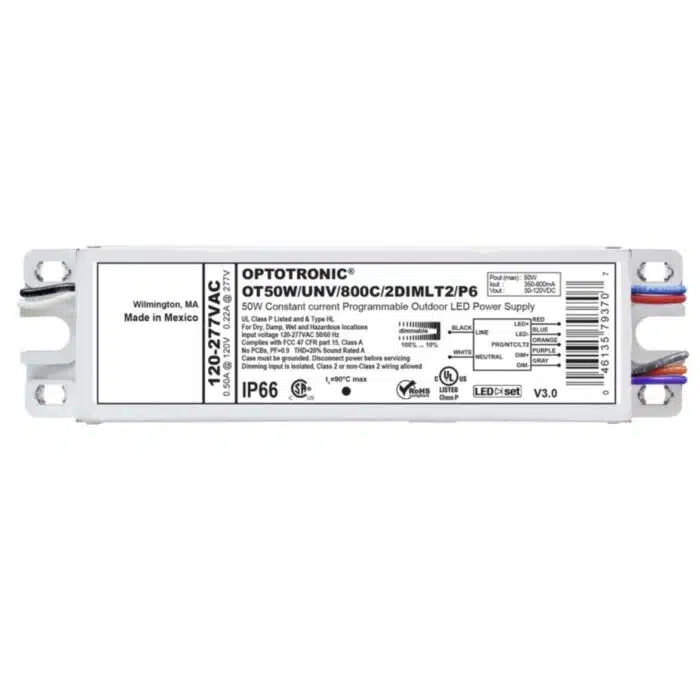

OPTOTRONIC OT 50W UNV 800C 2DIMLT2 P6 Constant Current Programmable Outdoor LED Driver (*2743YM / 79370)

Description

OPTOTRONIC OT 50W UNV 800C 2DIMLT2 P6 Constant Current Programmable Outdoor LED Driver (*2743YM / 79370)

OPTOTRONIC OT 50W UNV programmable dimmable family consists of highly efficient, constant current LED drivers for outdoor applications. One click programming through the OPTOTRONIC Programmer allows OEMs to configure the output current with 1mA resolution. OEMs can customize this portfolio using the AstroDIM feature which is an autonomous dimming feature for night-time power reduction based on an internal timer that can be set for an entire year.

The outdoor family of drivers dim down to 10% with 0-10V. These drivers enable direct integration and operation with standard dimmers and sensors, as well as energy and light management systems.

Features:

• OEM programmable with 1mA resolution to perfectly match LED load and maximize performance
• Integrated OEM programmable features include: AstroDIM, Constant lumen maintenance, LED thermal protection, AUX output
• Programming doesn’t require powering up or connecting the power supply to AC line voltage
• High level of line transient protection in outdoor applications (6kV)
• 4kV EFT Protection for industrial applications
• UL Damp Rated
• IP66 Rated
• UL Class P Listed

Specifications:

• Ambient Operating Temperature: -40ºC to 55ºC
• Max. Case Temperature (Tc): 88ºC*, 90ºC (max)
• Max. Storage Temp: 70ºC
• Max. Relative Humidity (%): 95% non-condensing
• Transient Protection: ANSI C62.41 Cat.B; 4kV Combination Wave; 6kV Ring Wave
• IP Rating: IP66
• UL Rating: Dry & Damp, Type HL
• UL File number: E333135
• EMI Compliance: FCC Part 15 Class A
• Sound Rating: Class A

Input:

• Input Voltage (VAC): 120V-277V (+/- 10%)
• Frequency Range (Hz): 50 – 60 Hz (+/- 5%)

Output:

• Output Current (mA): 350 – 800 mA (1mA step), (Default: 530 mA)
• Output Voltage (VDC): 30-120 VDC
• Output Ripple Current: < 25% @ 800mA
• Max. Output Power (W): 50W
• LED Power-Up Time: < 1sec
• Load Regulation: < 5%
• Line Regulation: < 5%
• Over Voltage Protection: Yes, non-latching
• Over Load Protection: Yes, current fold back @ 54W, non – latching
• Output Short-Circuit Protection: Yes, non-latching
• Over Temperature Protection: Yes, Foldback at 100°C, Auto Recovery

Dimming:

Dimming Control: 0 – 10V (Isolated), AstroDIM
Dimming Range: 10-100%
Dimming Type: Analog
Source/Sink Current: 0.9 mA
