Nicolaudie STICK-CW4 Wall Mount LED Lighting Controller, 36 Scenes, 1 Zone, 1024 DMX Channels

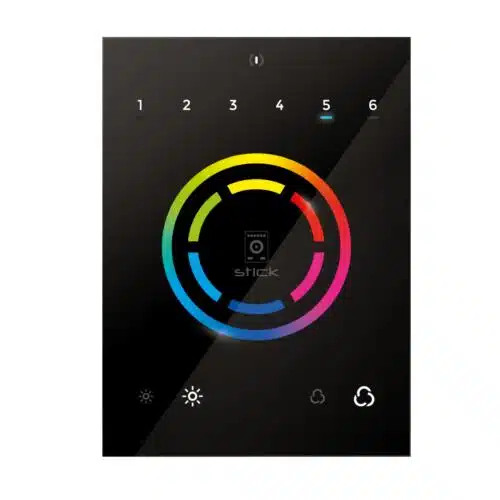

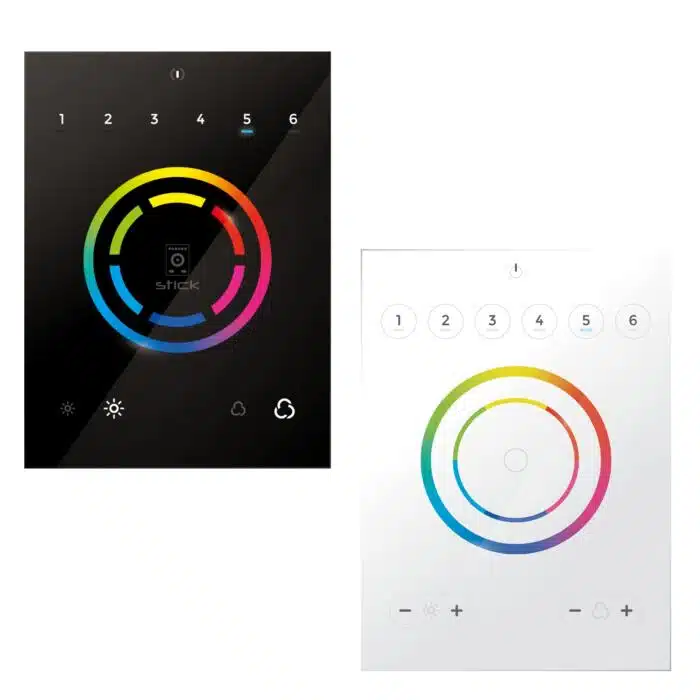

Nicolaudie STICK-CW4 Wall Mount Controller is a sleek, wall-mounted programmable DMX controller designed specifically for RGB and RGBW lighting applications. Built around an intuitive, touch-sensitive color wheel, the STICK-CW4 offers smooth, real-time control over lighting colors, intensity, and effects—all with the swipe of a finger. Its minimalist design blends seamlessly into modern environments, making it ideal for residential, hospitality, and architectural lighting installations.

Programming the controller is flexible and user-friendly. It can be configured via USB or WiFi from a PC or Mac using ESA2 or ESA Pro 2 software. Additionally, the Arcolis mobile app enables on-site wireless programming via WiFi, giving users maximum convenience when setting up or updating scenes.

The STICK-CW4 supports up to 36 stored scenes, which can be easily accessed through six touch-sensitive scene buttons. A central button on the color wheel allows for scene navigation or resetting color transitions, ensuring complete control is always at your fingertips.

Features:

  • DMX stand alone controller
  • Compatible with any DMX fixture or DMX LED driver
  • Ready-to-use (pre-loaded with 8 scenes and 170 RGB fixtures)
  • Sleek, black glass design which sits 11mm from the wall
  • Color palette (can also be used for scene selection)
  • 12 touch-sensitive buttons. No mechanical parts
  • Touch-sensitive wheel allows for accurate color selection
  • Built-in flash memory for storing programs
  • Up to 36 dynamic or static scenes
  • 1024 DMX channels. Control 340 RGB fixtures
  • Clock and calendar with Sunrise/Sunset triggering
  • Wi-Fi network communication. Control lighting remotely
  • USB connectivity for programming and control
  • 8 dry contact trigger ports
  • OEM customization of the color palette and logo
  • Windows/Mac software to set dynamic colors/effects

Technical Specifications:

  • Input Power: 5-15V DC 0.6A
  • Output Protocol: DMX512 (x2)
  • Programmability: PC, Mac

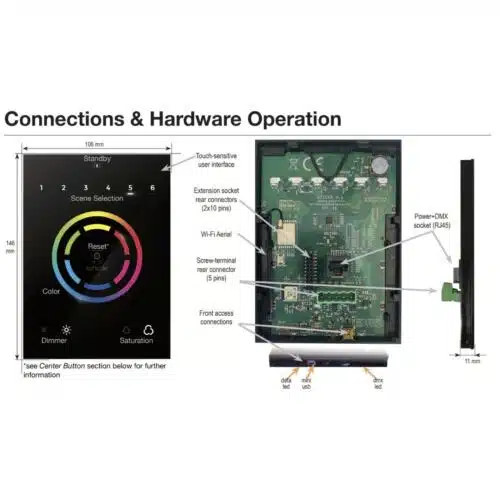

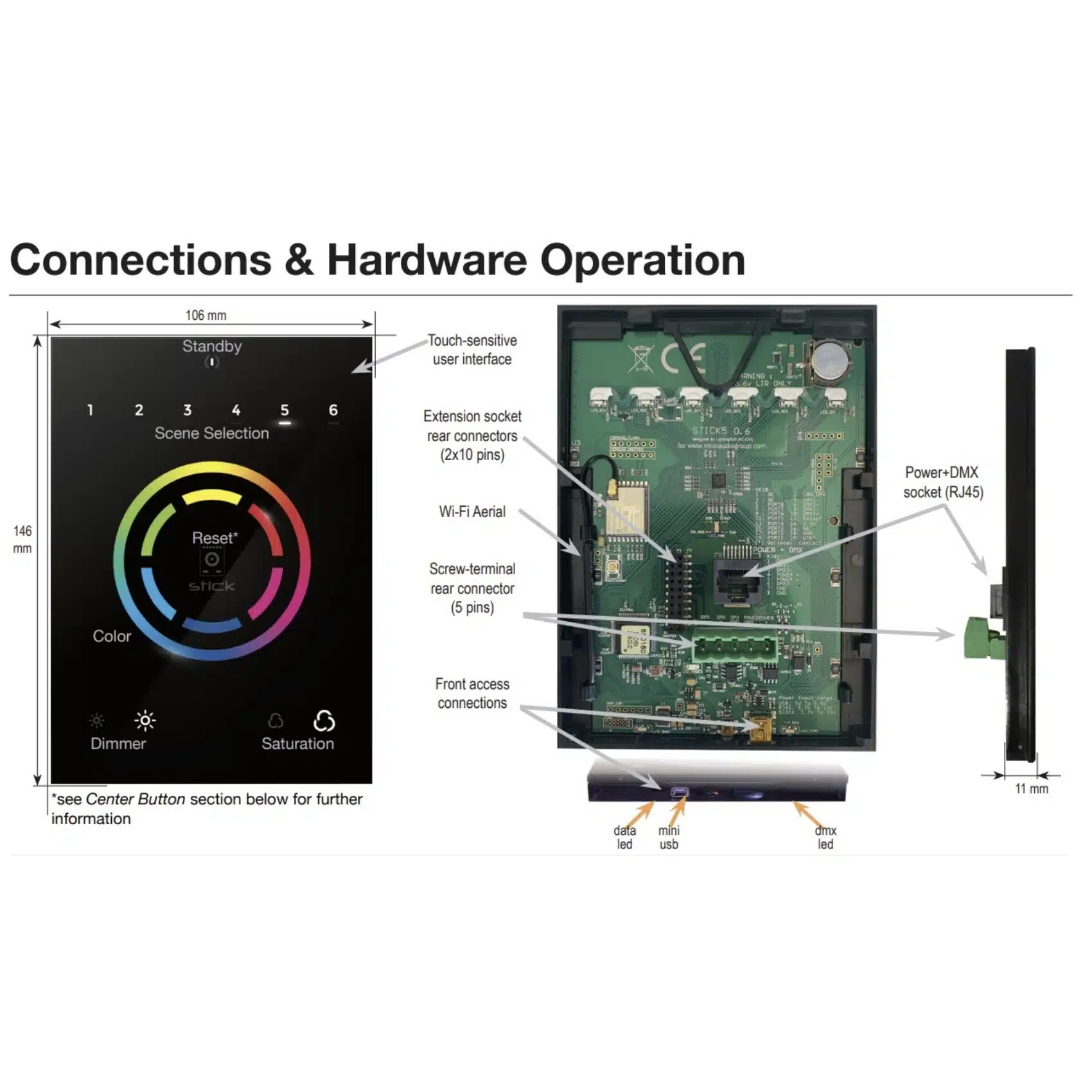

  • Connections: USB, 8 dry contact ports, open drain ouput (for relay)
  • Memory: In-built flash
  • Temperature: -10 °C – 45 °C
  • Battery: LIR1220
  • Mounting: Single or double-gang wall socket
  • Dimensions: 146x106x11mm
  • Weight: 200g
  • Standards: EC, EMC, ROHS

In The Box:

  • STICK-CW4 interface
  • USB cable
