Description

Nicolaudie STICK-DE3 Wall Mount LED Lighting Controller, 500 Scenes, 10 Zones, 1024 DMX Channels

The Nicolaudie STICK-DE3 Wall Mount Controller is a powerful and intuitive DMX lighting controller designed for architectural, commercial, hospitality, entertainment, and residential lighting applications where advanced control and ease of use are required.

The STICK-DE3 features a graphical color display that allows users to view scene images, selected zones, scene names, and controller functions directly from the wall-mounted interface. Its touch-sensitive wheel and buttons provide quick access to dimmer, color, speed, and scene controls without requiring a computer during normal operation.

Ten independent zones allow multiple lighting areas to be controlled from a single interface, with up to 10 scenes running simultaneously. The controller stores up to 500 scenes and supports 1024 DMX channels.

For programming and system integration, the STICK-DE3 supports USB and Ethernet connectivity, RS232, external port triggering, clock and calendar scheduling, and astronomical triggering. The controller can be programmed using Nicolaudie ESA2, ESA Pro, or ESA Pro 2 software and also supports remote control applications.

Key Features:

  • New glass design
  • Graphical color display
  • Touch-sensitive buttons
  • Touch-sensitive control wheel
  • Color, dimmer, speed, and scene control
  • RGB and white color control
  • Multi-zone microSD memory
  • 500 scenes
  • 10 independent zones
  • Run up to 10 scenes simultaneously
  • Up to 50 static or dynamic scenes per zone
  • 1024 DMX channels
  • USB and Ethernet connectivity
  • RS232 integration
  • 8 external port triggers
  • Clock and calendar scheduling
  • 100 clock/calendar triggers plus astronomical triggering
  • Network communication
  • Infrared support
  • Stand-alone operation
  • Catalog of interface designs
  • OEM customization capability
  • Windows and Mac software support
  • iPhone, iPad, and Android remote control support

Technical Specifications:

  • DMX Channels: 1024
  • Number of Scenes: 500
  • Number of Zones: 10
  • Memory: microSD card
  • Memory Capacity: SD card limit
  • Power Voltage: 5–6V DC

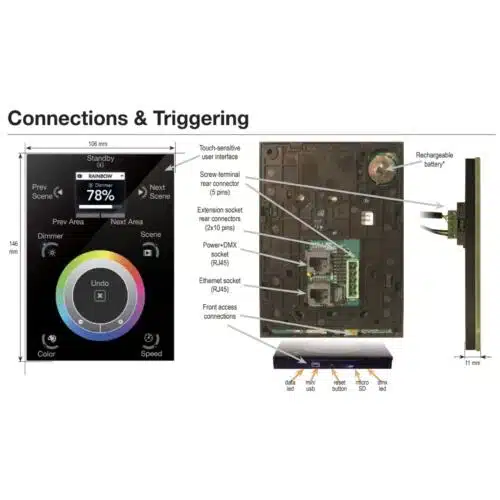

  • Power Connection: Screw terminal or RJ45
  • Power Adapter: Optional, not included – POWER4M available separately
  • USB Connection: Yes
  • Ethernet Connection: Yes
  • RS232: Yes
  • Live Control: Color / Dimmer / Speed
  • Touch-Sensitive Controls: 10 buttons + touch wheel
  • Port Triggers: 8
  • Clock / Calendar Triggers: 100 + astronomical triggering
  • Software – ESA2: PC / Mac
  • Software – ESA Pro: PC
  • Software – ESA Pro 2: PC / Mac
  • Remote Control Apps: Supported
  • Stand-Alone Operation: Yes
  • Dimensions: 106 × 146 × 10 mm
  • Weight: 250 g

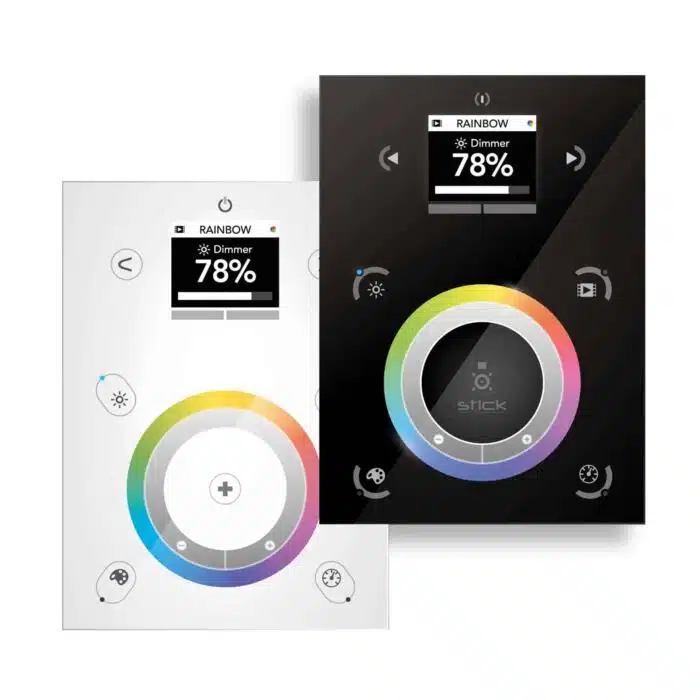

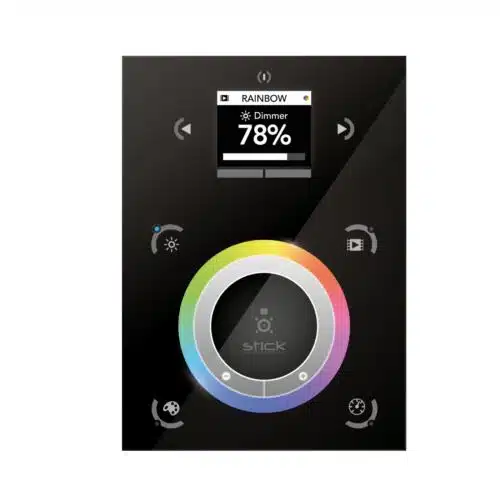

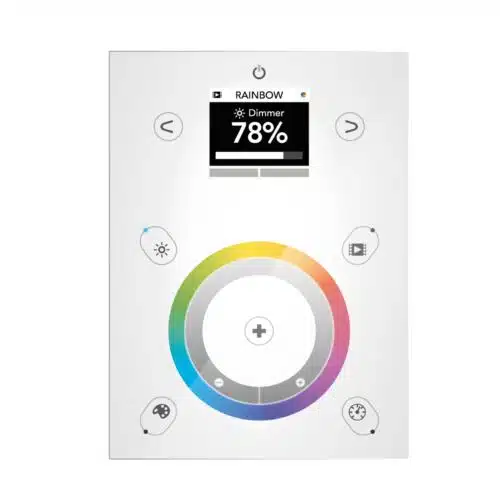

  • Available Colors: White or Black

Optional Accessories:

POWER4M – AC/DC Power Adapter
RJ2BLOCK – RJ45 to Board Block Adapter

In The Box:

  • STICK-DE3 Controller
  • USB cable
  • Micro SD card

Power adapter is optional and is not included with the STICK-DE3.

Documents:

SKU: STICK-DE3
