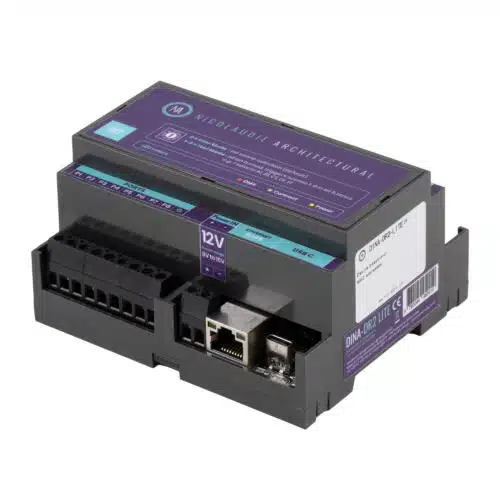

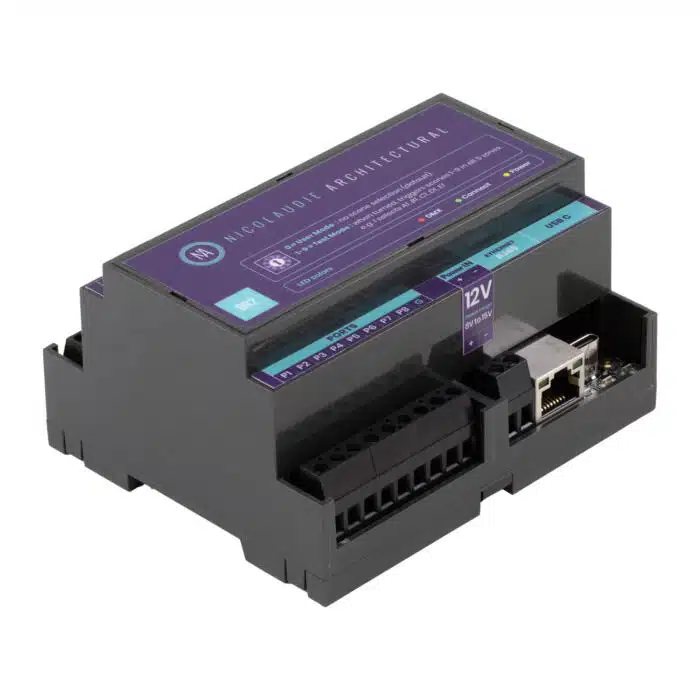

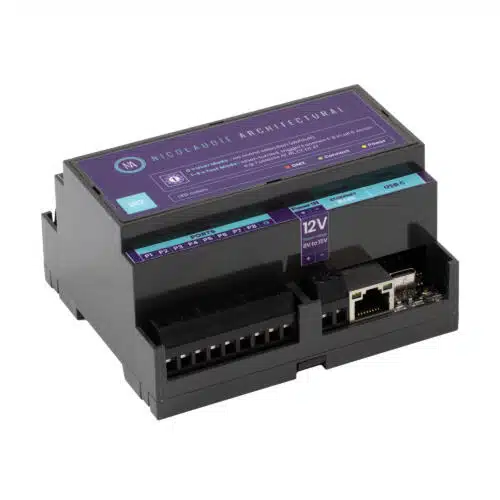

Nicolaudie Architectural DINA-DR2/LITE DIN Rail Mounted DMX Lighting Controller

The DINA-DR2/LITE is a DIN rail mounted DMX lighting controller designed for mid-range architectural lighting installations. It provides stand-alone scene playback, DMX/RDM output, and programming control through desktop and mobile platforms.

Built on Nicolaudie Architectural’s latest generation controller platform, the DINA-DR2/LITE supports lighting levels, color control, and dynamic effects for professional installations. The controller is delivered with 1024 DMX channels for DINA-DR2 or 512 DMX channels for DINA-DR2 LITE, with upgrade capability up to 1536 channels using a third DMX universe.

The unit supports PC, Mac, Android, iPad, and iPhone programming, with USB-C and Ethernet connectivity for setup and control. Stand-alone operation allows up to 99 scenes across 5 areas or zones, while dry contact trigger inputs and mobile remote options provide flexible scene activation for installed systems.

Features:

  • DIN rail mounted DMX stand-alone controller
  • Up to 3 DMX512 universes for 1536 channels
  • RDM compatible
  • USB-C and Ethernet connectivity for programming and control
  • Stand-alone mode with 99 scenes
  • Scene playback across 5 areas or zones
  • 8 plus 3 dry contact trigger ports
  • microSD storage support
  • Rotary switch for test scene selection during installation
  • Windows and Mac software support for dynamic colors and effects
  • iPhone, iPad, and Android remote and programming app support
  • SUT Technology support through online upgrade
  • LS cloud compatibility

Note:

  • DINA-DR2 LITE includes 512 DMX channels and optional LS cloud compatibility.

Specifications:

  • Product Type: DIN rail mounted DMX lighting controller
  • Model: DINA-DR2/LITE
  • Input Power: 12V DC
  • Power Range: 8V to 15V DC
  • Output Protocol: DMX512
  • DMX Universes: Up to 3
  • Maximum Channels: 1536
  • Default Channels: 1024 for DINA-DR2, 512 for DINA-DR2 LITE
  • Programmability: PC, Mac, Android, iOS
  • Connectivity: USB-C, Ethernet
  • Trigger Ports: 8 plus 3 dry contact ports
  • Memory: SD card
  • microSD Capacity: Up to 32GB
  • Battery Holder: LIR2032 3.6V rechargeable battery holder
  • Environment Rating: IP20
  • Operating Temperature: 0°C to 50°C
  • Controls: Rotary switch
  • Display: 1-digit display
  • Dimensions: 160 x 91 x 62 mm
  • Weight: 317 g
  • OS Requirements: Mac OS X 10.8 to 10.14, Windows 7, Windows 8, Windows 10
  • Standards: CE, ETL, Low voltage, EMC, RoHS

Box Content:

  • DINA-DR2 LITE
  • USB Type-A to USB-C Cable
  • Sticker
  • Instructions
