Neutrik NC4FP-1 4 Pin XLR Female Receptacle, Solder Contacts

4 Pin XLR female receptacle, solder contacts, nickel housing, silver contacts. Smallest available traditional-style metal panel mount connector with large solder cups for easy hard wiring.

Features:

  • Smallest available hard wiring receptacles with large solder cups
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
  • Short female receptacle

Technical

Product:
  • Title: NC4FP-1
  • Connection Type: XLR
  • Gender: Female
Electrical:
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 5 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 10 A
  • Rated voltage: < 50 V

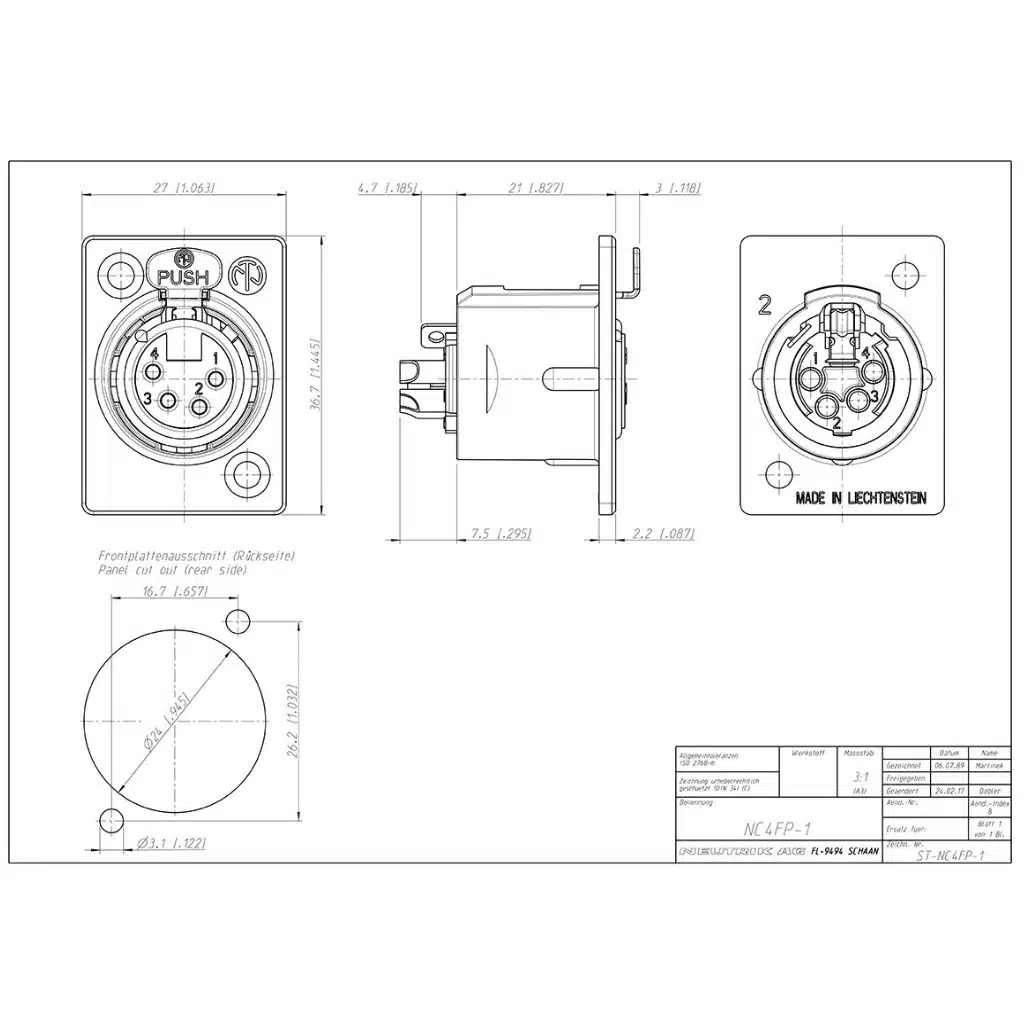

Mechanical:
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.5 mm²
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Mounting direction: Front mounting
  • Chassis shape: P
Material:
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

Environmental Specifications:

To ensure safety and reliability, this product meets various industry standards and environmental requirements.

  • Flammability: Rated UL 94 HB, ensuring basic flame resistance for safe operation.
  • Standard Compliance: Fully adheres to IEC 61076-2-103, guaranteeing compatibility and quality assurance in electrical connections.
  • Protection Class: Designed with an IP40 rating, providing adequate protection against solid objects larger than 1mm, making it suitable for indoor use.
  • Solderability: Complies with IEC 68-2-20, which means it undergoes rigorous testing to ensure strong and reliable solder joints for long-term durability.
  • Temperature Range: Built to withstand temperatures from -30°C to +80°C, making it suitable for a variety of environments while maintaining stable performance.

By meeting these strict environmental and safety standards, this product ensures dependability and longevity, making it a trustworthy choice for various applications.
