Description

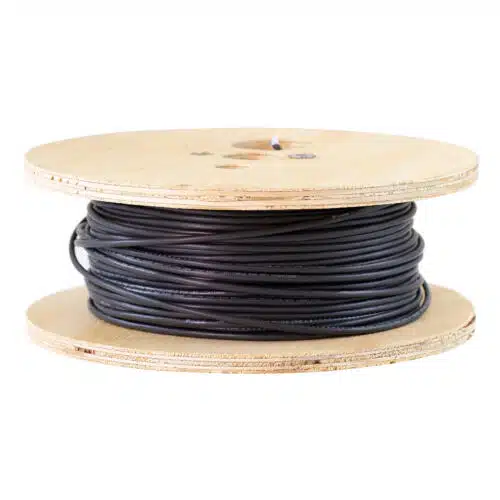

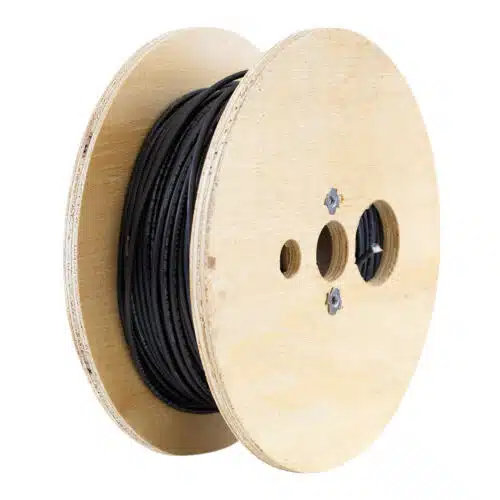

ProDMX-CAB 2 Pair (4 Conductors + Drain Wire) 22 AWG Shielded DMX Cable

The SIRS-E® ProDMX-CAB & ProDMX-CAB-UL DMX512 2 Pair Cable is a thin AWG shielded DMX cable utilized for lighting control. This 22-AWG stranded bare copper conductor cable provides the ideal conductivity needed for DMX512 transmission. It is available in two options: Plenum UL Listed and Waterproof IP65. Made in the USA with high-quality materials, this is a cable you can trust for your DMX applications.

Applications

  • DMX512 Lighting Control
  • Temporary or Permanent Installations
  • Stage Applications



Main Features

  • DMX512 and AES/EBU Digital Cable
  • 2 Pair (4 Conductors + Drain Wire)
  • Low-Capacitance Data Pairs
  • Shielded Cable
  • Drain Wire for Easy Shield Termination
  • Ultra-Thin overall diameter
  • For use with 3 or 5 Pin XLR Connector
  • Plenum UL Listed (Plenum Option)
  • Sun Resistance and Suitable for Wet Locations (IP65 Option)
  • Available Per Foot or By the Spool
  • Made in the USA



Technical Specifications

DMX-4CSP-2260UL – Plenum UL Listed:

  • 120 Ohms Nominal Impedance
  • 4 Conductors, 22 AWG 7 Strands
  • 1 Drain Wire, 24 AWG 7 Strands
  • Bare Copper
  • 0.175″ Outside Diameter
  • Aluminum Mylar Foil Shielding
  • Black PVC Jacket Multi-Conductor
  • Jacket Rating:  Plenum (CMP)
  • UL Listed Certified
  • 12 lbs / 500 Ft Spool



DMX-4CSNP-2265 – Waterproof IP65:

  • 120 Ohms Nominal Impedance
  • 4 Conductors, 22 AWG 7 Strands
  • 1 Drain Wire, 24 AWG 7 Strands
  • Bare Copper
  • 0.169” Outside Diameter
  • Aluminum Mylar Foil Shielding
  • Black PVC Jacket Multi-Conductor
  • Non-Polyester Woven Water Blocking Tape for Waterproofing IP65
  • 14 lbs / 500 Ft Spool



Available Versions

  • Plenum UL Listed
  • Waterproof IP65
  • Per Foot
  • Spool



Quick Links:
ProDMX-CAB Brochure



Datasheet:
ProDMX-CAB Datasheet Waterproof IP65 DMX Cable
ProDMX-CAB Datasheet Plenum UL DMX Cable

SKU# DMX-4CSP-2260UL, DMX-4CSNP-2265
