Description

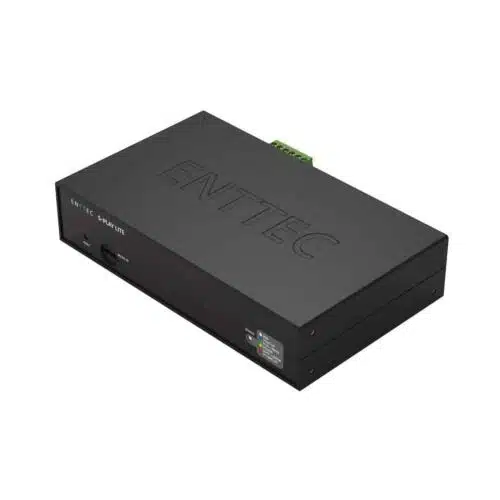

ENTTEC’s S-PLAY LITE DMX Show Recorder & Playback Controller

ENTTEC’s S-PLAY LITE is a revolutionary smart DMX show recorder & playback controller for hassle-free, professional light shows and automated projects.

Engineered for projects that require precise automation, the S-PLAY LITE smart light show controller is your complete solution for the creation, recording, scheduling, triggering, and activation of not only light shows but video, machinery, and much more. Playback multiple shows simultaneously and install it almost anywhere with flexible mounting options.

In simple terms, think of it as being like a scene & animated effect creation engine, a 16-universe DMX show recorder & playback engine and host for control interfaces that can send multiple AV specific protocols all rolled into one.

You can even create your own custom web interfaces in order to provide your end users with as much or as little control as they need.

With a built-in effects generator and intuitive controls to record, edit, schedule and play scenes, you don’t have to be an experienced lighting designer or systems integrator to conjure up amazing shows using our smart light show controller, but your audience will think you are.

Features

  • Supports recording and playback of up to 16 Universes of Art-Net and sACN
  • Equipped with two XLR DMX ports for versatile recording and playback
  • Conveniently records cues from DMX sources with a built-in DMX value monitor
  • Enables the creation of gradient Effect Cues using the in-built effect generator
  • Features an intuitive web interface for effortless configuration
  • Allows users to craft up to 100 Playlists, comprising Static, Dynamic, and Effect Cues
  • Sends up to 150 automated Events through RS232, Art-Net, sACN, DMX, Relays, UDP & OSC
  • Supports up to 150 Remote triggers via RS232, ArtNet, sACN, DMX, Digital Inputs, UDP & OSC
  • Internal memory supports over 20 hours of 16 universe recording at 40FPS (expandable with an external Micro SD card)
  • Enables the creation of custom user-facing web interfaces.
  • Allows for scheduling of playlists

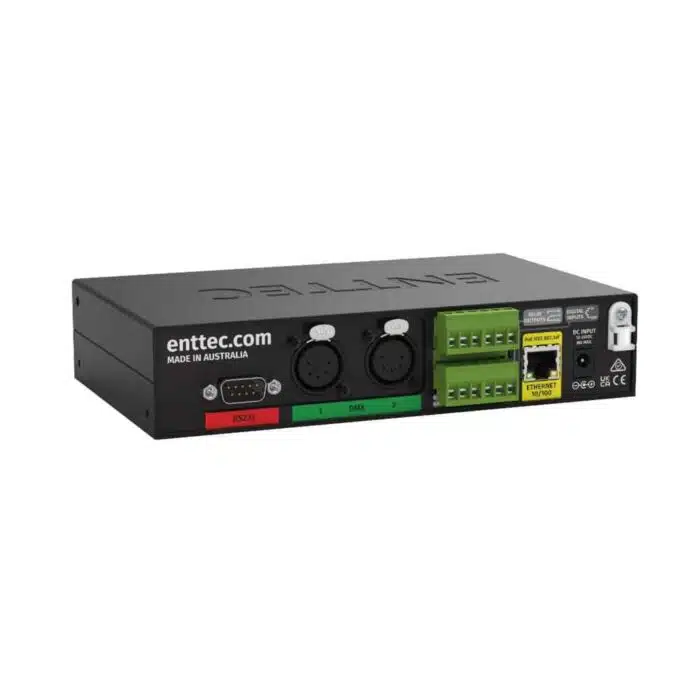

Hardware Specifications

  • Input Voltage: 12V DC to 24V DC
  • Power Input:  DC jack (12V PSU & international plugs included)
  • Max Power Draw: 8W
  • Ethernet Port / PoE: RJ45 / PoE IEEE 802.3af
  • DMX Port: 2 x 5-pin XLR (female)
  • Digital Input: 4 digital inputs + 1 GND + 1 5V (6-pin screw terminal)
  • Relay: 2 x relay 6-pin screw terminal (max limits, 50V DC or 60W)
  • Internal Show Storage Capacity: 8GB (~20 hours of 16 universes at 40fps)
  • Expandable Storage / External Memory: Micro SD card
  • LED Indicators: Yes
  • Factory Reset: Web interface
  • Mounting: Rack, surface & TS35 DIN rail mountable (ears, clips & screws included)
  • IP Rating: IP20
  • Environmental Operating Temperature: 0°C to 50°C / 32°F to 122°F
  • Environmental Operating Humidity: 0 to 95% (non-condensing)
  • Cooling Method: Convection
  • Body Material: ABS plastic & anodised aluminium
  • Unit Dimensions: 7.9″ x 4.7″ x 1.7″
  • Unit Weight: 1.04 lbs
  • Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
  • Warranty: 3-year return to base manufacturer warranty

Software Specifications

  • DMX Universe Playback: 2U (1024 channels of USITT DMX512-A)
  • Art-Net / sACN Universe Playback: 16U (8,192 channels)
  • Max Refresh Rate (FPS): Art-Net & sACN: 60 / USITT DMX512-A: 40
  • Max Playlist Count: 100
  • Max Cue Track Per Playlist: 4
  • Max Cues (including Static, Dynamic and Effect): 100
  • Max Triggers: 150
  • Max Events: 150
  • Max Custom Interface: 5
  • OSC API: Yes
  • HTTP API: Yes
  • Scheduler: Yes
  • Remote Access: No
  • Multi-Sync: No

Box Contents

  • S-PLAY LITE DMX Show Recorder & Playback Controller
  • 2m CAT5 Cable
  • Rack, Surface/Din Mount Ears + Din Clips + Screws
  • 12V PSU & International Plugs

Downloadable Documentation:

SKU# 70094
