Description

Condition: Open Box

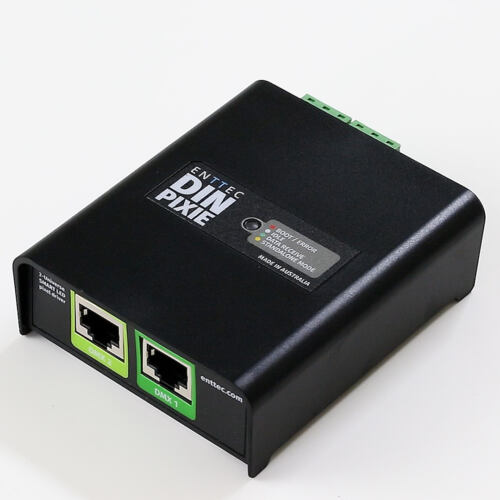

Enttec Din Pixie 73539, 2 Universe DMX LED Pixel Controller

2-Universe DMX to SPI pixel converter & standalone player.  A smart, cost-effective lighting control solution, the DIN Pixie is a compact, DIN-rail mountable, DMX to LED pixel protocol converter engineered to take any architectural, commercial, or entertainment project to the next level.

Main Features

  • Convert 2 DMX universes of DMX512 to Pixel Strip/Dots control protocols.
  • Configurable DMX starting address and pixel grouping function to reduce control channel requirements.
  • Standalone show playback using inbuilt flash memory (4000 frames [~100 seconds]).
  • Option to play a show on DMX loss or blackout output.
  • Support for RGB and RGBW pixel strips and dots.
  • Wide (5-48VDC) operating voltage – power from the same source as your pixels.
  • All ports feature ESD surge protection and resettable fuses to block external faults & electrical noise propagation through control infrastructure.
  • Power and output status LED indicators.
  • Configurable and updatable via USB.
  • DMX input on RJ45 connectors. (ANSI E1.27-2).
  • Robust USB type-B connector.
  • Pluggable screw terminal output connectors.
  • Test output sequences via PRO-MANAGER (no external data source required).
  • Widely compatible FTDI driver USB support.
  • Backward compatible with the ENTTEC Pixie Driver API for USB -> SPI control.

Technical Specifications

  • Connectors:
    • 1* USB 2.0 Type-B Input
    • 2* DMX Input (RJ45 port)
    • 2* SPI Output (3 Pin Phoenix)
  • RJ45 Pin for DMX Input
    • Pin 1: Data +
    • Pin 2: Data –
    • Pin 7/8: Ground
  • IP Rating: IP20
  • Input Protocol: USITT DMX512-A
  • Data Output Type: SPI (Check Enttec’s website for all supported protocols)
  • Maximum Output Channels: 2 Universes (1024ch), duplicated on both ports
  • output refresh rate: 40FPS
  • Body Material: ABS Plastic
  • Mounting Option: DIN
  • Unit Weight: 95 g / 3.3 oz
  • Unit Dimensions (L x W x H): 66 x 3.07 x 1.22 in
  • Shipping Weight: 0 oz
  • Shipping Dimensions (L x W x H): 5 x 5.7 x 1.7 in
  • Warranty: 3 Years

Box Content

  • Enttec Din Pixie 73539

Documents



Condition: Open Box
