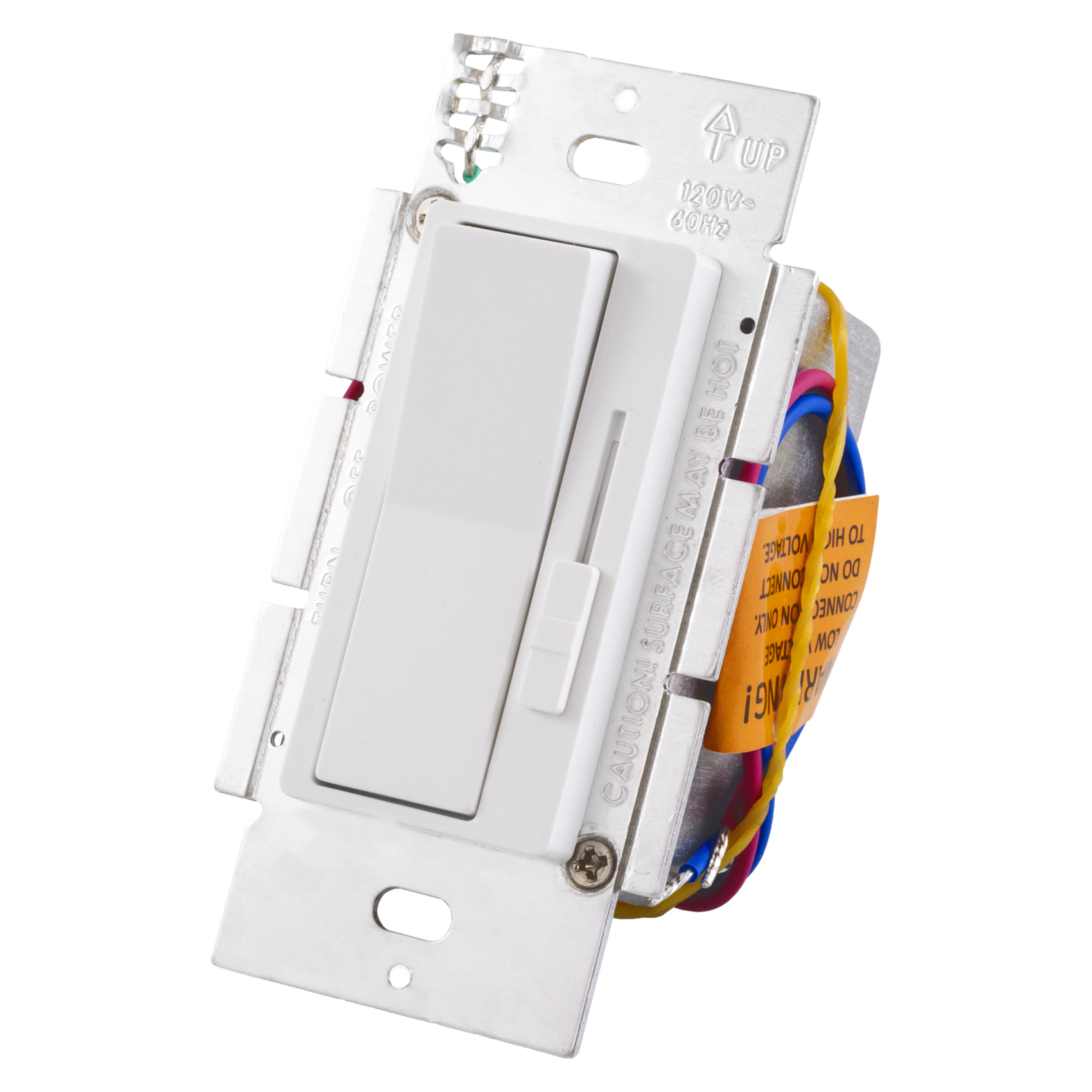

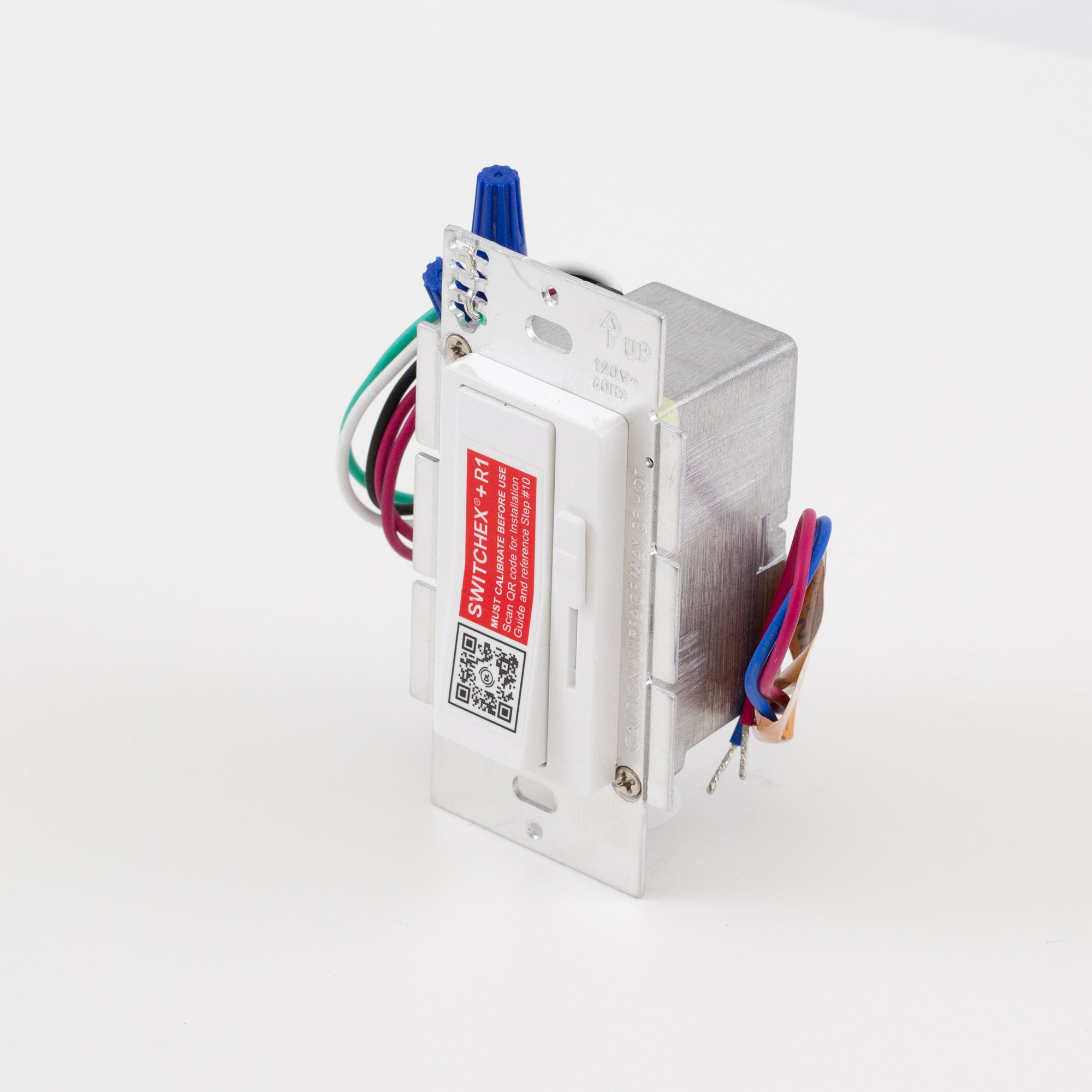

diodeLED SWITCHEX®+ R1 Driver & Dimmer Switch, White

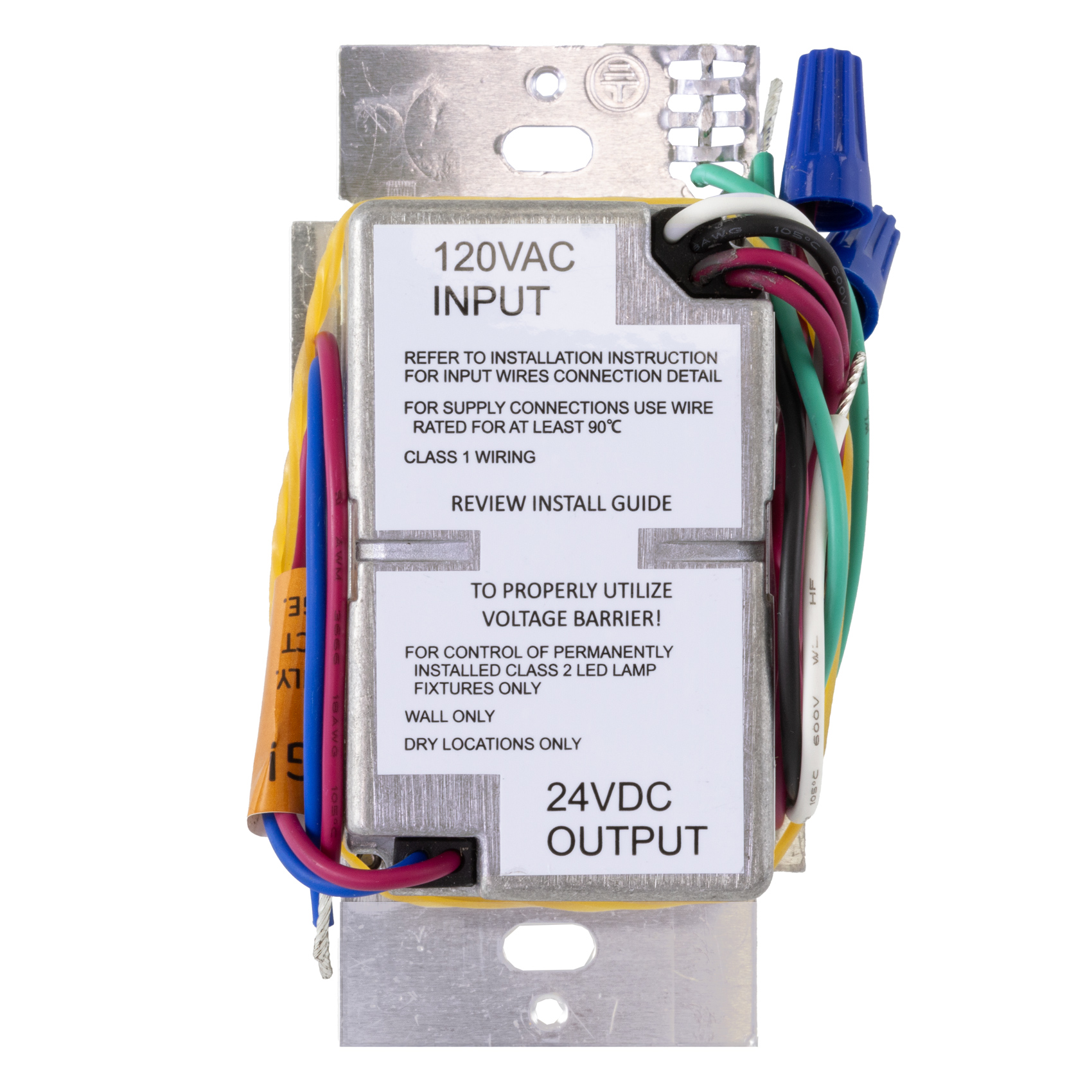

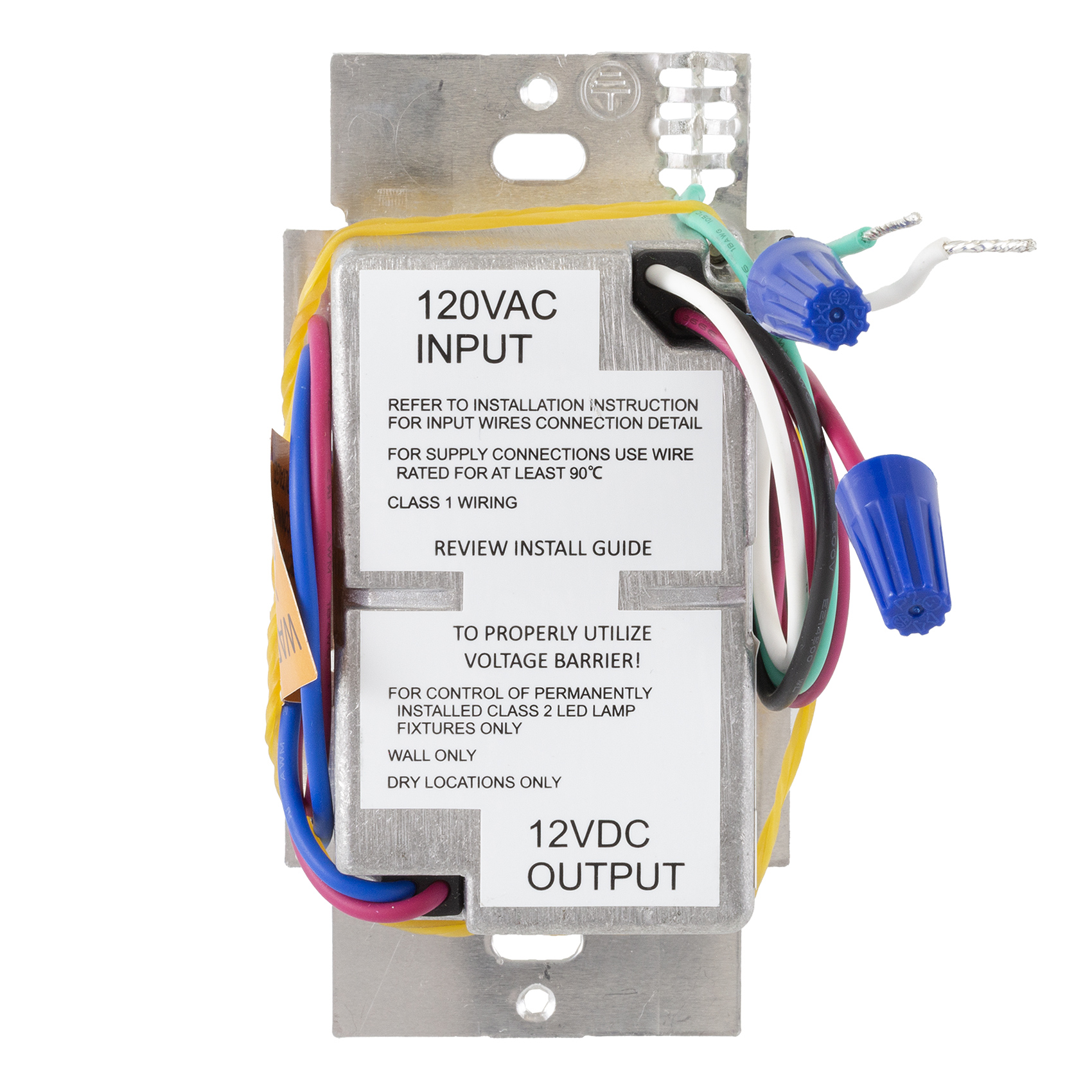

The driver & dimmer swith is a patented innovation that seamlessly merges a low-voltage power supply with a dimmer switch into one compact solution. Engineered for efficiency and simplicity, it accepts 120VAC and converts it to low-voltage DC, either 12VDC or 24VDC, ready to install within a standard electrical gang box. Compatible with industry-standard colors and wall-trim plates (not included).

Comes standard with White Faceplate.  Optional color faceplates available with additional charge.

Product Description:

Designed for exceptional dimming performance, the SWITCHEX®+ R1 features advanced load-sensing auto-trim technology, ensuring smooth and precise control. Available in power options up to 96W, this versatile device is the ideal time-saving solution for modern LED applications, offering both efficiency and reliability.

What truly sets SWITCHEX®+ R1 apart is its quick and hassle-free installation—complete in under 10 minutes within a single gang box, making it perfect for both professionals and DIY enthusiasts. Furthermore, this space-efficient and time-saving device is UL Listed, providing top-tier safety and long-lasting reliability.

More than just a lighting component, the SWITCHEX®+ R1 represents a commitment to quality, efficiency, and innovation—a testament to diodeLED’s dedication to delivering cutting-edge LED solutions.



Features:

  • Patented technology for maximum performance and dimming range (100%-1%)
  • UL Listed for US and Canadian installations
  • Versatile for both single-pole and 3-way applications, effortlessly working in conjunction with a mechanical switch to provide flexible and convenient lighting control options.
  • Load sensing auto-trim for optimal dimming
  • Fully compatible with industry-standard colors and trim plates, ensuring seamless integration and a polished, professional finish for any installation.
  • Title 24 – Can be used to comply with Title 24 Part 6 high-efficacy LED requirements. JA8-2016-E
  • 5 Year Warranty

In The Box:

  • diodeLED SWITCHEX®+ R1 Driver & Dimmer Switch with White Faceplate
  • Voltage Partition
  • (7) Twisted Wire Connectors
  • (2) Mounting Screws
  • Installation Guide
