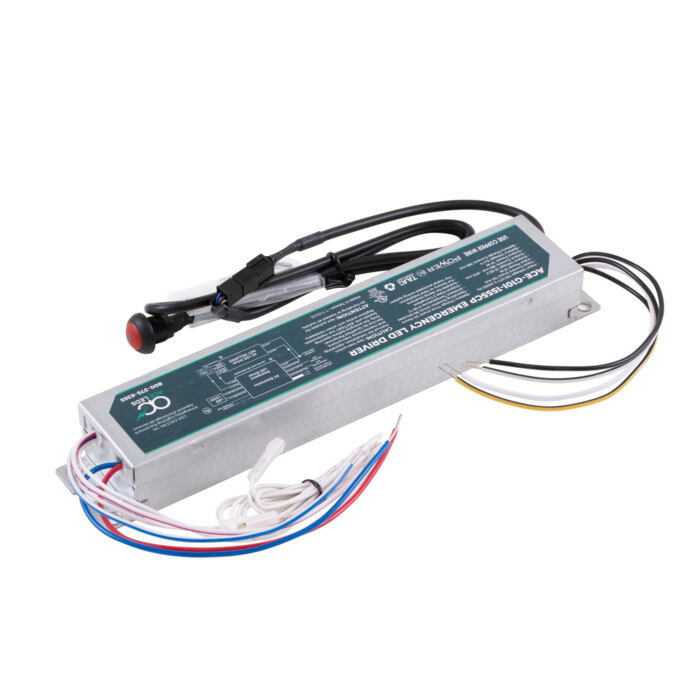

ACE-C101-155SCP Emergency LED Driver 120-277V | 90-Minute Battery Backup | 8.5-55V Output | UL Listed

Description

ACE-C101-155SCP Emergency LED Driver 120-277V | 90-Minute Battery Backup | 8.5-55V Output | UL Listed

The ACE-G10I-1555CP Emergency LED Driver provides dependable emergency backup operation for compatible LED fixtures. It delivers constant 10W emergency output for 90 minutes using an integrated LiFePO4 battery system.

This emergency LED driver allows the same LED fixture to operate in both normal and emergency modes. During normal operation, the unit monitors AC power and maintains battery charging. When normal power is lost, it automatically switches to emergency mode and powers the connected LED array or module.

Built with a universal 120-277VAC input, self-sensing emergency output, and integrated protection features, the ACE-G10I-1555CP is designed for reliable use in commercial lighting applications. Its compact metal enclosure, illuminated test switch, and status indicator support straightforward installation, testing, and maintenance.

Features:

• Constant 10W emergency output
• 90-minute emergency operation
• Universal 120-277VAC input
• Self-sensing 15-55VDC emergency output range
• Integrated LiFePO4 battery
• High-efficiency battery charger and power converter circuitry
• Automatic transfer from normal mode to emergency mode
• Compatible with switched and unswitched fixture applications
• Miniature illuminated test switch and status indicator
• Input surge protection
• Output short-circuit, open-circuit, and over-voltage protection
• Over-temperature protection
• Suitable for indoor and damp locations
• UL Listed for field and factory installation
• RoHS compliant

Specifications:

• Model: ACE-G10I-1555CP
• Product Type: Emergency LED Driver
• Input Voltage: 120-277 VAC
• Input Frequency: 50/60Hz
• Input Power: 4W
• Input Current: 60 mA Max
• Emergency Output Power: 10W Constant
• Emergency Output Voltage: 15-55 VDC
• Emergency Output Current Range: 180-660 mA
• Emergency Operating Time: 90 Minutes
• Battery Type: LiFePO4
• Battery Voltage: 6.4V
• Battery Charge Time: 24 Hours
• Battery Charge Current: 185 mA
• Surge Protection: 3 kVp
• Maximum AC Driver Output Current: 5A
• Ambient Operating Temperature: 0°C to 55°C
• Maximum Case Temperature: 66°C
• Enclosure Rating: IP30
• Dimensions: 9.5 in L x 1.7 in W x 1.2 in H
• Weight: 4 lb
• Certifications: UL and cUL Listed UL924
• Compliance: UL1310 Class 2, CEC Title 20, FCC, RoHS

Box Content:

• ACE-G10I-1555CP Emergency LED Driver
• Miniature Illuminated Test Switch
• LED Status Indicator
• Battery Connector
• Installation Hardware

Documents:

• Datasheet
• Installation Instructions

SKU# ACE-G10I-1555CP
