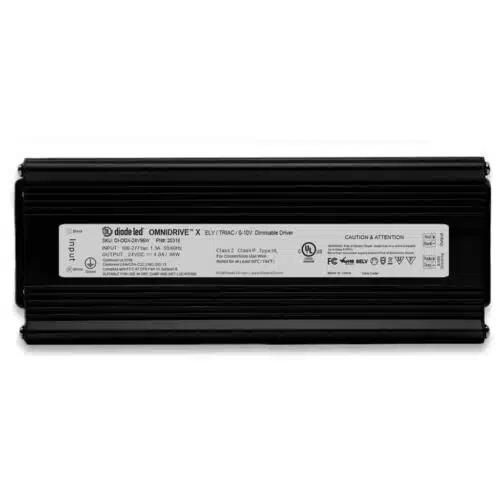

diodeLED OmniDrive X 24V 96W 2-in-1 Electronic & 0-10V Dimmable LED Driver with JBOX, Indoor/Outdoor Rated

The diodeLED OmniDrive X 24V 96W LED driver is engineered for maximum versatility and performance in both residential and commercial lighting applications. Housed in a durable NEMA 3R-rated enclosure, this driver is suitable for indoor and outdoor installations, offering protection against environmental elements while delivering reliable and consistent performance.

What sets this driver apart is its dual dimming capability—supporting both electronic low voltage (ELV)/Triac and 0-10V dimming protocols in a single unit. This innovative 2-in-1 design simplifies installation and inventory management by eliminating the need to stock multiple dimmer-specific models. Whether your project requires forward-phase, reverse-phase, or 0-10V dimming, the OmniDrive X is ready to deliver flicker-free, smooth dimming down to 0.1%, including Dim-to-Dark performance.

Designed with a universal input voltage range of 110-277VAC, the driver accommodates a wide range of electrical systems, making it suitable for everything from single-family homes to large-scale commercial buildings. It requires no minimum load, ensuring stable output even with short LED runs or partial installations.

Certified for safety and efficiency, the OmniDrive X is UL Listed, JA8 compliant, and backed by a 5-year limited warranty, offering peace of mind and long-term durability. Ideal for applications that demand precision dimming control and simplified logistics, the OmniDrive X is the professional’s choice for powering 24V LED lighting systems.

Choose OmniDrive X for a smarter, streamlined, and high-performance LED power solution.

Features:

  • ELV, Triac, and 0-10V dimming in one unit
  • 0.1% Performance Dimming, Dim to Dark
  • 110-277VAC universal input
  • No minimum load
  • UL listed and JA8 compliant

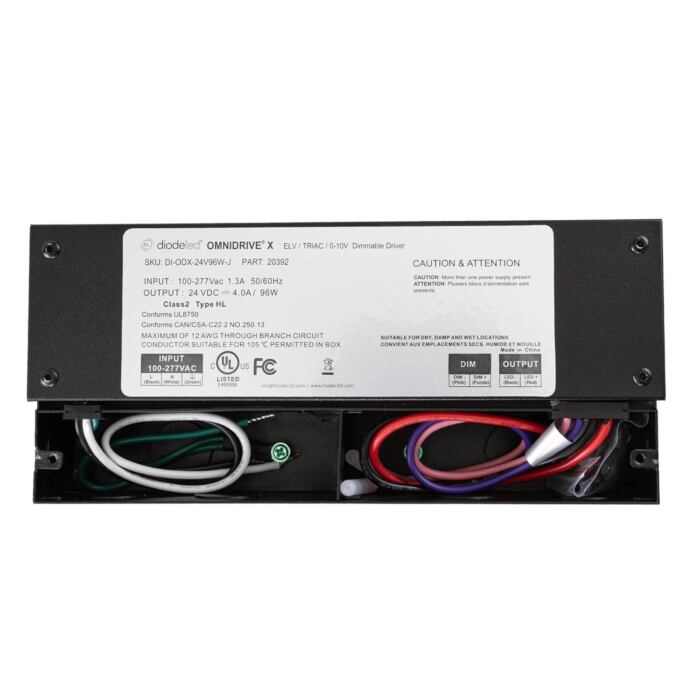

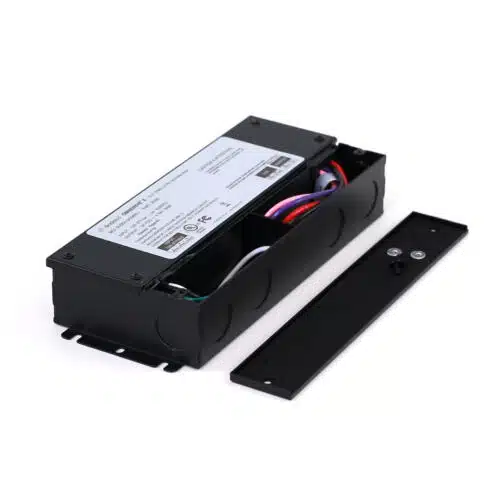

  • Indoor/Outdoor NEMA3R Junction Box
  • 5 Year limited warranty

Specifications:

  • Input Voltage / Frequency: 120-277VAC
  • Maximum Load: 96W
  • Output Voltage: 24VDC
  • Efficiency: >83%
  • Class 2: Yes
  • Ambient Temperature: -40 ~ +140°F (-40 – +60°C)
  • Operating Temperature: -22 – 158°F (-30 ~ +70°C)
  • Minimum Load: No Minimum Load
  • Dimmable: Yes
  • Input Connection Type: Wire
  • Output Connection Type: Wire
  • Internal Protection: Shut down, recovers automatically after fault condition is removed
  • Environment: With Junction Box: Outdoor / Wet Location (NEMA3R)
  • Working Humidity: 20 – 95%RH, non-condensing
  • Dimensions: 9 in. x  2.7 in. x  1.7 in. (L x W x H)
  • Certification: cULus (US & Canada) Listed, UL # E499308. ANSI/UL 1310 Power Unit. CAN/CSA-C22.2 No.250.13. Class P, FCC Part 15 Compliant
  • Warranty: 5 Year
