Description

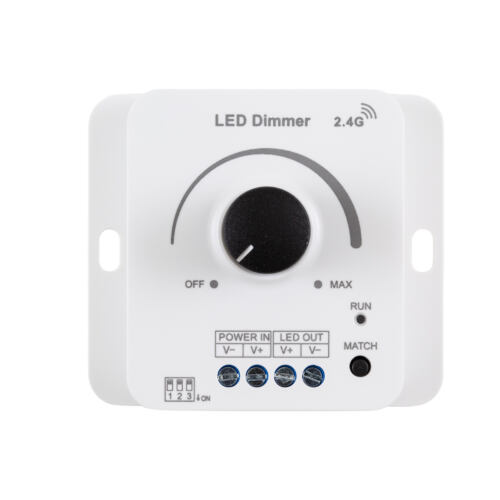

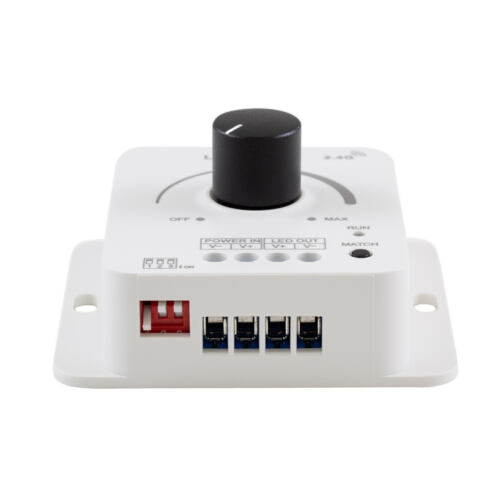

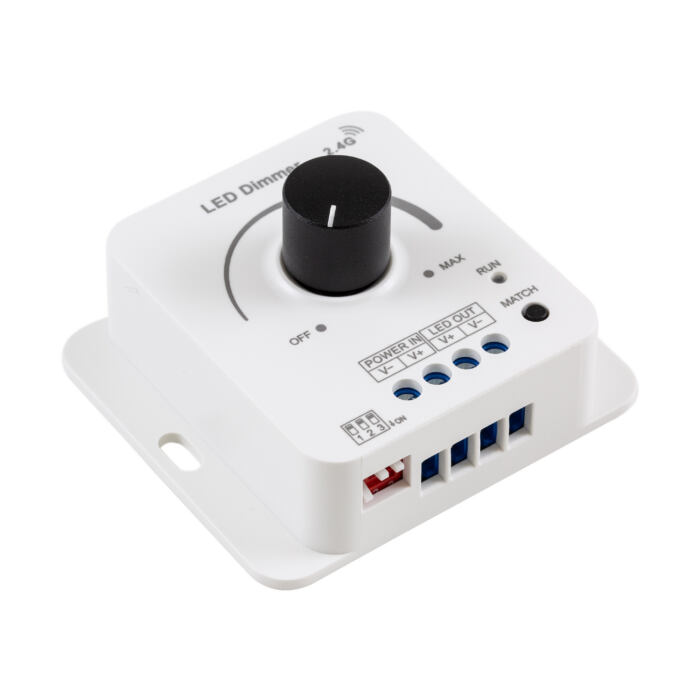

V1-KS Single-Channel RF Rotary LED Dimmer

The V1-KS is a constant-voltage LED dimmer that provides smooth rotary control for single-color LED lighting, with optional 2.4 GHz RF remote operation.

Designed for 12–48 VDC systems, the V1-KS delivers flicker-free dimming from 0–100% with 256 brightness levels. Selectable logarithmic and linear dimming curves allow the response to be tailored to the application.

Four selectable PWM frequencies provide flexibility for standard lighting and camera-sensitive environments. Integrated over-temperature, short-circuit, and reverse-polarity protection supports reliable operation with automatic recovery.

Features:

  • Single-channel constant-voltage LED dimming
  • Rotary knob and optional 2.4 GHz RF remote control
  • Compatible with single-zone and multi-zone dimming remotes
  • Smooth 0–100% dimming without flashing
  • Selectable logarithmic or linear dimming curve
  • Selectable 500 Hz, 2 kHz, 8 kHz, or 16 kHz PWM frequency
  • Selectable 3-second light-on and light-off fade
  • Automatic over-temperature, short-circuit, and reverse-polarity protection
  • Up to 30 m RF control distance in open areas



Note:

  • Use a constant-voltage power supply rated for at least 1.2 times the connected LED load.

Specifications:

  • Input Voltage: 12–48 VDC
  • Input Current: 8.5 A
  • Output Voltage: 12–48 VDC
  • Maximum Output Current: 8 A at 12–24 VDC or 6 A at 36–48 VDC
  • Maximum Output Power: 96 W at 12 V, 192 W at 24 V, 216 W at 36 V, or 288 W at 48 V
  • Output Type: Constant voltage
  • Control Input: Rotary knob and 2.4 GHz RF
  • Control Distance: Up to 30 m in barrier-free space
  • Dimming Range: 0–100%
  • Dimming Gray Scale: 256 levels
  • Dimming Curves: Logarithmic or linear
  • PWM Frequency: 500 Hz, 2 kHz, 8 kHz, or 16 kHz
  • Operating Temperature: -20°C to 55°C
  • IP Rating: IP20
  • Dimensions: 70 × 60 × 40 mm
  • Certifications: CE, RoHS, FCC
  • Warranty: 5 years

Box Content:

  • 1 V1-K Dimmer
  • 1 User Manual

Documents:



SKU# V1-KS
