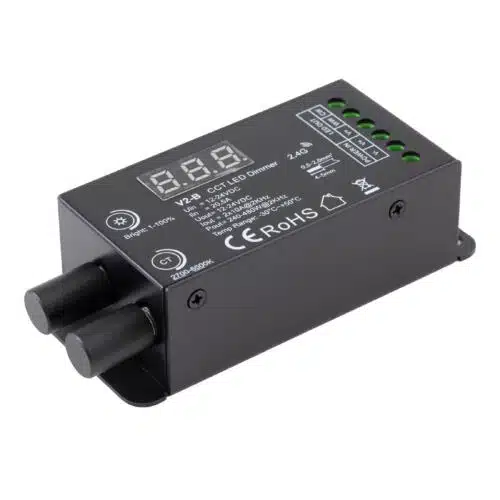

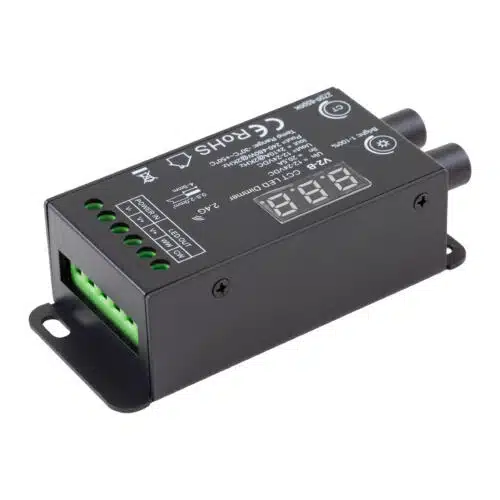

V2-B Dual-Knob CCT LED Dimmer with Digital Display and 2.4GHz RF Compatibility

The V2-B is a constant-voltage CCT LED dimmer designed for precise brightness and color-temperature control of dual-white LED lighting systems.

Dual rotary knobs provide smooth adjustment of brightness from 1 to 100 percent and color temperature from 2700K warm white to 6500K cool white. The integrated numeric display provides clear visual feedback for operating values and system alerts.

Seven selectable PWM frequencies support a range of lighting and camera applications. Optional RF 2.4GHz remote compatibility enables single-zone or multiple-zone wireless control, while integrated protection helps safeguard the dimmer against reverse polarity, overheating, overload, and short circuits.

Features:

  • Independent rotary brightness and color-temperature controls
  • Digital display for operating values and system alerts
  • Smooth 0 to 100 percent dimming
  • Adjustable color temperature from 2700K to 6500K
  • Seven selectable PWM frequencies from 250Hz to 16kHz
  • Optional RF 2.4GHz single-zone or multiple-zone remote control
  • Two selectable neutral-white output modes
  • 4096-level dimming resolution
  • Automatic overheat and short-circuit recovery
  • Reverse-polarity protection

Note:

  • An optional compatible CCT remote control is required for wireless operation. Output capacity varies according to the selected PWM frequency.

Specifications:

  • Model: V2-B
  • Product Type: Constant-Voltage CCT LED Dimmer
  • Input Voltage: 12-24VDC
  • Input Current: 20.5A
  • Output Voltage: 2 x 12-24VDC
  • Output Current: 2 x 10A at 250Hz, 500Hz, 1kHz, and 2kHz
  • Output Current: 2 x 7A at 4kHz and 8kHz
  • Output Current: 2 x 5A at 16kHz
  • Output Power: 240-480W at 250Hz, 500Hz, 1kHz, and 2kHz
  • Output Power: 168-336W at 4kHz and 8kHz
  • Output Power: 120-240W at 16kHz
  • Control Input: Rotary Knobs and RF 2.4GHz
  • Wireless Control Distance: Up to 30m in barrier-free space
  • Brightness Range: 0-100 Percent
  • Color-Temperature Range: 2700K-6500K
  • Dimming Resolution: 4096 Levels
  • Dimming Curve: Linear
  • PWM Frequencies: 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, and 16kHz
  • Default PWM Frequency: 2kHz
  • Operating Temperature: -30°C to 50°C
  • Maximum Case Temperature: 85°C
  • Dimensions: 100 x 46 x 38mm
  • Gross Weight: 0.092kg
  • Warranty: 5 Years
  • Certifications: CE, EMC, and RED

Box Content:

  • 1 V2-B CCT Dimmer
  • 1 User Manual

Documents:

SKU# V2-B
