Description

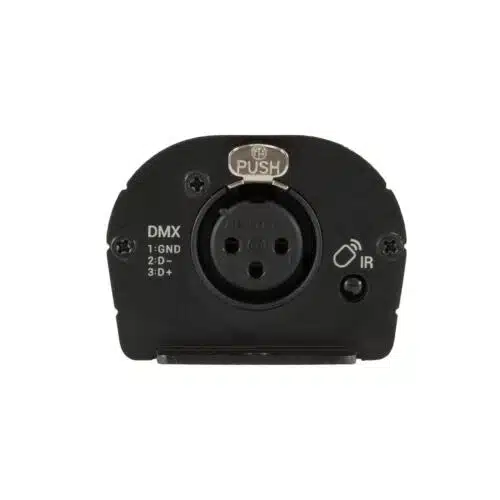

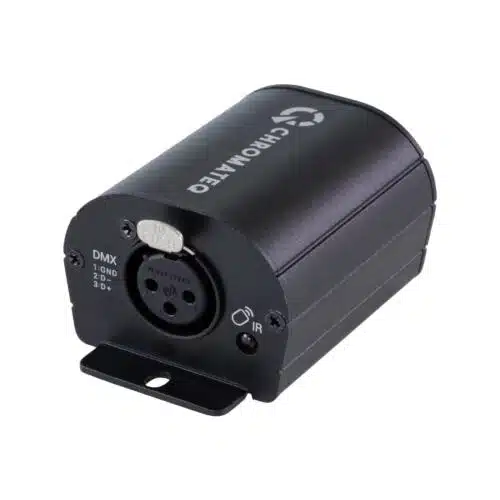

LED DMX Decoder 4 Channel RGB & RGBW Controller 8A/CH, 12-36V DC, 384-1152W, UL Recognized

The SIRS-E® LED DMX Decoder 4-Channel RGB & RGBW Controller 4 x 8A is a versatile, high-performance solution for LED lighting installations. Designed for both professional and DIY projects, this decoder allows precise control over RGB and RGBW LED strips, LED modules, and other compatible lighting fixtures. With support for DMX512/1990, it integrates seamlessly into DMX lighting systems, providing smooth dimming and vibrant color control with 256 levels of brightness per channel.

This decoder features a clear digital display, making it easy to set up and configure. Its Pulse Width Modulation (PWM) technology ensures flicker-free performance, enhancing visual consistency in any environment. The device can be controlled not only via DMX but also through WiFi and Bluetooth using an RF remote, offering added convenience and flexibility for users who prefer wireless control.

With the ability to control up to four independent LED channels, this decoder is ideal for custom lighting setups where users can mix different color channels and achieve asynchronous color-changing effects. It also allows custom DMX addressing from 1 to 512, making it adaptable to various lighting configurations. The modular design ensures compatibility with multiple LED module types, enhancing the versatility of this controller for different applications.

Key Features:

  • Digital Display: Easy setup and configuration
  • PWM DMX Decoder: Flicker-free performance
  • Wireless Control: Supports WiFi & Bluetooth with RF remote
  • DMX512 Compatibility: Meets DMX512/1990 standards
  • 256 Brightness Levels: Smooth dimming and color transitions
  • Multi-Color Control: Works with 1 to 4 LED colors
  • Flexible DMX Addressing: Set addresses from 1 to 512
  • Modular Design: Compatible with various LED modules

Whether you’re setting up architectural lighting, stage lighting, or ambient LED displays, the SIRS-E® DMX Decoder is a reliable, cost-effective solution that delivers exceptional control and performance.

Technical Specification
Protocol DMX512 LED Decoder
Type Constant Voltage
Output Channels Selectable 3 or 4
Input Voltage 12~36 V DC
Output Current 4 x 8 A
Output Power 384-1152 W
Output To LED
Part Number SR-2102BEA-RJ45
Certifications & Listings UL Recognized, RoHS, CE, FCC
Warranty (Limited) 3 Year Ltd.

Box Content:

  • LED DMX Decoder 4 Channel
  • Datasheet

Downloadable Documentation:

Condition: Open Box
