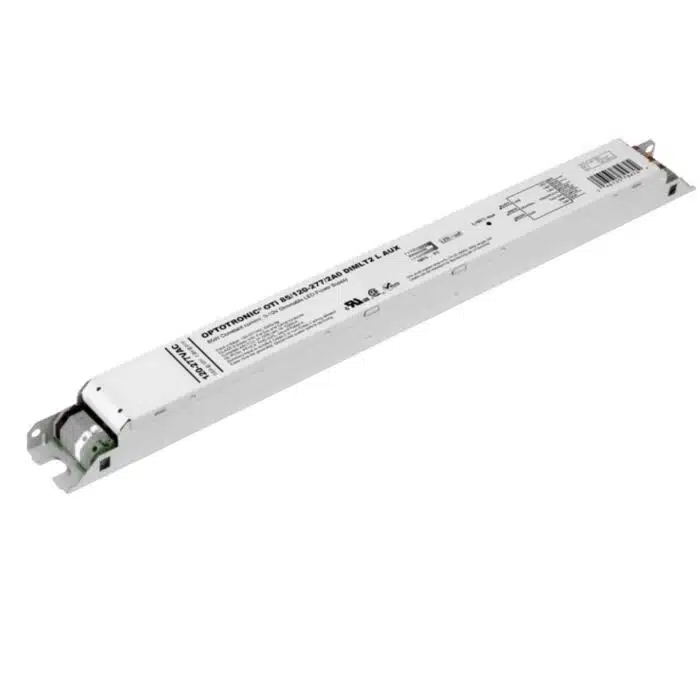

OPTOTRONIC OTi 85W 120-277 2A3 DIM-1 L HB AUX CC Programmable Linear LED Driver (*274A1S / 57425)

Description

OPTOTRONIC OTi 85W 120-277 2A3 DIM-1 L HB AUX CC Programmable Linear LED Driver (*274A1S / 57425)

OPTOTRONIC OTi 85W 120-277 programmable, dimmable family consists of highly efficient, linear, constant current LED drivers. One click programming through the OPTOTRONIC programmer allows OEMs to configure the output current with 1mA resolution. Also, fully customizable by customers are the endof-life indicator, LED thermal protection, and the constantlumen maintenance features.

The OPTOTRONIC programmer does not require the driver to be powered up or connected to AC line voltage while programming. The drivers are available with built-in 0-10V dimming protocol with models available in true 1% to 10%. The auxiliary output has the capability to power various sensors.

Features:

• OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
• Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Dim to off, Soft start
• Programming doesn’t require powering up or connecting the driver to AC line voltage
• Specification grade dimming down to true 1% or 10% on 0-10V dimmers.
• Slim form factors
• Input voltage: Universal 120-277Vac, 50/60Hz
• UL Class 2 output for safe operation

Specifications:

Ambient Operating Temperature: -40ºC to 55ºC
Case Temperature (Tc): 85ºC (50kHrs), 90ºC max. (30kHrs)
Max. Storage Temp: 70ºC
Max. Relative Humidity (%): 85% non-condensing
Transient Protection: NEMA SSL 1-2010 (2.5kV) ANSI, C82.77-5-2015(6kV)
EFT: IEC61000-4-4, Level 3
UL Rating: Dry & Damp
UL File number: E333135
EMI Compliance: FCC Part 15 Class A
Sound Rating: Class A

Input:

• Input Voltage (VAC): 120V-277V (+/- 10%)
• Frequency Range (Hz): 50 – 60 Hz (+/- 10%)

Output:

• Output Current (mA): 700-2300mA (1mA step) (default 1400mA)
• Output Voltage (VDC): 10-55VDC
• Output Ripple Current: <5% @ 2300mA
• Max. Output Power (W): 85W
• LED Power-Up Time: <1sec
• Load Regulation: <3%
• Line Regulation: <3%
• Over Voltage Protection: Yes, non-latching
• Over Load Protection: Yes, non-latching
• Output Short-Circuit: Protection Yes, non-latching
• Over Temperature Protection: Foldback to 50% at 105ºC

Dimming:

Dimming Control: 0 – 10V (Isolated)
Dimming Range: 10-100%, 1-100%
Dimming Type: Current Reduction
Dimming Input Isolation: 2.5kV
Source/Sink Current: 0.2mA max
Dim-to-Off Threshold: 0.8V
Stand-by Power: 2.9W(120V); 2.5W(277V)
Dimming Interface Protection: Yes, 120-277Vac

Documents:

• DataSheet
