Description

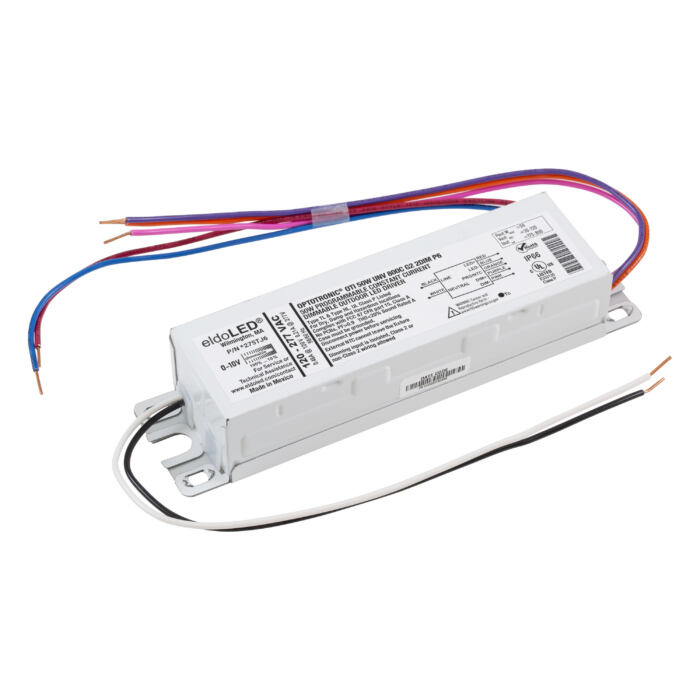

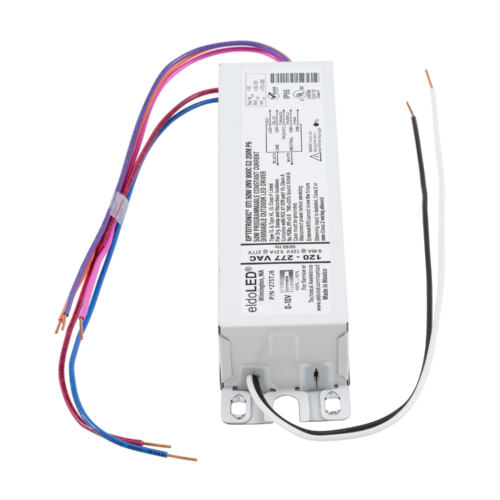

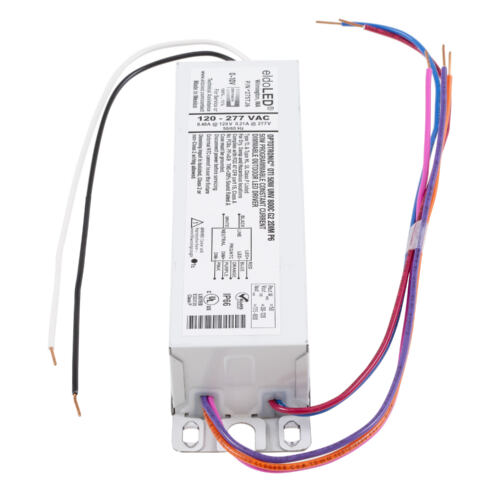

OPTOTRONIC OTi 50W G2 800C Programmable LED Driver | 120-277V | 0-10V Dimming | IP66 (*275TJ6 / 57343)

The OPTOTRONIC® OTi 50W G2 800C is a high-performance programmable LED driver designed for reliability, flexibility, and energy efficiency in demanding lighting applications. Built with advanced features like configurable output current and integrated dimming control, this driver delivers precise performance for a wide range of LED systems.

With an adjustable output current range of 175–800mA and a maximum output power of 50W, this driver provides versatility for various fixture designs. Its 0–10V dimming capability and AstroDIM functionality allow for smooth, customizable lighting control, including automated multi-stage dimming without the need for external systems.

Engineered for durability, the unit features an IP66 rating and operates in extreme temperatures from -40°C to 55°C, making it ideal for both indoor and outdoor installations. Built-in protections—including over-voltage, short-circuit, and thermal protection—ensure long-term reliability and safety.

Programable Features

  • Adjustable output current
  • Custom dimming levels
  • Configurable thermal protection
  • Thermal diagnostics
  • AstroDIM scheduling
  • Constant lumen output settings
  • End-of-life indicator configuration

Key Features

  • Programmable constant current LED driver (175–800mA)
  • Max output power: 50W
  • Wide input voltage: 120–277V
  • 0–10V dimming with 10–100% range
  • AstroDIM autonomous dimming capability
  • IP66 rated for outdoor and harsh environments
  • Built-in thermal, overload, and short-circuit protection
  • Constant lumen maintenance for long-term performance
  • 5-year warranty

Specification

  • Programmable constant current LED driver (175–800mA)
  • Max output power: 50W
  • Wide input voltage: 120–277V
  • 0–10V dimming with 10–100% range
  • AstroDIM autonomous dimming capability
  • IP66 rated for outdoor and harsh environments
  • Built-in thermal, overload, and short-circuit protection
  • Constant lumen maintenance for long-term performance
  • 5-year warranty

Documents



SKU# *275TJ6  (57343)
