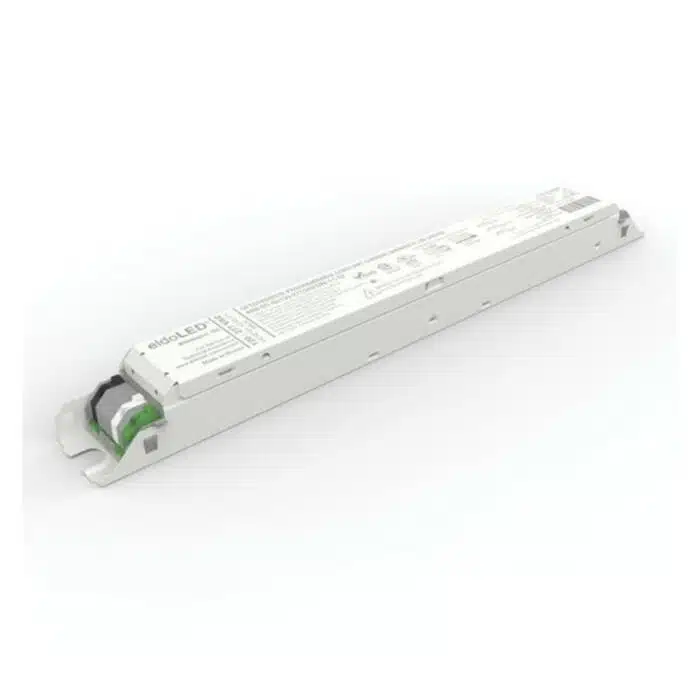

OPTOTRONIC OTi 48W 120-277 2A0 DIM-1 L AUX G2 CC Programmable Linear LED Driver (*2743X6 / 57455)

Description

OPTOTRONIC OTi 48W 120-277 2A0 DIM-1 L AUX G2 CC Programmable Linear LED Driver (*2743X6 / 57455)

OPTOTRONIC OTi 48W 120-277 programmable, dimmable family consists of highly efficient, linear, constant current LED drivers. One click programming through the OPTOTRONIC programmer allows OEMs to configure the output current with 1mA resolution. Also, fully customizable by customers are the end-of-life indicator, LED thermal protection, and the constant-lumen maintenance features.

The OPTOTRONIC programmer does not require the driver to be powered up or connected to AC line voltage while programming. The drivers are available with built-in 0-10V dimming protocol with models available in true 1% to 10%. The auxiliary output has the capability to power various sensors.

Features:

• OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
• Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Dim to off, Soft start
• Programming doesn’t require powering up or connecting the driver to AC line voltage
• Specification grade dimming down to true 1% or 10% on 0-10V dimmers.
• Slim form factors
• Input voltage: Universal 120-277Vac, 50/60Hz
• UL Class 2 output for safe operation

Specifications:

• Ambient Operating Temperature: -30ºC to 50ºC
• Case Temperature (Tc): 85ºC Max, 75°C – (50kHrs)
• Max. Storage Temp: 70ºC
• Max. Relative Humidity (%): 85% non-condensing
• Transient Protection: NEMA SSL 1 – 2010, Non-Roadway 2.5KV
• UL Rating: Dry & Damp
• UL File number: E333135
• EMI Compliance: FCC Part 15 Class A
• Sound Rating: Class A

Input:

• Input Voltage (VAC): 120V-277V (+/- 10%)
• Frequency Range (Hz): 50 – 60 Hz (+/- 10%)

Output:

• Output Current (mA): 700-2000mA (1mA step), Default 1400mA
• Output Voltage (VDC): 10-55VDC
• Output Ripple Current: <20% @ 2000mA
• Max. Output Power (W): 48W
• LED Power-Up Time: <1sec
• Load Regulation: <5%
• Line Regulation: <5%
• Over Voltage Protection: Yes, non-latching
• Over Load Protection: Yes, non-latching
• Output Short-Circuit Protection: Yes, non-latching
• Over Temperature Protection: Foldback at 110ºC

Dimming:

• Dimming Control: 0 – 10V (Isolated)
• Dimming Range: 1-100%
• Dimming Type: Analog
• Dimming Input Isolation: 2.5kV
• Source/Sink Current: 0.2mA max
• Dim-to-Off OFF/ON Threshold: 0.7V/1V
• Stand-by Power (max): 1.4W(120V); 1.7W(277V)
• Dimming Interface Protection: Yes, 120-277Vac

Documents:

• DataSheet
