Description

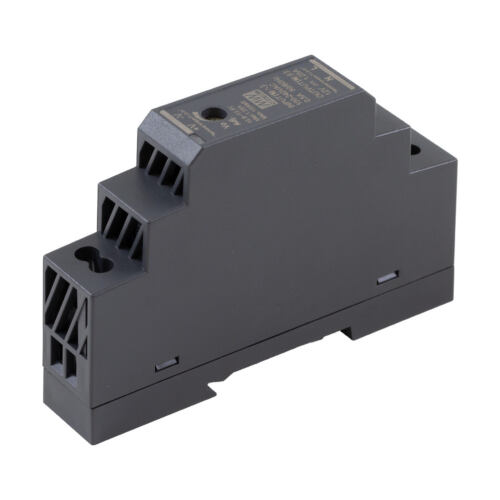

MEAN WELL DDR-15 Series 15W DIN Rail Type DC-DC Converter

The MEAN WELL DDR-15 Series is a compact 15W DIN rail DC-DC converter designed for reliable power conversion in industrial, security, communication, and automation systems.

Designed for DIN rail installation, the DDR-15 Series combines a slim 17.5mm housing with a wide input range and adjustable DC output voltage. Its compact form factor makes it well suited for control panels and space-limited electrical enclosures.

The series supports 3.3V, 5V, 12V, 15V, and 24V output options, with G-type and L-type input ranges available for different DC power systems. Built-in protection functions help support stable operation in demanding environments.

Features:

  • 15W DIN rail type DC-DC converter
  • Slim 17.5mm width for compact installations
  • 4:1 ultra wide input voltage range
  • Adjustable DC output voltage
  • No minimum load required
  • Free air convection cooling
  • DIN rail TS-35/7.5 or TS-35/15 installation
  • Short circuit, overload, over voltage, reverse polarity, and under voltage protection
  • 4KVdc input to output isolation
  • Suitable for industrial control, factory automation, wireless network, telecom, and datacom systems
  • 3 year warranty



Note:

Derating may be required under low input voltage or elevated operating temperatures.

Specifications:

  • Series: DDR-15
  • Product Type: DIN Rail Type DC-DC Converter
  • Rated Power: 15W
  • Input Voltage Range: 9 to 36Vdc or 18 to 75Vdc
  • Output Voltage Options: 3.3Vdc, 5Vdc, 12Vdc, 15Vdc, 24Vdc
  • Output Voltage Adjustment: ±10%
  • Operating Temperature: -40°C to +85°C
  • Isolation: 4KVdc input to output
  • Cooling: Free air convection
  • Mounting: DIN rail TS-35/7.5 or TS-35/15
  • Dimensions: 17.5 x 90 x 54.5mm
  • Safety Standards: UL 62368-1, IEC 62368-1, AS/NZS 62368.1, EAC TP TC 004
  • Warranty: 3 years

Box Content:

  • MEAN WELL DDR-15 Power supply
