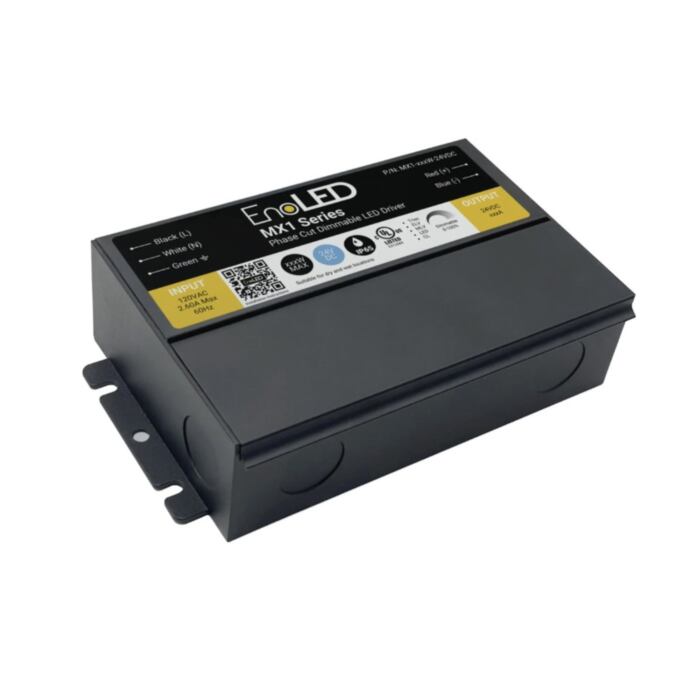

MX1 24VDC 200W Single Output Dimmable J-Box LED Driver by EnoLED

MX1 24VDC 200W Single Output LED Driver – Ultra-Compact, High-Performance, and IP65 Rated

The MX1 24VDC 200W Single Output Series sets a new standard for compact, high-output LED drivers. Designed with precision and efficiency in mind, the MX1 is one of the smallest 200-watt dimmable LED drivers available on the market today, making it an excellent choice for demanding lighting applications where space is limited. Its ultra-slim form factor includes a built-in junction box, allowing for clean, fast, and secure installation in both residential and commercial environments.

Rated IP65, the MX1 is fully protected against dust and low-pressure water jets, making it suitable for use in dry, damp, or wet locations. Whether installed indoors or outdoors, it ensures long-lasting, dependable performance under a wide range of environmental conditions.

This driver supports leading-edge and trailing-edge dimming technologies and is fully compatible with CLF, LED, MLV, and ELV dimmer switches. It delivers smooth, flicker-free dimming down to low light levels without any buzzing or performance issues—ideal for architectural, landscape, or task lighting applications where lighting control is critical.

Engineered for efficiency, the MX1 offers energy savings and reliability without sacrificing performance. It features overload, short circuit, over-voltage, and over-temperature protection, providing peace of mind for installers and end users alike.

With its combination of compact size, robust design, and versatile dimming compatibility, the MX1 200W LED driver is the go-to power supply for professional lighting systems that require both performance and discretion.

Features:

  • The smallest 200W dimmable LED drivers in the market

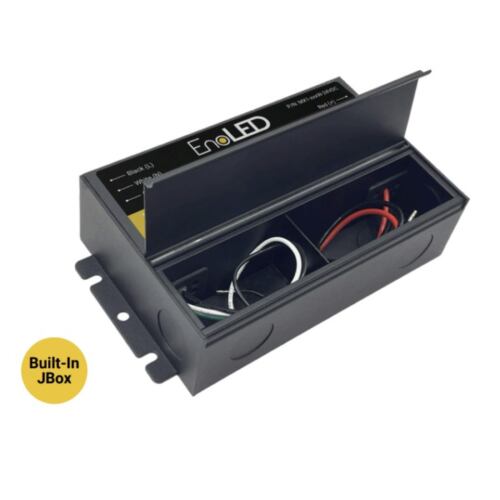

  • Built-in junction box
  • IP65 – Suitable for dry and wet locations
  • Dimmable with any CLF/LED/MLV/ELV (leading or trailing edge) dimmer switch
  • Smooth flicker-free dimming
  • Overload and short circuits protection
  • 90% Efficiency @ Full Load

Specifications:

  • Max Power 200W
  • Input Voltage 120VAC
  • Output Voltage 24VDC
  • Dimmable Triac / ELV (leading or trailing edge)
  • IP Rating IP65
  • Efficiency @ Full Load 90%
  • Warranty 6 Year
  • Dimensions (W x H x L) 3.85″ x 1.64″ x 6.57″
