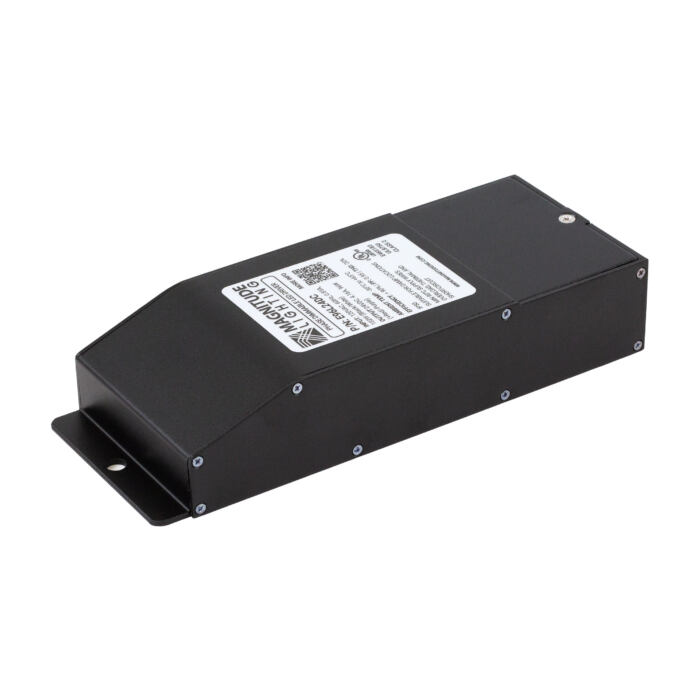

Magnitude E96L24DC – 96W 24V DC Voltage Dimmable Class 2 LED Driver

Magnitude E96L24DC – 96W is a high-performance 96W dimmable constant-voltage LED driver engineered to deliver reliable, flicker-free power for a wide range of low-voltage LED lighting applications. As a Class 2 rated driver, it meets strict safety standards and is fully compatible with standard MLV/Incandescent TRIAC (leading-edge) dimmer switches, making it an ideal solution for both residential and commercial installations requiring smooth, responsive dimming control.

Built with installer convenience in mind, the E96L24DC is housed in a slim, low-profile aluminum enclosure designed to fit easily into tight spaces such as cabinets, coves, and display cases. The enclosure includes two integrated knockouts, allowing for clean, flexible wiring access and simplified installation in junction boxes or architectural spaces. This makes the driver particularly well-suited for powering under-cabinet lighting, LED tape lights, task lighting, and a wide variety of 24-volt LED fixtures.

The driver is engineered for durability and consistent performance, incorporating essential electrical protections such as auto-reset, over-current protection, and short-circuit protection. These built-in safeguards help ensure long-term reliability while protecting both the driver and your connected LED lighting system.

With an efficiency rating of 90% or higher, the E96L24DC operates at lower temperatures, reducing thermal stress and promoting extended lifetime even in demanding environments. Its high efficiency also minimizes wasted energy, contributing to overall system performance and sustainability.

Whether you are upgrading a lighting system, designing a new installation, or building a custom LED solution, the Magnitude E96L24DC provides the perfect balance of power, safety, compatibility, and ease of installation—making it a trusted choice for professionals seeking dependable dimmable LED power.

Features:

  • Dimmable with any standard MLV/Incandescent TRIAC-(Leading edge) dimmer switch
  • Super compact Aluminum Case
  • Class 2
  • UL 8750
  • Nema 3R – Outdoor Use
  • Auto-Reset Protection for short circuits, over-voltage and over-temperature
  • FCC 15 part 2
  • 24V DC True RMS

Specifications:

  • Max Load:  96W
  • Input Voltage:  120V AC
  • Input Current at Max Load:  1 A
  • Output Voltage:  24V DC
  • Output Current at Max Load:  4.2 A
  • Power Factor:  0.95
  • Efficiency:  > 90%
  • Operating Temp.:  -20oc – 70oc (-4oF – 158oF)
  • Short circuit protection:  Yes
  • Overcurrent:  Yes
  • Over temperature:  Yes
  • Open circuit protection:  Yes
  • Input Wires (White \ Black):  18 AWG
  • Output Wires (Red \ Black):  14 AWG
  • Dimensions L*W*H:  6.77” x 2.67“ x 1.26”
  • Weight:  17 oz

Documents:



SKU: PS24V96W-ELE
