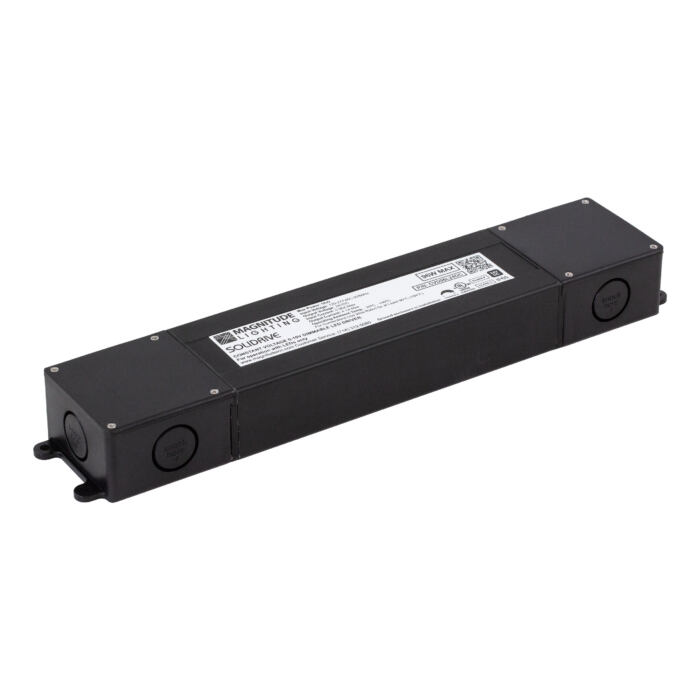

Magnitude CVD96L24DC – 96W 24V DC Constant Voltage LED Driver (0-10V Dimmable, 120-277V Input)

Magnitude CVD96L24DC – 96W is a high-performance constant-voltage LED driver designed for professional architectural and commercial lighting systems. With a universal input of 120-277 VAC and a 24 V DC output rated up to 96 W, it accommodates long runs and high-density LED tape, modules or linear lighting configurations. This model features the “L” enclosure with built-in junction box (input and output) and full 0-10 V dimming to 1 % for seamless ambient control.

Engineered for both indoor and outdoor (IP65/66 rated) applications, the CVD96L24DC provides broad installation flexibility. Its integrated protections (short-circuit, over-temperature, over-load, over-voltage) and Class 2 / Class P certifications deliver reliable, code-compliant performance. Backed by Magnitude’s 5-year warranty, this driver is an ideal choice for high-track repeatability in your OEM, architainment, and architectural lighting projects.

Key Features:

  • 96-watt constant-voltage output at 24 V DC – supports up to 4.1 A output current.
  • Universal input voltage 120-277 VAC at 50/60 Hz – simplifies global / mixed-voltage installations.
  • 0-10 V dimmable down to 1% – enables smooth, flicker-free ambient lighting control.
  • Built-in junction box enclosure version (“L” form) – simplifying installation with separate wiring compartments.
  • IP65/IP66 rated for indoor and outdoor usage – supports damp or exterior environments.
  • High efficiency (up to ~87% typical) and power factor > 0.95 – reduces energy waste and helps meet specs.
  • Comprehensive protection features: Over-current, over-temperature, over-voltage, short-circuit (auto-reset/hiccup).
  • 5-year limited warranty standard – provides confidence and reliability for end installations.

Technical Specifications:

  • Model: CVD96L24DC
  • Manufacturer: Magnitude Lighting
  • Type: Constant Voltage LED Driver (CV)
  • Output Power: 96 W maximum
  • Output Voltage: 24 V DC nominal
  • Output Current: 4.1 A (max)
  • Input Voltage: 120 – 277 V AC ±10%
  • Input Frequency: 50/60 Hz
  • Efficiency: Up to ~87% (typical)
  • Power Factor: > 0.95 at full load
  • Total Harmonic Distortion (THD): < 20% at full load
  • Dimming Method: 0-10 V analog, down to 1%
  • Environmental / Protection Rating: IP65 / IP66 (depending on source)
  • Operating Ambient Temperature: –25 °C to +40 °C typical
  • Max Case Temperature (Tc): +65 °C (for 5-year warranty)
  • Storage Temperature: –40 °C to +85 °C
  • Certifications / Listings: UL 8750, Class 2, Class P, UL Listed enclosure
  • Dimensions (L × W × H): 12.10″ (307.9 mm) × 2.36″ (59.9 mm) × 1.40″ (35 mm) (L version)
  • Weight: ~1.7-2.2 lb depending source
  • Warranty: 5 years standard

Documents:



SKU: PS24V96W-CVD
