Description

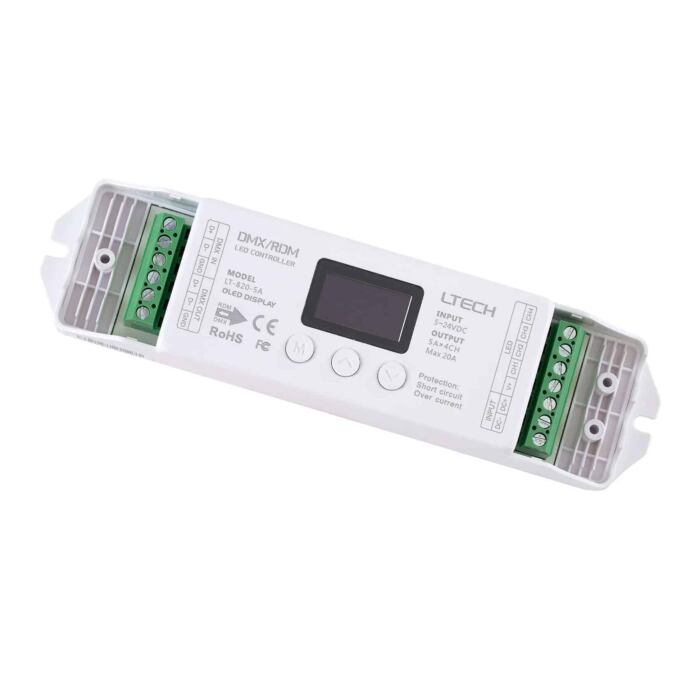

LTECH LED DMX RDM Decoder 4 Channel RGB & RGBW Controller 5A/CH, 5-24V DC, 100-480W

The LTECH LED DMX RDM Decoder is a high-performance device designed for precise and flexible control of low-voltage LED lighting systems. Featuring a real-time OLED display, this decoder allows for easy monitoring and configuration, making it user-friendly and efficient for professional installations. It supports both 8-bit and 16-bit input resolution, offering smooth dimming and accurate color control. With a frame rate of up to 850 frames per second (FPS), it ensures rapid signal processing and flawless LED response, even in demanding applications.

This decoder is ideal for controlling RGBW, RGB, color temperature (CT), or single-color LED strips, delivering consistent PWM (pulse-width modulation) output across 4 independent channels. It requires a low-voltage DC input ranging from 5 to 24 volts and receives DMX control signals from compatible controllers. The input and output connections are made through convenient screw terminals located on the sides of the unit, providing secure and straightforward wiring.

Supporting RDM (Remote Device Management) protocol, the decoder can be addressed and configured remotely, enhancing system setup and maintenance. Its compact design makes it suitable for various architectural, commercial, and entertainment lighting projects. Whether you’re creating mood lighting, accent illumination, or dynamic color effects, the LTECH DMX RDM Decoder offers the reliability and control needed for professional-grade results.

Features

  • Meets DMX512
  • Digital Screen – OLED real-time display
  • 16bit / 8bit input
  • 3 dimming curves optional
  • Short circuit / Over current / Over-heat protection
  • Built-in protection circuit of resistance to lightning stroke and ESD static electricity
  • Frame rate is as high as 850 FPS
  • 4 output channels, max 5A per Channel; 20A total
  • PWM DMX Decoder
  • Capable of controlling LED light with 1-4 colors
  • Freely set the DMX address 1-512
  • Modularizing can be matched with different LED modules

Technical Specification
Protocol DMX512 LED Decoder
Type Constant Voltage
Output Selectable 1 to 4 Output Channels
Input Voltage 5~24V DC
Output Current 4 x 5A / 3 x 6A Max. 20A
Output Power 100-480W
Dimming Range 0-100%
Protection Short circuit/ Over current Over-heat protection
Working Temp -30°C~55°C
Output To LED
Part Number LT-820-5A
Certifications UL Recognized, RoHS, CE
Dimensions (LxWxH) 6.90 x 1.75 x 1.10 in
Weight 5.2 oz
Warranty 3 Year

Box content

  • DMX Decoder
  • Datasheet

Downloadable Documentation

SKU# LT-820-5A
