The IT-SP8R is an ultra-compact 8 Port RJ45 DMX512 Splitter for use with DMX installations wired with Category 5 (CAT5) cabling. Each output port of the IT-SP8R is an independently protected DMX signal that can be run up to 1,500 feet (500 meters). Since DMX signals cannot be wired in a star network configuration without being re-created by an active splitter, use the IT‑SP8R to branch DMX signals out to DMX devices in multiple locations or to extend the 1,500 foot (500m) maximum distance from the DMX source. The IT-SP8R includes DMX Input and Pass-Thru ports with a handy line termination switch. It also includes a polarity inversion switch that allows the IT-SP8R to internally convert between DMX512 standard wiring and inverted wiring used by Color Kinetics® devices.
IT-SP8R| North American DMX 8-Way RJ45 Splitter
Includes North American power supply
- RJ45 Ports for easy connection in DMX systems that use Category 5 cables
- DMX Input and DMX Pass-Thru Ports for daisy-chaining multiple splitters
- 8 Independently generated and protected output ports
- Each port can drive a DMX line an additional 1,500 feet (500 meters)
- Port protection circuitry includes Transient Voltage Suppression (TVS) and Self-Resetting Poly-Switch Fuses to prevent a fault on one port from affecting the Input or other output ports
- Can be used in systems wired for DMX512 or Color Kinetics® devices
- User-selectable polarity inversion for converting between DMX512 and Color Kinetics® wiring schemes
- User-selectable input line termination switch

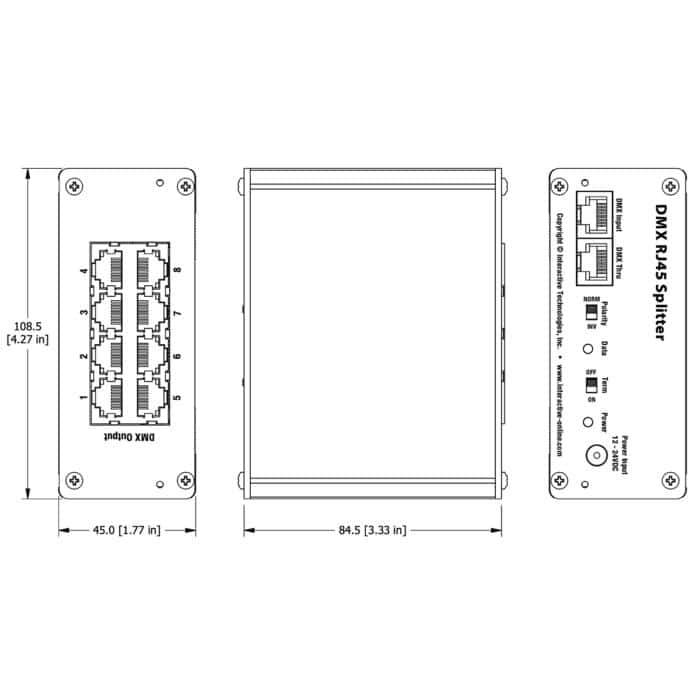

- Ultra-compact design provides 8 DMX ports just 14in2 (90cm2)
The IT-SP8R has two user-selectable configuration switches:
The DMX standard recommends that the last device in a DMX chain be properly terminated. If the IT-SP8R is the last DMX device on the DMX network coming from the Lighting Controller, the DMX Termination Switch should be ON.
Two primary wiring schemes are used for DMX data being carried on CAT5 cabling — the “standard” DMX wiring and a different scheme used by Color Kinetics® products. The IT-SP8R has a switch that can be used to invert the polarity of the data from the Input port to the 8 Output ports. If DMX wiring is used on both the input and outputs or CK wiring on both the input and outputs, then the Polarity switch should be set to Normal. If the wiring on the Input side of the IT‑SP8R is the opposite (DMX-to-CK or CK-to-DMX), then the Polarity switch should be set to Invert.
