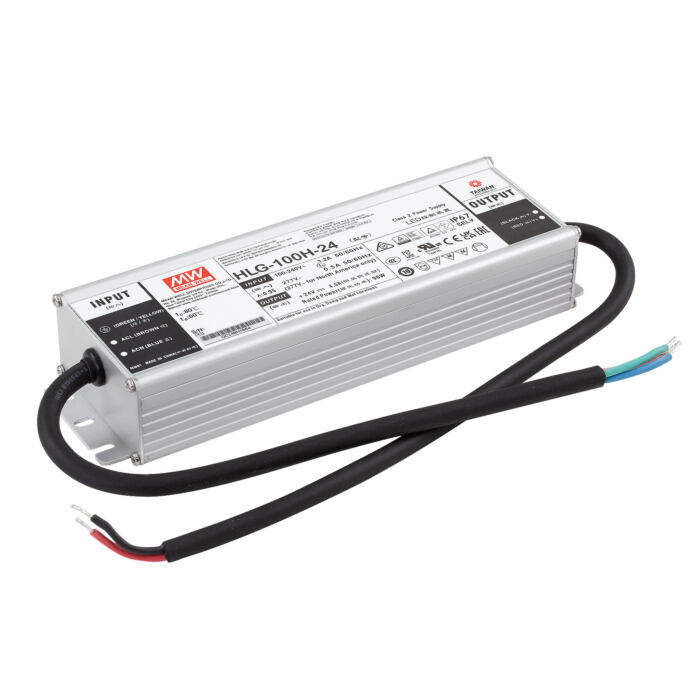

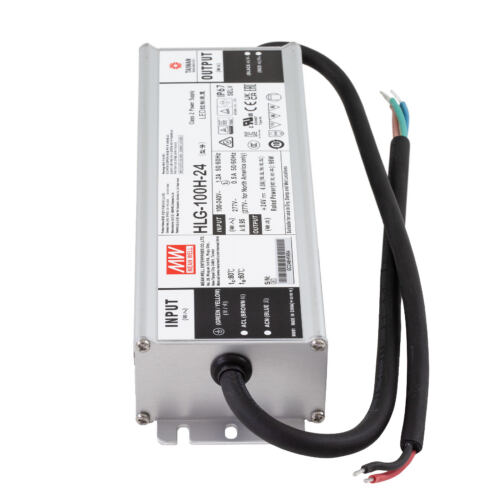

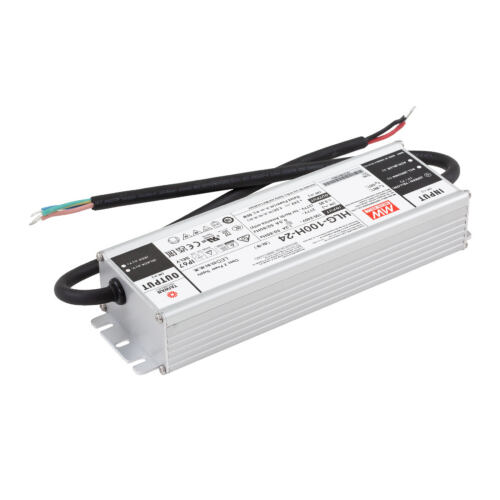

HLG-100H 100W Constant Voltage + Constant Current LED Driver

MEAN WELL HLG-100H Series – 96W Constant Voltage + Constant Current LED Driver

The HLG-100H Series is a premium 100W AC/DC LED driver designed to deliver reliable, high-efficiency power for demanding lighting applications. Featuring dual-mode Constant Voltage and Constant Current output, this versatile driver supports rated output voltages from 20V to 54V, making it adaptable to a wide range of LED systems.

Engineered for durability and performance, the HLG-100H operates across a wide 90–305VAC input range and achieves efficiency up to 93%. Its fanless design and robust metal housing allow stable operation in extreme environments, with a working case temperature range of -40°C to +80°C. With IP65/IP67 protection, it is ideal for both indoor and outdoor installations.

The series includes built-in active PFC, comprehensive protection features (over-current, over-voltage, over-temperature, and short circuit), and optional 3-in-1 dimming (1–10V, PWM, or resistance) for maximum design flexibility. Adjustable models include built-in potentiometers for fine-tuning output voltage and current.

With a typical lifetime exceeding 62,000 hours, the HLG-100H is a dependable solution for LED street lighting, high-bay lighting, parking lot lighting, greenhouse systems, fishing lamps, and other industrial or commercial lighting applications.

Built for performance. Designed for longevity. Trusted for professional lighting systems.

Specifications:

Input Voltage: 90~305Vac

Output Voltage (CV mode): 24Vdc

Output Max Current (CV mode): 4 Amps

Output Current (CC mode): 4 Amps

Constant Current Operating Range: 12~24Vdc

Max Power: 96 Watts

Key Features:

  • 96W AC/DC LED driver

  • Constant Voltage + Constant Current dual-mode output

  • Wide input range: 90–305VAC

  • Available output voltages: 20V, 24V, 30V, 36V, 42V, 48V, 54V

  • High efficiency up to 93%

  • Built-in active PFC (Power Factor Correction)

  • IP65 / IP67 rated for indoor and outdoor use

  • Durable metal housing with Class I design

  • Fanless design for silent operation

  • 3-in-1 dimming (1–10VDC, 10V PWM, or resistance) on select models

  • Adjustable output (via built-in potentiometer on A/AB models)

  • Protection: Short circuit, over-current, over-voltage, over-temperature

  • Operating temperature range: -40°C to +80°C

  • Typical lifetime > 62,000 hours

Applications

  • LED street lighting

  • LED high-bay lighting

  • Parking lot and garage lighting

  • Warehouse and industrial lighting

  • LED greenhouse and horticulture lighting

  • LED fishing lamps

  • Outdoor signage and flood lighting

  • Commercial and architectural LED installations

  • Class I, Division 2 hazardous locations (Type “HL” models)

Downloadable Documentation

SKU# HLG-100H-24
