Description

DISCONTINUED MODEL – ENTTEC 70066

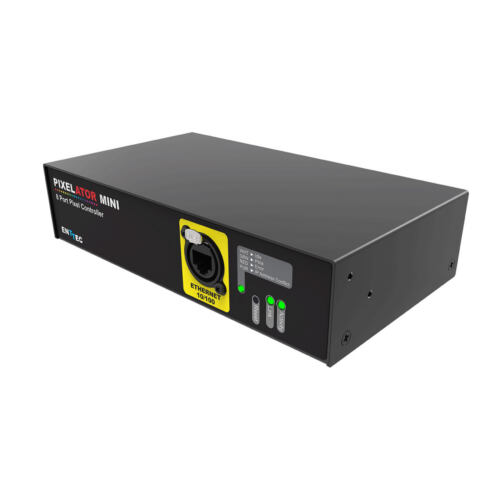

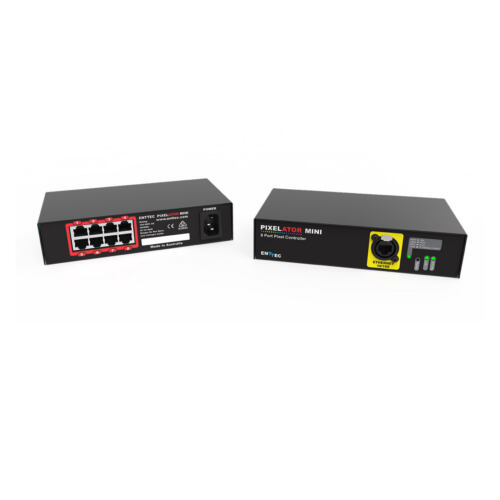

The ENTTEC Pixelator Mini 70066 is an installation-grade Ethernet pixel converter designed to simplify control of LED pixel dots and strips. It can convert up to 8,192 DMX channels (approximately 2,720 RGB pixels) across 8 PLink outputs, with 2 universes per port and synchronized output control.

The Pixelator Mini serves as the main controller for ENTTEC’s PLink system. PLink data can travel up to 300 meters over standard Cat5e/Cat6 cable to compatible ENTTEC PLink Injectors, allowing flexible installation of LED pixel strips and dots.

Designed for professional lighting applications, the Pixelator Mini features a compact 1U half-width enclosure, Ethernet connectivity, and a web-based interface for configuration, addressing, and firmware management.

Features

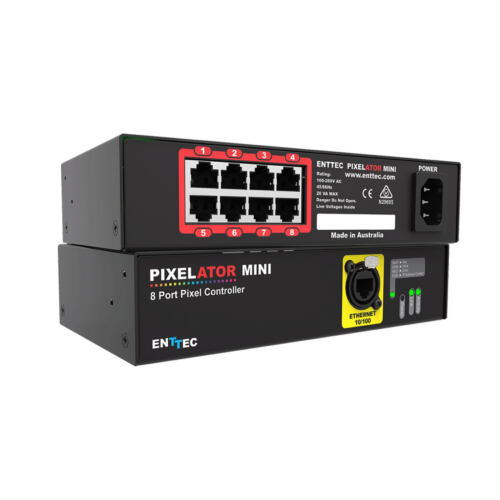

  • 8 RJ45 Pixel Link output ports (2 universes per port).
  • 16-universe Ethernet-to-PLink conversion over Cat5e/Cat6 cable.
  • Up to 8,192 DMX channels.
  • Supports approximately 2,720 individually controlled RGB pixels.
  • Compact 1U half-width form factor.
  • Easy configuration and firmware updates through a web browser.
  • Supports Art-Net 1/2/3, sACN, ESP, and Kling-Net.
  • RJ45 EtherCON network connection (10/100 Mbps).
  • Static or dynamic (DHCP) IP configuration.
  • Compatible with ENTTEC PLink Injectors.
  • Configurable pixel grouping for each PLink port (1–340 RGB or 1–256 RGBW).
  • Each PLink output can be assigned up to 2 Ethernet universes.
  • Configurable RGB and RGBW pixel color ordering.
  • Synchronized pixel data across all 8 outputs.
  • Indoor-use controller with IEC mains power connection.

Supports a Wide Range of LED Pixel Strips and Dots

  • Connect compatible ENTTEC pixel strips or dots using PLink Injectors and external LED power supplies.
  • Supports compatible third-party LED pixel strips and dots.
  • Supports pixel protocols including WS2811, WS2812, WS2812B, WS2813, APA-104, SK6812, and others.
  • Pixel ordering can be adjusted to match the LED strip’s color configuration.
  • Refer to ENTTEC’s supported LED protocol documentation before installation.

Stay in Sync: Content Tearing Is a Thing of the Past

  • Internal synchronization helps maintain consistent pixel output across all 8 PLink ports.
  • Designed for synchronized operation in multi-output LED pixel installations.
  • Allows the creation of LED pixel matrices and dynamic lighting effects with reliable data distribution.

Smart Features

  • Flexible Universe Assignment: Assign incoming Ethernet DMX universes to individual PLink outputs.
  • Configurable Pixel Ordering: Set RGB or RGBW channel ordering to match compatible LED pixel types.
  • Pixel Grouping: Group multiple pixels together to reduce the number of DMX control channels required.
  • Network Configuration: Configure static IP or DHCP settings through the built-in web interface.
  • 16-Universe Operation: Receive up to 16 Ethernet DMX universes and distribute data across 8 PLink outputs, with up to 2 universes per output.
  • Web-Based Management: Configure output settings and manage the controller through a compatible web browser.

Box Contents

Original manufacturer’s package contents:

  • ENTTEC Pixelator Mini 70066
  • Ethernet Cable (79102)
  • 1RU Mounting Kit (79105)
  • Country-Specific IEC Power Cable
  • User Manual

For discontinued inventory, actual included accessories depend on the condition and contents of the unit being sold.

Downloadable Documentation

Important: Model 70066 has been discontinued and superseded by 70067. Firmware designed for later Pixelator Mini revisions is not backward-compatible with the original 70066.

SKU# 70066
