Description

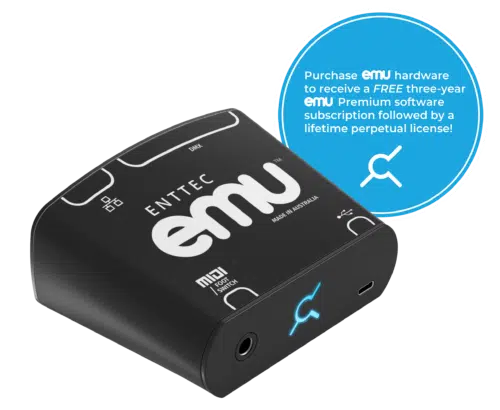

Enttec EMU Hardware Interface 70681, USB-C & Ethernet DMX Lighting Controller with 3/5-Pin XLR, MIDI & Footswitch Support
A leading pioneer in entertainment lighting control technology for over 25 years, ENTTEC have worked alongside top musicians to bring you a state-of-the-art hardware interface, designed to bring your live performances to life, using EMU software — Free 3 year software license is included with this hardware interface.
Your EMU Hardware comes with the full EMU software, yours to keep. That means a perpetual license with all 32 universes unlocked from day one. On top of that, you get 3 full years of Premium updates automatically included. When those three years are up, nothing switches off and nothing renews. You keep the exact version you have, every feature intact. No renewals, no surprise fees, no losing what you’ve built your show on. Software you actually own.
Offering flexible lighting outputs – one full universe (512 channels) of DMX output via XLR ports, or up to 8 universes (4096 channels) via an Ethernet port* – EMU hardware makes real-time control a breeze with a footswitch or MIDI, enabling direct triggers during performances.
Technical Specifications
-
- Connectors: 1 x USB Type C (Power & Data), 1 x EtherCon RJ45 (Ethernet), 1 x 3-Pin XLR (DMX), 1 x 5-Pin XLR (DMX), 1 x ¼” TRS Jack (Footswitch/MIDI)
- IP rating: IP20
- LED indicators: Illuminated EMU logo
- Power input: 5V DC via USB Type-C
- Max. power draw: 1.38W
- Max. current: 0.27A
- Device configuration and data input: EMU software
- Network speed: 10/100Base-T
- Art-Net output: Free 3 Year EMU software license
- DMX output: 1U (512 Channels) DMX
- Max. refresh rate: 44 frames per second (fps)
- Cooling method: Convection
- Environmental operating temperature: 0°C to 50°C / 32°F to 122°F
- Environmental operating humidity: 5 to 95% (non-condensing)
- Body material: ABS plastic
- Mounting: TS35 DIN rail mount
- Unit dimensions: 116mm x 87mm x 52mm
- Unit weight: 0.14kg / 0.31lbs
- Shipping dimensions: 235mm x 160mm x 68mm
- Shipping weight: 0.28kg / 0.62lbs
- Warranty: 3-year return to base manufacturer warranty
- Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
