ECOdrive OTi 85W 120-277 2A3 DX L DEXAL Constant Current Programmable Linear LED Driver (*2743WF / 57432)

Description

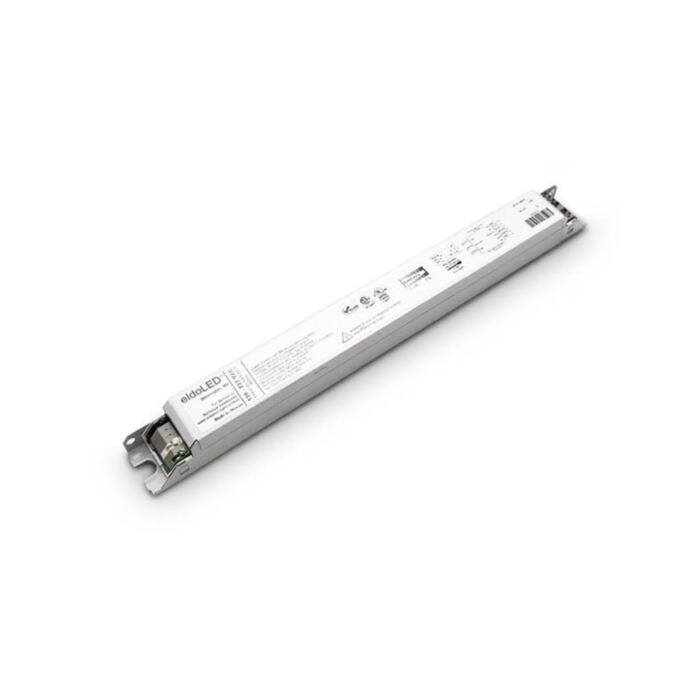

ECOdrive OTi 85W 120-277 2A3 DX L DEXAL Constant Current Programmable Linear LED Driver (*2743WF / 57432)

ECOdrive OTi 85W 120-277 indoor linear programmable LED drivers are exclusive to North America. All of these highly efficient constant current drivers dim to 1% with unique architectural grade features—such as Dim to Off, Vaux Output and Synchronized ON/OFF Timing—to meet the tough demands of your lighting projects. Our 85W indoor linear LED drivers’ programmable output current range (400-1400mA)—coupled with their universal input voltage range (120-277V and 347-480V)—provides you with a highly efficient and flexible drive solution for indoor lighting.

ECOdrive models are easily designable with dimming capabilities via DALI, D4i, 0-10V or LEDcode controls. Include a single configurable constant current LED output. The ECOdrive 85W indoor D4i certified (DALI) LED drivers, exclusive to North America, enables bi-directional communication between the driver and the fixture integrated component. Providing precise luminaire-specific data to light management systems, enabling the design of smart and interoperable fixtures and streamlining the configuration process.

Perfect for indirect and direct lighting, linear and recessed lighting applications.

Features:

• OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
• Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Dim to off, Soft start
• Programming doesn’t require powering up or connecting the driver to AC line voltage
• Specification grade dimming down to true 1% or 10% on 0-10V dimmers.
• Slim form factors
• Input voltage: Universal 120-277Vac 50/60Hz, 347Vac 50/60 Hz
• UL Class 2 output for safe operation

Specifications:

• Ambient Operating Temperature: -20ºC to 50ºC
• Max. Case Temperature (Tc): 85ºC (50kHrs)¹
• Max. Storage Temp: 70ºC
• Max. Relative Humidity (%): 85% non-condensing
• Transient Protection: NEMA SSL 1 – 2010, Non-Roadway 2.5KV
• EFT: IEC61000-4-4, Level 3
• UL Rating: Dry & Damp
• UL File number: E320395
• EMI Compliance: FCC Part 15 Class A
• Sound Rating: Class A

Input:

• Input Voltage (VAC): 120V-277V (+/- 10%)
• Frequency Range (Hz): 50 – 60 Hz (+/- 5%)

Output:

• Output Current (mA): 700-2300mA (1mA step), 1400mA default
• Output Voltage (VDC): 10-56VDC
• Output Ripple Current: <20% @ 2300mA
• Max. Output Power (W): 85W
• LED Power-Up Time: <1sec
• Load Regulation: <3%
• Line Regulation: <3%
• Over Voltage Protection: Yes, non-latching
• Over Load Protection: Yes, non-latching
• Output Short-Circuit Protection: Yes, non-latching
• Over Temperature Protection: Foldback at 105ºC

Dimming:

• Dimming Control: DALI-2/D4i
• Dimming Range: 1-100%
• Dimming Type: Digital
• Voltage Rating (DALI-2/D4i): 12V typ.
• Current Rating (DALI-2/D4i): 50mA (typ.), 62mA (max)
• Dim-to-Off Threshold: 0 (digital Level)
• Standby Power: 0.17W(120V); 0.35W(277V)
