Description

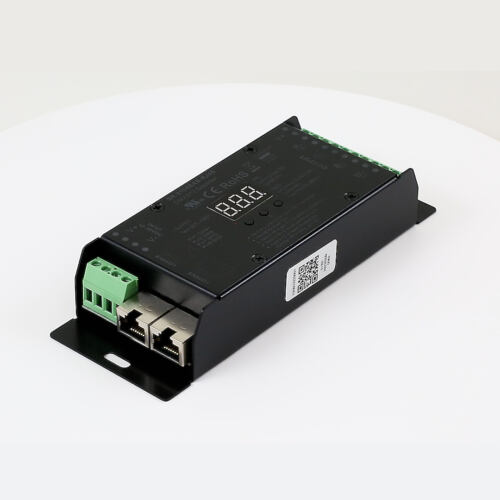

SIRS-E DMX RDM LED Decoder 4-Channel 8A for RGB & RGBW Lighting

The SIRS-E DMX RDM LED Decoder 4-Channel 8A delivers powerful and efficient control for professional LED lighting setups. With 4 high-output channels (8A each), this decoder lets you precisely manage RGB and RGBW LED strips or modules, making it ideal for both residential and commercial applications.

Advanced DMX512 & RDM Support in the SIRS-E DMX Decoder

This decoder fully complies with DMX512/1990 standards and supports the RDM protocol, allowing you to configure and diagnose remotely. Its easy-to-read digital display simplifies DMX address setup. You can assign addresses manually or remotely within the full 1–512 range.

Wireless LED Control with the SIRS-E DMX Decoder

You can control the SIRS-E DMX RDM LED Decoder 4-Channel 8A using RF remotes via WiFi or Bluetooth, offering flexibility for installations where access to the decoder may be limited. This feature streamlines lighting control without requiring physical contact.

Smooth Dimming and Configurable Output

Adjust the PWM output frequency anywhere between 200Hz and 35kHz to suit your lighting requirements. With 256 brightness levels and support for asynchronous color transitions, you can create seamless effects across a wide variety of LED configurations. Control up to four channels for RGB, RGBW, or tunable white lighting.

High Capacity and Certified Performance

This decoder handles input voltages between 12V and 36V DC, delivering up to 1152W across its 4 channels (4 x 8A). It’s designed for constant voltage LED systems and comes UL Recognized, with RoHS, CE, and FCC certifications for assured quality and safety. Backed by a 3-year warranty.

Features:

  • Supports DMX512 and RDM control
  • Digital display for easy setup
  • Wireless operation via WiFi and Bluetooth
  • 256 brightness levels with full driver control
  • Asynchronous color effects supported
  • Controls LED lighting with 1 to 4 channels
  • DMX address freely settable (1–512)
  • Adjustable PWM frequency (200Hz to 35kHz)
  • Modular design compatible with various LED modules

Technical Specification

  • Protocol:  DMX512 RDM LED Decoder
  • Type:  Constant Voltage
  • Output Channels:  Selectable 3 or 4
  • Input Voltage:  12~36 V DC
  • Output Current:  4 x 8 A
  • Output Power:  384-1152 W
  • Output To LED
  • PWM frequency:  200Hz-35 kHz (manually or remotely adjustable)
  • Part Number:  SR-2108EAS-RJ45
  • Certifications:  UL Recognized, RoHS, CE, FCC
  • Warranty:  3 Year

Box Content

  • SIRS-E® LED DMX RDM Decoder 4 Channel
  • Datasheet

Documents

Datasheet



SKU# SR-2108EAS-RJ45
