Chromateq TOUCH Ultra Thin Wall Mounted USB DMX Stand Alone Lighting Controller & Software (Download Only)

The new Chromateq TOUCH DMX Lighting control interface comes with a sleek design and visually intuitive multifunction touch-sensitive surface for all your indoor installations.

Available in two versions, 512 or 1024 channels (2×512). The Chromateq TOUCH 1024 interface controls 2 Universes across 5 zones. It offers instant playback of up to 40 custom programmed scenes per zone (or custom groups of zones chosen on the fly).  In page mode, its 5 pages of memory enable the TOUCH 1024 to store up to 200 scenes in memory using the Global Scene option.

* All Chromateq™ Lighting Management Software is Free and requires a Chromateq™ Device or Interface to transform your computer into an impressively adaptable and effective DMX Controller.

Main Features

  • Wall-Mounted Touch-Sensitive Lighting Controller
  • DMX Live & Stand Alone Controller
  • 512 or 1024 DMX Channels in Live and Stand-Alone Mode
  • LED Player, Pro DMX, Pixxem & Studio DMX Software compatible*
  • Stand-Alone Memory Capacity:  5K to 20K Steps
  • Ultra-thin, sleek 10mm panel depth
  • Fine Control Touch Wheel for RGB Colors, CCT, Speed, Dimmer
  • Accurate touch control wheel with 160 possible value adjustments
  • Buttons for selecting Play Scene, Color, Speed, Dimmer modes, and Pages
  • Scenes up to 8 per Zone
  • Pages, up to 5 with 8 scenes per page
  • Scene Recovery if the power is cut off / Default start scene
  • Clock schedule setup easily per hour, day, week, month, year, and repeat year.
  • Cross Fade time between scenes
  • Standby panel display animations
  • Auto blackout LED panel after 4s
  • 16-bit and fine channel management
  • Internal memory + Micro SD card slot
  • 5 Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority)
  • Real-Time Clock and calendar for each scene (Hour, Day, Week, Month, Year)
  • Infrared Remote, Light intensity (with optional sensor and remote)

Technical Specifications

General

  • DMX Output: 512 or 1024 Channels
  • Color: Black
  • Chassis: ABS, Glass Housing
  • Max Interface Connected: 1
  • Power Input: 5 to 24V DC, 0.2A / 5V

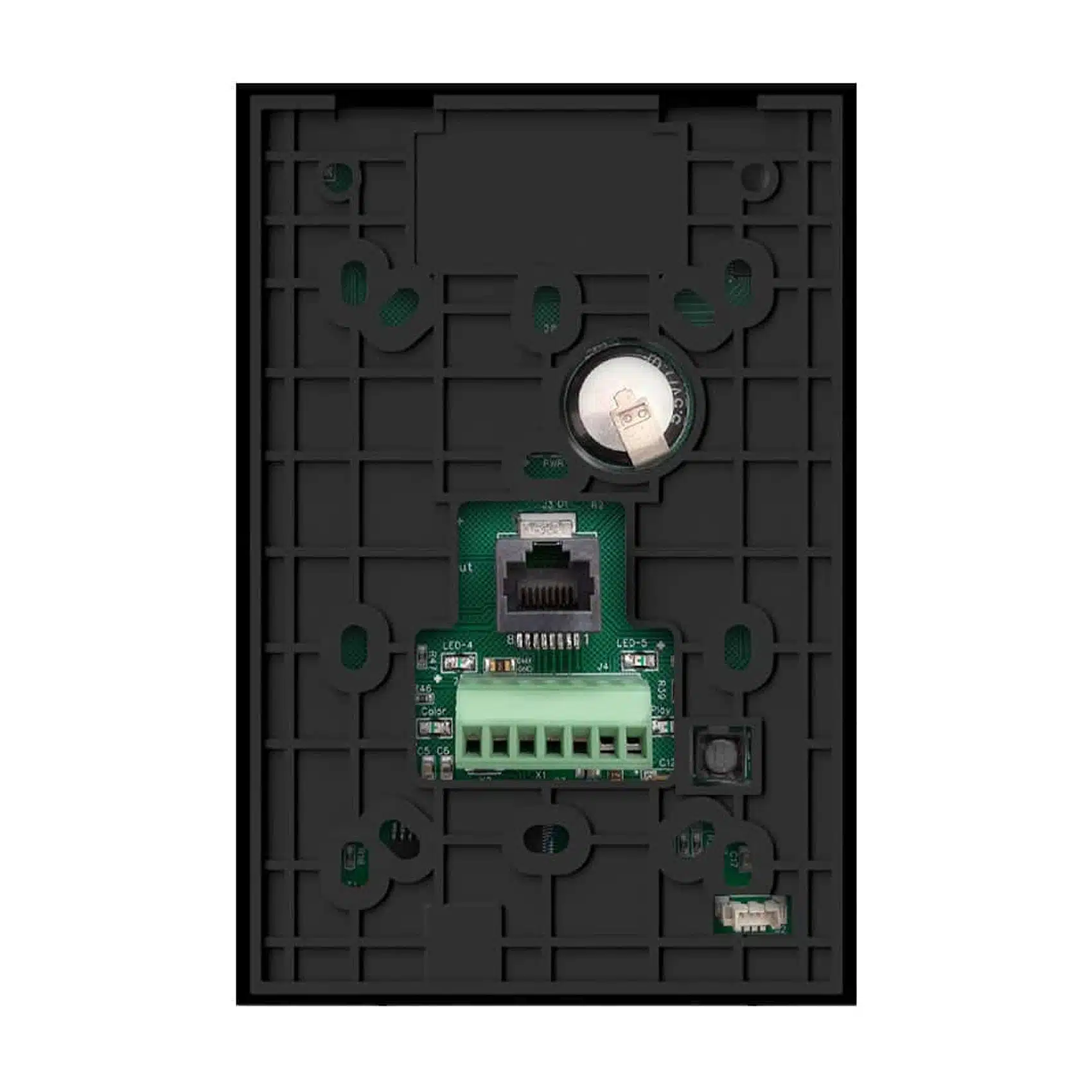

  • I/O Connectors:  USB-C, RJ45 (Contacts, Infrared), 7 Pin Terminal Block
  • Dimensions: 144 x 97 x 9 mm (5.67 x 3.82 x 0.4 in)
  • Weight: 0.2 Kg (7.0 oz)
  • Operating Temperatures: -40 to +85 C° / -40 to 185 F°
  • Certifications: CE, RoHS
  • 5 Year Warranty

Stand Alone

  • DMX Out (16-bit channels): 512 (1U. split x2) or 1024 (2U. 2×512)
  • Zone (Scene play a time, Stand Alone): 1 (For 512), Zone (Scene play a time, Stand Alone): 5 (For 1024)
  • ZONE combinations: No (For 512), ZONE combinations: Yes (For 1024)
  • Fine wheel control:  Yes, RGB color, RGBWA-UV, cold and warm white, CCT
  • Standby panel display animations:  Yes
  • Power: Input:  5~24V DC, 0.2A / Output: 5V DC

Memory (Stand Alone)

  • Memory Step capacity: 5K ~ 20K for 512, Memory Step capacity: 2K ~ 10K for 1024
  • Max Scene capacity: x40 (x8 per page) for 512, Max Scene capacity: x8 per Zone for 1024
  • Internal memory (No SD required):  Yes, 4Mb
  • SD Card expansion slot (Class 10 Micro SD):  Yes (FAT format, max. 256 GB, Class 10)

Triggers (Stand Alone)

  • Tactile buttons (5 Pages, 4 modes, 8 scenes):  Yes
  • RTC (Built-in Clock and Calendar):  Yes (with Hour, Day, Week, Month, Year)
  • Smart Contacts (on, on/off, release, start, priority):  4 (16 contacts max)
  • DMX In Trigger & Merge DMX:  Yes (signal from other DMX devices)
  • Commands from the Contacts (speed, dimmer):  Yes (speed, scene, dimmer, zone, blackout, pause)
  • Mode activation setting:  Yes

Package Contents

  • Chromateq TOUCH Wall Mount Controller
  • Software Included (Downloadable) – Windows, Mac OS X & Linux
  • USB to USB-C Cable

Optional Accessories

  • Infrared Remote Control
  • Infrared Receiver PCB

Downloadable Documentation:

Software Downloads
Product Brochure

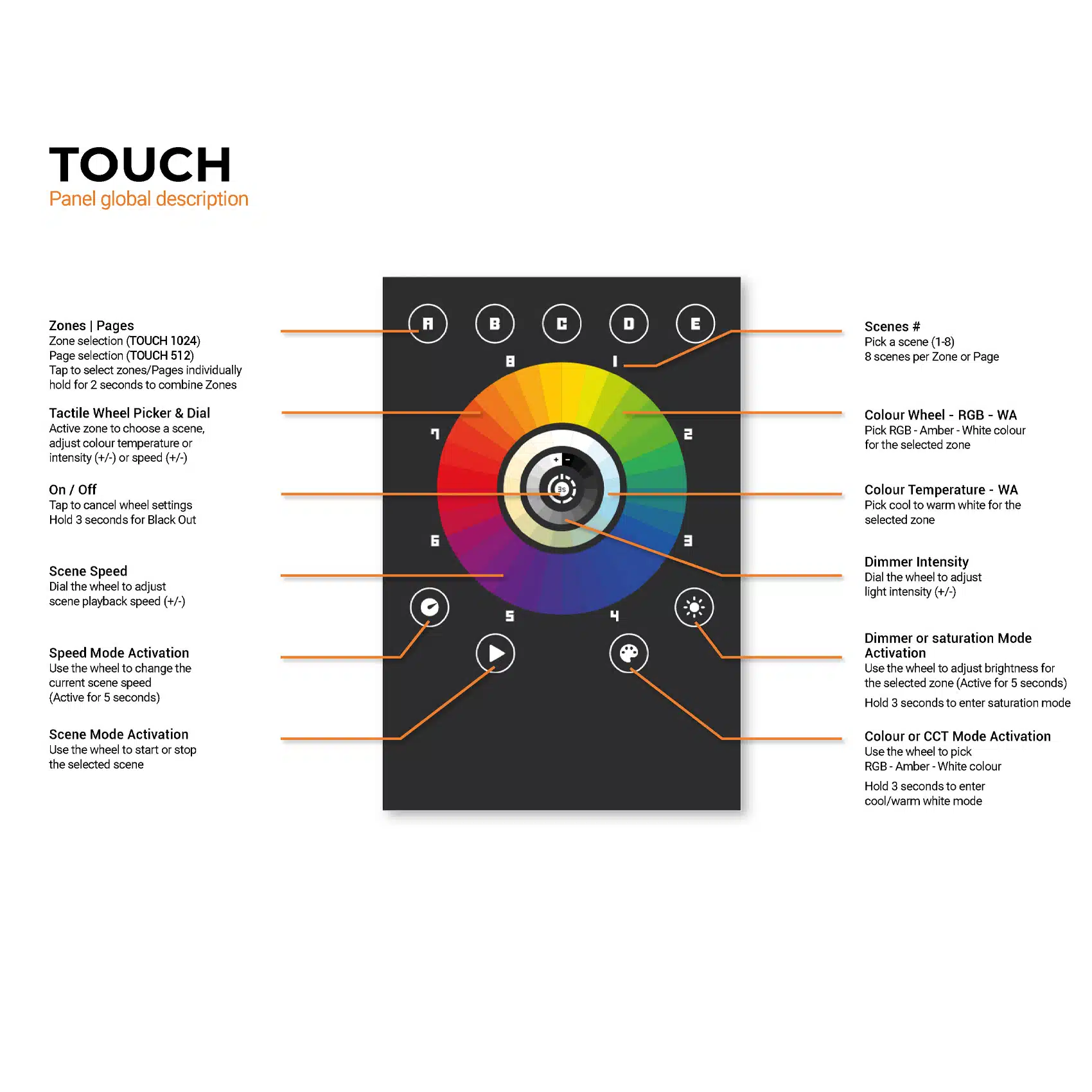

Panel Description
Datasheet (Coming soon…)

SKU# TOUCH 512 & TOUCH 1024
