Chromateq SLIM Wall Mounted USB DMX Stand Alone Interface & Software (Download Only)

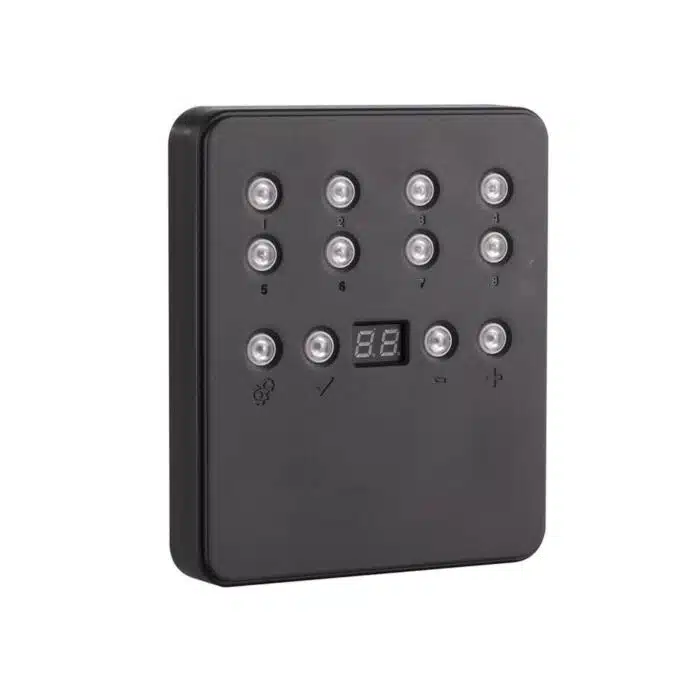

The SLIM Stand Alone interface is the ideal DMX512 control software package for all indoor installations and projects. It can be easily wall-mounted on any surface. On the front side, mechanical switch buttons and the LED Display use some nice LED with deep Blue color. All connections are inside the house and it can fit Europe and US wall plug standards.

It includes a powerful stand-alone mode to run scenes without a computer and trigger scenes scheduled by time or calendar. The interface is compatible with Windows and Mac OS X systems and has the CE safety certification.

The SLIM 512 and 1024 are compatible with all Chromateq software and can be integrated into scalable control systems designed for live performance or fixed installation, or deployed individually without a computer as an elegantly simple but sophisticated standalone control solution.

When connected to a computer, software remote control is available via Android and iOS devices with Chromateq’s Wi-Light 2 APP, with other Live trigger options including MIDI, RS232, UDP / Ethernet, Shortcut Keys, Audio Beat, and BPM.  SLIM 1024 enables control of Art-Net universes via a connected computer’s ethernet network port.

**All Chromateq™ Lighting Management Software is Free and requires a Chromateq™ Device or Interface to transform your computer into an impressively adaptable and effective DMX Controller.

Main Features

  • DMX Live & Stand Alone Controller
  • 512/1024 DMX Channels in Live mode
  • 512/1024 DMX Channels in Stand Alone mode
  • 2 Art-Net Universes in Live mode running LED Player or Pro DMX Software
  • Art-Net + DMX feature:  Play 2 x DMX universes + 2 x Art-Net universes (4 universes total)
  • LED Player, Pro DMX & Studio DMX Software compatible*
  • Stand Alone Memory capacity: 20K to 5K steps
  • 512 Max Scene capacity
  • Wall-mounted thin profile housing (19 mm)
  • SD Card reader (supports all FAT formats, Class 10 SD, up to 256 GB) (SD card not included)
  • 4 Mb of internal memory (min. capacity: 2,000 steps/1024 ch)
  • Splitter mode (2×512 DMX output)
  • Scene Speed, manual color (RGBW), page, and Dimmer modes
  • 8 trigger buttons with blue LED
  • 4 buttons for function menu navigation and mode selection
  • Standard Mini USB 2.0 (Input)
  • Master/Slave mode to interconnect and synchronize up to 32 interfaces (max 32768 DMX channels SLIM 1024, max 16384 DMX channels SLIM 512)

Stand Alone Features

  • SLIM 1024 5 Zone: Play 5 scenes at a time, SLIM 512 1 Zone: Play 1 scenes at a time
  • 5 Selectable modes: Scene trigger, pages, color, speed, dimmer
  • Scene selection with 8 touch buttons or Next (+) and Previous (-) buttons
  • Page and scene selection (10 pages of 8 triggers each)
  • Color selection (8 custom colors and a color wheel of 100 colors)
  • Scene speed and general Dimmer adjustment
  • Time Clock setting adjustable in Stand Alone
  • Cross Fade time between scenes
  • 16-bit and fine channel management
  • Automatic Scene Recovery if the power is accidentally cut off
  • Merging DMX input signals

Trigger options (PC + Stand Alone)

  • Real-Time Clock RTC and Calendar for each scene (Hour, Day, Week, Month, Year) for each scene (Stand Alone only)
  • 5 dry contacts to 5V (On, On/Off, Release or Restart scenes)
  • Up to 31 contacts when multiplexed
  • DMX input (DMX signal from another DMX device)
  • Infrared remote, Light intensity (with optional sensor, sold separately)

Technical Specifications

General

  • SLIM 512 DMX Output: 512 Channels, SLIM 1024 DMX Output: 1024 Channels

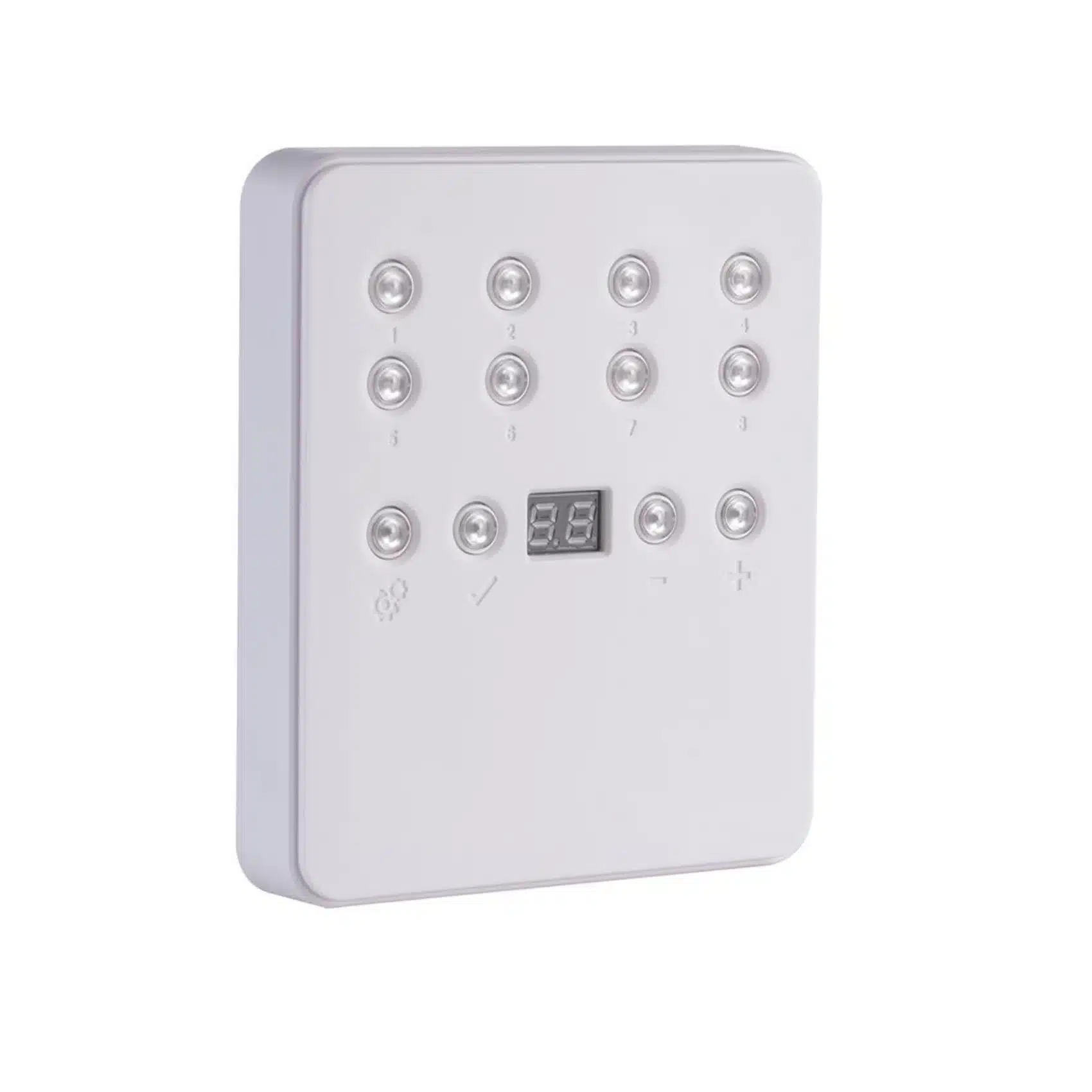

  • Color: White / Black
  • Chassis: ABS plastic with 4 mounting slots
  • Power Input:  5 to 24V – 0.2A (DC connector)
  • USB Connection:  Mini USB 2.0 (Input) – 5V DC
  • Connectors:  Screw terminals for all wire external connections
  • Dimensions:  11.00 x 12.70 x 1.90 cm (4.33 x 5.00 x 0.75 in)
  • Weight:  161 g (5.7 oz)
  • Operating temperatures: -40 to +85 Cº
  • IP Rating: IP40
  • Certifications: CE, RoHS, LVD
  • 5 Year Warranty

Stand Alone

  • SLIM 512 DMX Out (16-bit): 512 Channels, SLIM 1024 DMX Out (16-bit): 1024 Channels
  • SLIM 512 Zone (Play 1 scenes at a time): 1 Zone, SLIM 1024 Zone (Play 5 scenes at a time): 5 Zone
  • Max Device Connected (Wired as M/S): 32

DMX (Software & Live)

  • DMX (Software & Live)
    • SLIM 512 LED Player: 512 Channels + 512 Art-Net, SLIM 1024 LED Player: 1024 Channels (2×512) + 2×512 Art-Net
    • SLIM 512 Pro DMX: 512 Channels + 512 Art-Net, SLIM 1024 Pro DMX: 1024 Channels (2×512) + 2×512 Art-Net

Memory (Stand Alone)

  • Memory Step Capacity:  2K ~ 10K
  • Max Scene Capacity:  512
  • SD Card port (SD Card not Included)

Trigger (Stand Alone)

  • Buttons (mode, valid, select):  Yes
  • RTC, Clock, Calendar:  Yes
  • Wi-Light APP, UDP, JSON (Ethernet):  No
  • Smart Contacts (on/off, release, start):  5 (31 max)
  • DMX in & Merge DMX:  Yes
  • Master/Slave (Wired, 32 Devices max):  Yes
  • Mode & Clock Setting:  Yes
  • Infrared Sensor:  Optional
  • Light Intensity Sensor:  Optional

Software Options

  • Studio DMX:  3D Viewer (real-time lighting visualization)
  • Art-Net (Software & Live)
    • SLIM 512 LED Player: 1 Universe, SLIM 1024 LED Player: 2 Universe (2×512)
    • SLIM 512 Pro DMX: 1 Universe, SLIM 1024 Pro DMX: 2 Universe (2×512)
    • SLIM 512 Upgradable to SLIM 1024 on-site**
  • Live Triggers (via software):  MIDI, Midi Control, RS232, UDP / Ethernet, Shortcut Keys, Audio Beat, BPM

Software Download (Windows, Mac OS X & Linux)

Package Contents:

  • Chromateq SLIM Wall Mounted Interface
  • Software Included (Downloadable) – Windows, Mac OS X & Linux
  • USB to Mini USB Cable
  • Mini flathead screwdriver

Optional Accessories:

  • 9V DC Power Supply (bare wire)
  • 5V DC USB Power Supply
  • Infrared Remote Control
  • Infrared Receiver PCB

Documents:

SKU# SLIM 512, SLIM 1024
