Description

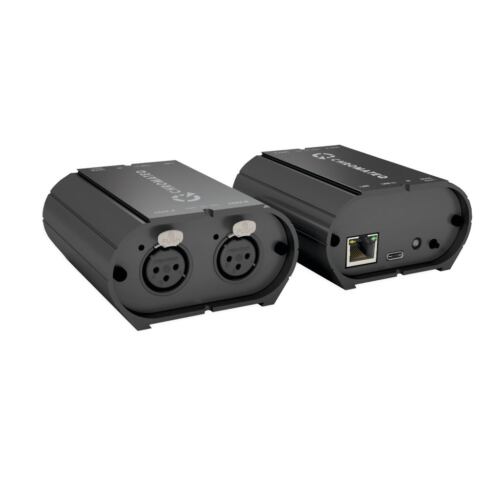

Chromateq PRONET-E Ethernet to DMX Stand-Alone Interface

The Chromateq PRONET-E Ethernet to DMX Stand-Alone Interface is a high-performance lighting control solution engineered for complex and demanding projects that require extensive DMX and Art-Net channel capacity. Ideal for professional installations in entertainment, architectural, and commercial environments, the PRONET-E offers seamless Ethernet-to-DMX conversion and robust standalone functionality. It integrates with Chromateq’s powerful software, supporting advanced features such as up to 24-hour audio and video timeline synchronization, MIDI Time Code (MTC), PC and clock-based triggers, and real-time timeline recording (Live Timeline Record). This allows for dynamic, precise lighting shows that adapt easily to multimedia cues and interactive elements.

Designed for reliability and flexibility, the PRONET-E ensures stable operation in permanent installations while offering advanced control options for live productions and pre-programmed scenes.



Features:

  • DMX Input: PC , DMX recording, DMX trigger
  • Standalone Mode: 2×512 (splitter), 1024, 512 outputs, 16-bit DMX channels
  • Art-Net, sACN: Yes, PC
  • NODE Art-Net sACN: Art-Net and sACN to DMX decoder, 2×512 channels (2 DMX universe)
  • Supported Modes: UDP, Broadcast, Unicast, Multicast, fixed IP, DHCP
  • Infrared Receiver: Infrared remote control (available as an option)
  • Infrared Options: 10 scene selections, speed, intensity Main dimension and next scene
  • Communication UDP: Ethernet protocol (UDP) with a list of possible commands for CLUB-E
  • Compatibility: 8 and 16-bit DMX devices
  • RDM (Remote Device Management, bi-directional DMX communication): Yes, with Pro DMX 2 only
  • Wi-Light 2: Yes
  • WEB control with Wi-Light 2: No



Technical Specifications:

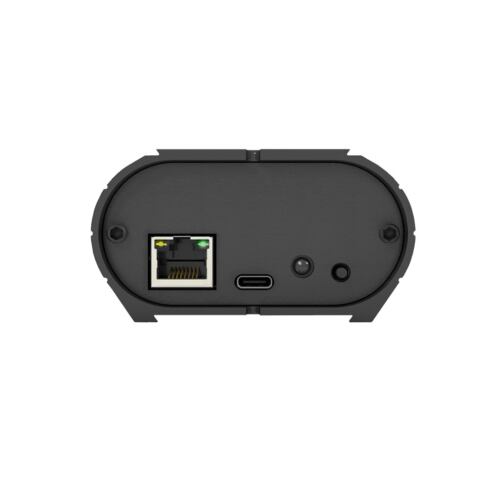

  • Input: USB-C and RJ45 Ethernet (10Mb/s)

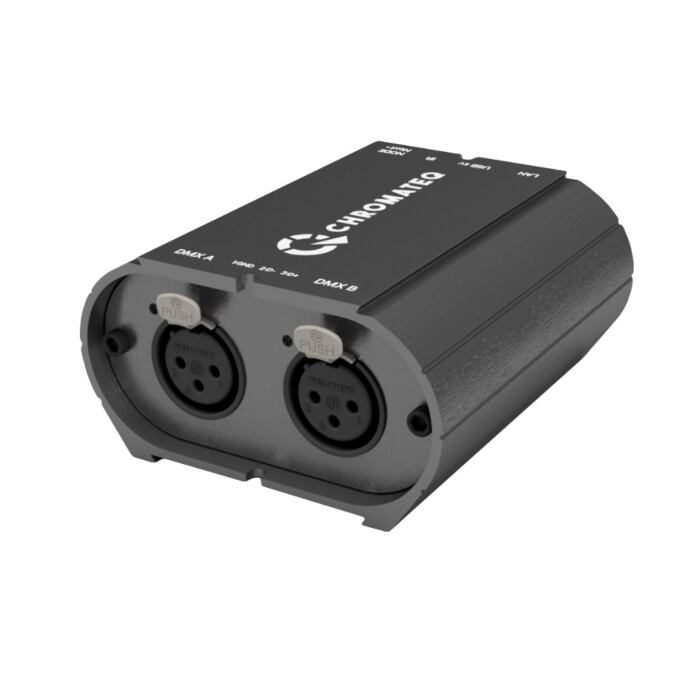

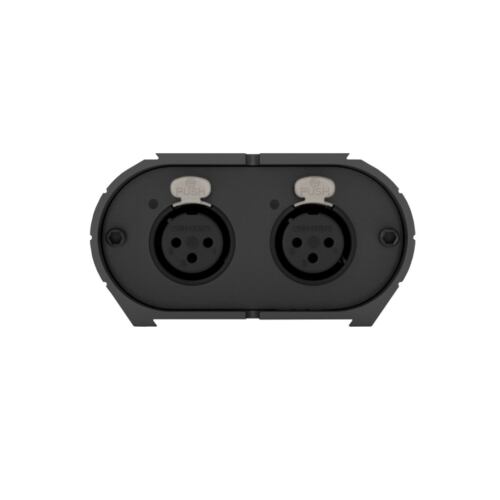

  • DMX Outputs: 2×512 or 1024 on 3-pin XLR (XLR 5 optional)
  • DMX Mode: 2×512, 1024 or 512 In/Out (PC + standalone)
  • Internal Memory Capacity: 100 ~ 1024 steps
  • CPU: 32-bit processor
  • Power Supply: 5V, 0.3A via USB-C
  • Index of Protection: IP22
  • Dimensions (mm): H: 45 (1.77 in ) / L: 90 (3.54 in) / l: 80 (3.15 in)
  • Gross Weight: 0.31 Kgs (0.68 lbs)
  • Power / Consumption: 1.5 W
  • High Voltage Protection: Yes, fuses and diodes
  • Case: Anthracite Grey, Brushed Aluminum
  • Environment of Use: Interior
  • Storage: Store dry
  • Temperature of Use: – 40 to +85 C°
  • Certifications: CE, RoHS
  • International Guarantee: Yes, 5 years
  • Compatibility of Systems: Windows (7 and higher), MAC OS X (10.13 and higher) and Linux (64 Bits, Debian, Redhat, Archlinux, Raspberry Pi)



Documents:



SKU: PRONET-E
