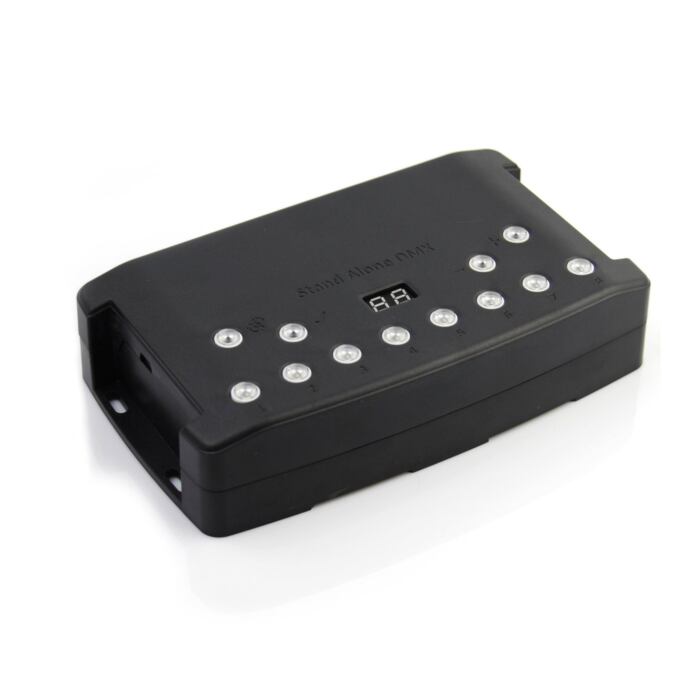

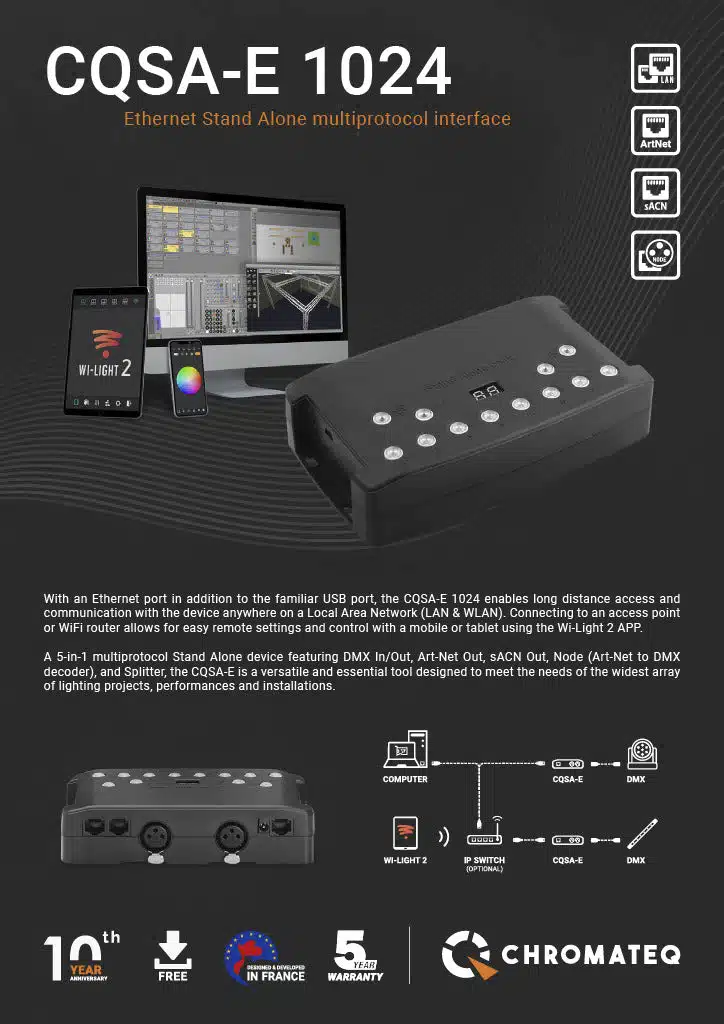

Chromateq CQSA USB DMX Ethernet Series: Stand-Alone Interfaces with Software

Thanks to its powerful Stand-Alone mode, the Chromateq CQSA USB DMX is the definitively perfect DMX controller for all entertainment and architectural projects. Hardware is compatible with LED Player, Pro DMX, and Studio DMX software, so the interface is suitable for all Live applications and fixed installations. The interface can play back a complete project without a PC, and the additional SD card slot allows for the possibility of extending the memory capacity. Users can customize the interface functions and modes; it is possible to choose what mode to activate or not in Stand Alone from any of the available modes (Trigger, Page, Color, Dimmer, Speed) and load the modes of your choice in memory.

*All Chromateq™ Lighting Management Software is Free and requires a Chromateq™ Device or Interface to transform your computer into an impressively adaptable and effective DMX Controller.  ** Requires the customer’s email and serial number

CQSA 512

CQSA 1024

Main Features
  • DMX Live & Stand Alone Controller
  • 512 DMX Channels  in Live mode
  • 512 DMX Channels  in Stand Alone mode
  • 1 Art-Net Universe in Live mode running LED Player or Pro DMX Software
  • 4 Art-Net Universes in Live mode running Pixxem software
  • Art-Net + DMX feature:  Play 1 x DMX universes + 1 x Art-Net universes (2 universes total)
  • LED Player, Pro DMX, Pixxem & Studio DMX Software compatible*
  • Stand Alone Memory Step capacity:  20K to 5K steps
  • 512 Max Scene capacity
  • Wi-Light 2 APP from mobile (Android + iOS, LAN, WLAN, Internet) in Live mode
  • Pixel Mapping & Video Mixing
  • SD Card reader (supports all FAT formats, Class 10 SD, up to 256 GB) (SD card not included)
  • Internal memory (No SD card required)
  • 128 devices max on Network, 12 max on USB
  • DMX Live & Stand Alone Controller
  • 1024 DMX Channels (2×512) in Live mode
  • 1024 DMX Channels (2×512) in Stand Alone mode
  • 2 Art-Net Universes in Live mode running LED Player or Pro DMX Software
  • 8 Art-Net Universes in Live mode running Pixxem software
  • Art-Net + DMX feature:  Play 2 x DMX universes + 2 x Art-Net universes (4 universes total)
  • LED Player, Pro DMX, Pixxem & Studio DMX Software compatible*
  • Stand Alone Memory Step capacity:  10K to 2K steps
  • 512 Max Scene capacity
  • Wi-Light 2 APP from mobile (Android + iOS, LAN, WLAN, Internet)
  • Node 2 ports, Art-Net to DMX decoder and converter (DHCP, Static IP)
  • Multi Zones Play up to 5 scenes simultaneously (Stand Alone)
  • Pixel Mapping & Video Mixing
  • SD Card reader (supports all FAT formats, Class 10 SD, up to 256 GB) (SD card not included)
  • Splitter mode and merging DMX
  • Internal memory (No SD card required)
  • 12 devices max on USB

Stand Alone Features
  • 6 selectable modes:  Scene trigger buttons (8), Pages (10), Colour (99 colors + 8 RGBW), speed, General dimmer
  • Time Clock setting adjustable in Stand Alone
  • Cross Fade time between scenes
  • 16 bits and fine channel management
  • Automatic Scene Recovery if the power is cut off
  • Setting and configuration via Wi Light 2 (via software in Live mode)
  • Master/Slave mode (up to 32 devices for 32 universes)
  • 6 selectable modes:  Scene trigger buttons, Pages (10), Zones (5), Colour (99 colors + 8 RGBW), speed, General dimmer
  • Time Clock setting adjustable in Stand Alone
  • Cross Fade time between scenes
  • 16 bits and fine channel management
  • Automatic Scene Recovery if the power is cut off
  • Setting and configuration via Wi Light 2
  • Master/Slave mode (Wired, 32 devices max)

Trigger options (PC + Stand Alone)
  • Wi-Light APP from mobile devices (Android + iOS) in Live mode
  • 8 Scene or Colour buttons for direct selections
  • Real-Time Clock RTC and Calendar (Hour, Day, Week, Month, Year) for each scene (Stand Alone Only)
  • 7 contacts on 3 to 5V (On, On/Off, Release, Restart, Priority)
  • Up to 127 contacts when multiplexed
  • Infrared remote, Light intensity (with optional sensor, sold separately)
  • Master/Slave mode (up to 32 devices combined in Stand Alone)
  • Commands from the Contacts (Speed, scene, dimmer)
  • Wi-Light APP from mobile devices (Android + iOS)
  • 8 Scene or Color buttons for direct selections
  • Real-Time Clock RTC and Calendar (Hour, Day, Week, Month, Year) for each scene (Stand Alone Only)
  • 7 contacts on 3 to 5V (On, On/Off, Release, Restart, Priority)
  • Up to 127 contacts when multiplexed
  • DMX In (Signal from another DMX device)
  • Infrared remote, Light intensity (with optional sensor, sold separately)
  • Master/Slave mode (up to 64 devices combined in Stand Alone)
  • Commands from the Contacts (Speed, scene, dimmer, zone)
  • RS232 triggers in PC and Stand Alone

General Specifications
  • DMX Output:  512 Channels
  • USB:  Yes
  • Color:  Black
  • Chassis:  Black ABS plastic with 4 mounting slots
  • Power Input:  5 to 24V – 0.2A (DC connector)
  • USB Connection:  Mini USB 2.0 (Input) – 5V DC

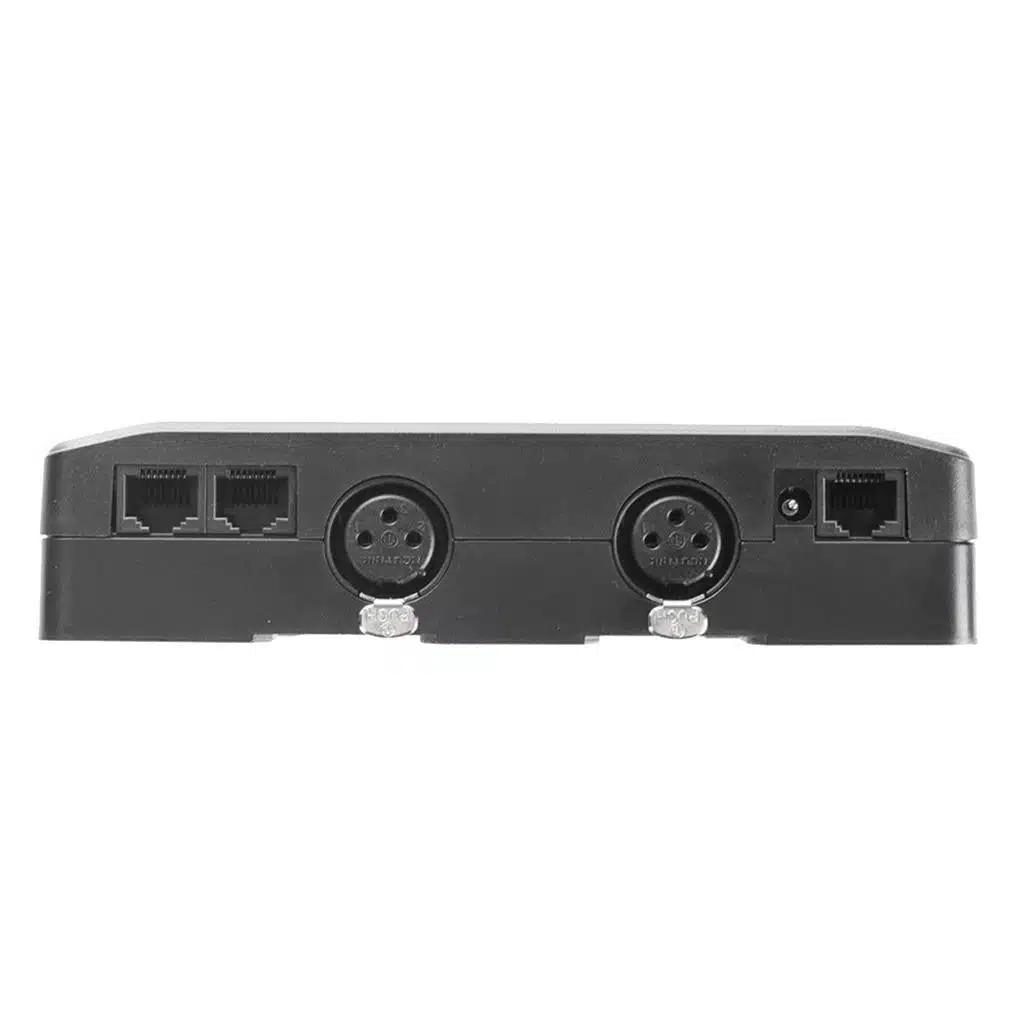

  • Connectors:  2 XLR3 and RJ45 (Triggers, I/O)
  • Dimensions:  9.70 x 16.60 x 3.80 cm (3.82 x 6.54 x 1.49 in)
  • Weight:  200 g (7.10 oz)
  • Operating temperatures: -40 to +85 Cº
  • IP Rating: IP40
  • Certifications: CE, RoHS, LVD
  • 5 Year Warranty
  • DMX Output:  1024 Channels
  • USB:  Yes
  • Color:  Black
  • Chassis:  Black ABS plastic with 4 mounting slots
  • Power Input:  5 to 24V – 0.2A (DC connector)
  • USB Connection:  Mini USB 2.0 (Input) – 5V DC
  • Connectors:  2 XLR3 and RJ45 (Triggers, I/O)
  • Dimensions:  9.70 x 16.60 x 3.80 cm (3.82 x 6.54 x 1.49 in)
  • Weight:  200 g (7.10 oz)
  • Operating temperatures: -40 to +85 Cº
  • IP Rating: IP40
  • Certifications: CE, RoHS, LVD
  • 5 Year Warranty

Stand Alone
  • DMX Out (16-bit): 512 Channels
  • Zone (Play 1 scene at a time):  1 Zones
  • Max Device Connected:  32 (Wired as M/S on RJ1)
  • DMX Out (16-bit): 1024 Channels
  • Zone (Play 1 scene at a time):  5 Zones
  • Max Device Connected:  32 (Wired as M/S on RJ1)
  • DMX (Software & Live)
    • LED Player:  1024 Channels (2×512)
    • Pro DMX:  1024 Channels (2×512)
    • PIXXEM:  1024 Channels (2×512)

Software Options
  • Studio DMX:  3D Viewer (real-time lighting visualization)
  • Art-Net (Software & Live)
    • LED Player:  1 Universe (1×512)
    • Pro DMX:  1 Universe (1×512)
    • Pixxem:  4 Universes (4×512)
  • Live Triggers (via software):  MIDI, MIDI Control, RS232, UDP / Ethernet, Shortcut Keys, Audio Beat, BPM
  • Upgrades: Upgradable to 1024 channels on site**
  • Studio DMX:  3D Viewer (real-time lighting visualization)
  • Art-Net (Software & Live)
    • LED Player:  2 Universes (2×512)
    • Pro DMX:  2 Universes (2×512)
    • Pixxem:  8 Universes (8×512)

Trigger (Stand Alone)

  • Buttons (mode, valid, select): Yes
  • RTC, Clock, Calendar: Yes
  • Smart Contacts (on/off, release, start): 7 (127 max)
  • DMX in & Merge DMX: Yes
  • Master/Slave (Wired, 32 devices max)
  • Mode & Clock Setting: Yes
  • Infrared Sensor: Optional
  • Light Intensity Sensor: Optional
  • RS232 port: Yes

Memory (Stand Alone)

  • Memory Step Capacity: 5K ~ 20K
  • Max Scene Capacity: 512
  • SD Card port (SD Card not Included)

Software Download (Windows, Mac OS X & Linux)

*All Chromateq™ Lighting Management Software is Free and requires a Chromateq™ Device or Interface to transform your computer into an impressively adaptable and effective DMX Controller.  ** Requires the customer’s email and serial number

Package Contents

  • Chromateq CQSA USB DMX Interface
  • Software Included (Downloadable) – Windows, Mac OS X & Linux
  • USB to Mini USB Cable

Optional Accessories

  • 5V DC USB Power Supply
  • 9V DC Power Supply (UL Certified)
  • Infrared Remote Control
  • Infrared Receiver PCB

Documents

SKU# CQSA Series, CQSA 512, CQSA 1024
