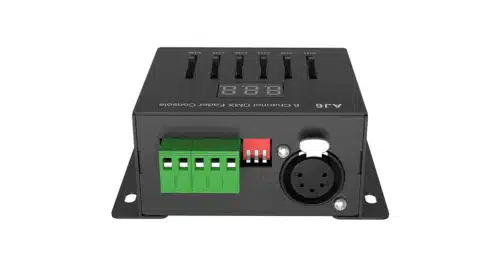

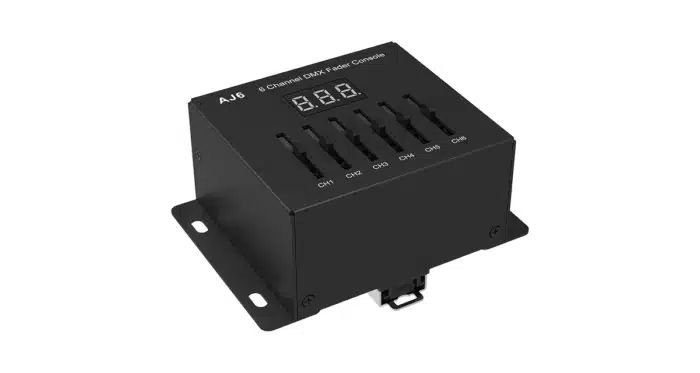

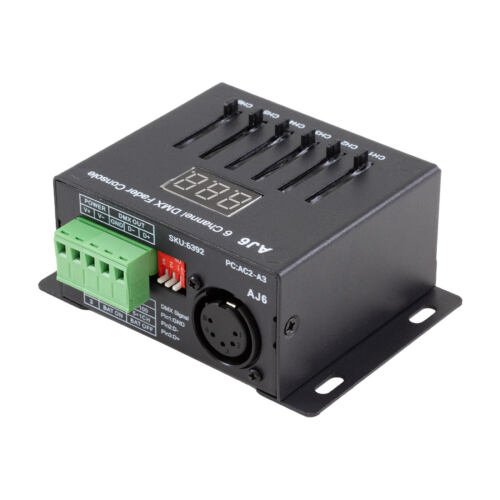

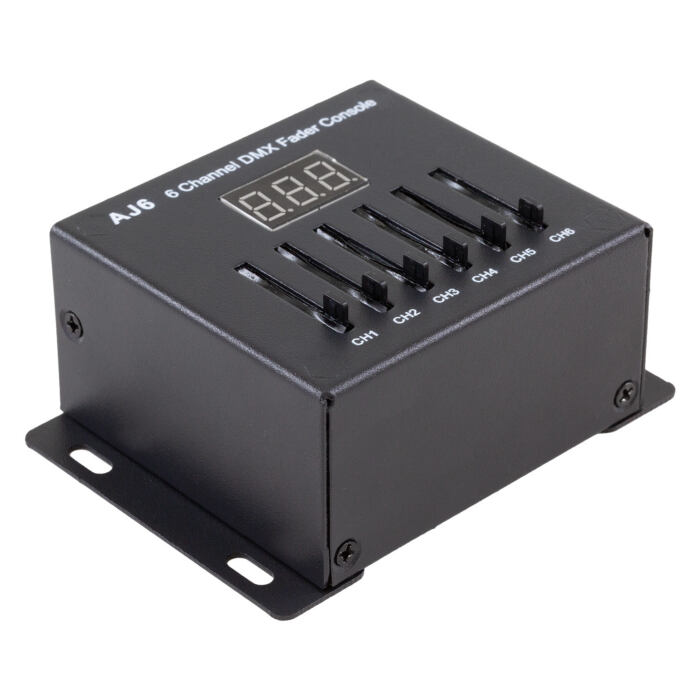

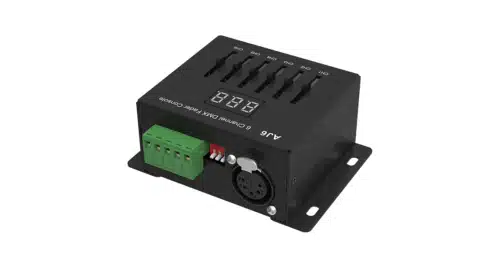

AJ6 – 6 Channel DMX Sliding Fader Console

AJ6 – 6 Channel DMX Sliding Fader Console

The AJ6 6 Channel DMX Sliding Fader Console is a compact, cost-efficient lighting controller designed for simple operation and dependable performance. Ideal for permanent installations, workshops, on-site troubleshooting, and sample testing, this mini DMX console delivers professional control in an easy-to-use format.

Powered by either three AAA batteries or an external 5–24V DC power supply, the AJ6 provides flexible deployment wherever lighting control is required.

Key Features

• Cost-efficient 6-channel mini DMX fader console
• Simple, user-friendly operation suitable for both beginners and professionals
• Supports permanent installation with mounting brackets
• Ideal for testing, troubleshooting, and workshop environments
• Dual power options: 3 × AAA batteries or 5–24V DC external supply
• 3-digit LED display shows either 0–100% brightness or DMX000–255 values (configurable via DIP switch)
• Selectable 6-channel mode or 5-channel mode with master brightness control

Performance & Electrical

Input Voltage: 5–24V DC or 3 × AAA batteries
Work Current: <10mA
Output Signal: DMX512
Channels: 6

Design & Installation

• Compact form factor for easy integration into control setups

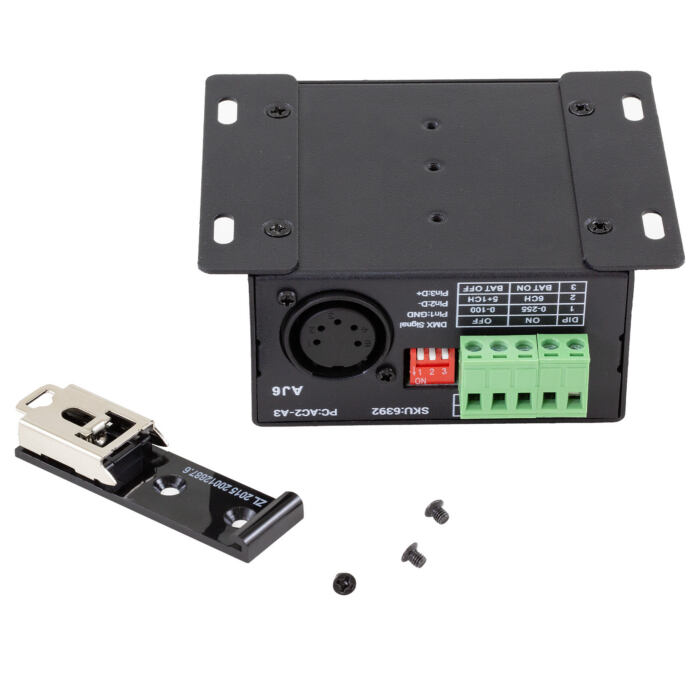

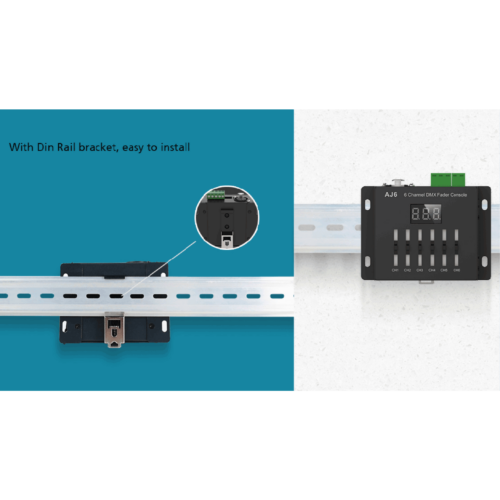

•  DIN rail mounting compatible (TS-35/7.5 or TS-35/15)
•  Clear digital display for real-time monitoring
•  Sliding faders provide precise channel control

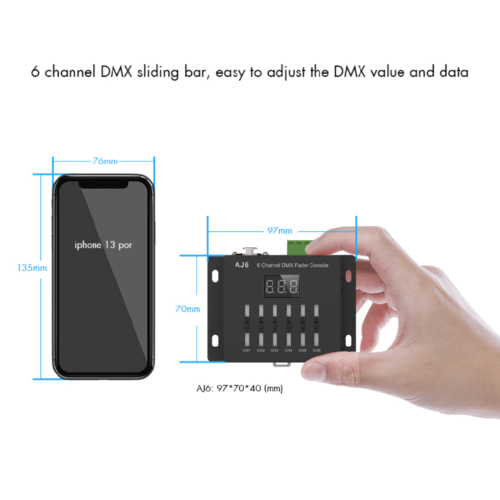

• Size: 97 × 70 × 40mm
• Weight: 0.304kg
• IP Rating: IP20

Safety & Reliability

• Certified to CE, EMC, and RED standards
• Reverse polarity protection
• Backed by a 3-year warranty
