Description

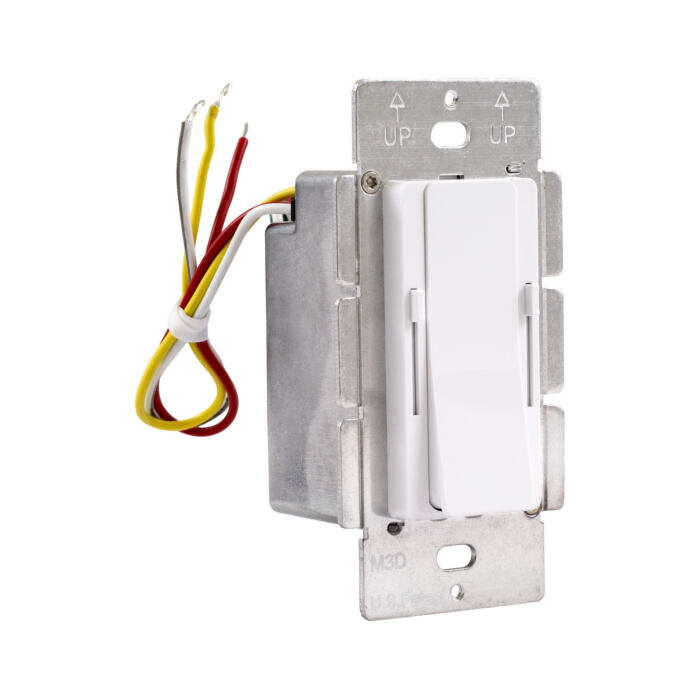

24V 96W LED Driver & CCT Wall Dimmer Switch, 2-in-1 Constant Voltage PWM Power Supply for Tunable White LED Strip Lights, Single Pole & 3-Way Compatible, SIRS-E SDD-CCT

The SDD-CCT Serie is a 2-in-1 constant voltage LED driver and dimmer designed for tunable white LED lighting applications. It combines power delivery, dimming, and color temperature adjustment in one compact wall-mounted unit.

This driver and dimmer system delivers up to 96W of output power with 16KHz PWM dimming and a gamma 2.2 dimming curve for smooth, flicker-free performance. Built-in active PFC helps support efficient operation, while integrated protection functions help guard against short circuit, overload, and over-temperature conditions.

The SDD-CCT Serie supports standard and 3-way dimming systems and includes an adjustable output voltage knob for fine-tuning voltage within the supported range. Its integrated design helps eliminate compatibility issues between separate drivers and switches, making it suitable for dry and damp location LED lighting installations.

Features:

  • Driver and dimmer combined in one integrated unit
  • Constant voltage PWM output for LED lighting applications
  • Dimming and color temperature adjustment function
  • 0.3% to 100% dimming range
  • 16KHz PWM output with gamma 2.2 dimming curve
  • Flicker-free performance
  • Built-in active PFC function
  • Preset dimmer with on and off switch
  • Compatible with 3-way switching systems
  • Fine-tune output voltage adjustment
  • Short circuit, overload, and over-temperature protection
  • Cooling by free air convection
  • Suitable for dry and damp locations
  • 5-year warranty

Specifications:

  • Model: SDD-24096-CCT and SDD-48096-CCT
  • Product Family: SDD-xx096-CCT
  • Output Type: Constant Voltage
  • Output Power: 96W
  • Input Voltage: 120VAC
  • Input Frequency: 60Hz
  • Output Voltage: 24V adjustable from 24V to 26V or 48V adjustable from 48V to 50V
  • Rated Current: 4A at 24V or 2A at 48V
  • Voltage Tolerance: ±0.5V
  • Load Regulation: ≤ 1%
  • Line Regulation: ≤ 0.5%
  • Power Factor at Full Load: ≥ 0.99
  • THD at Full Load: ≤ 10%
  • Efficiency at Full Load: 91.0% for 24V model and 92.0% for 48V model
  • Maximum AC Current: 0.9A
  • Leakage Current: <0.5mA
  • Working Temperature: -40°C to +60°C
  • Working Humidity: 20% to 95% RH non-condensing
  • Certifications: UL, cUL, FCC, Class P, Class 2, SELV, RoHS, Reach
  • Safety Standard: UL8750 and CAN/CSA-C22.2 No.250.13

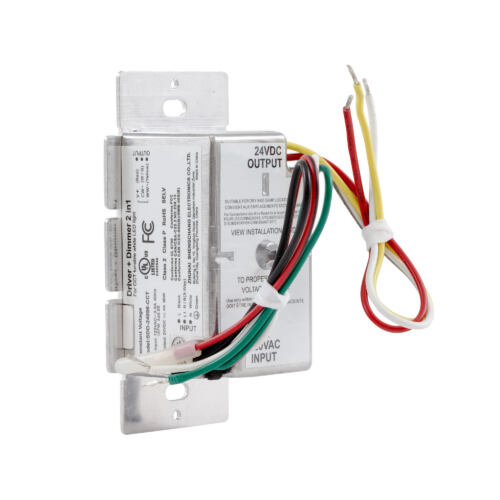

  • Input Wires: Black L, Red/Black L1, White N, Green FG
  • Output Wires: Red V+, White/Gray CW-, Yellow WW-
  • Dimensions: 105mm x 54mm x 52mm
  • Net Weight: 0.25kg

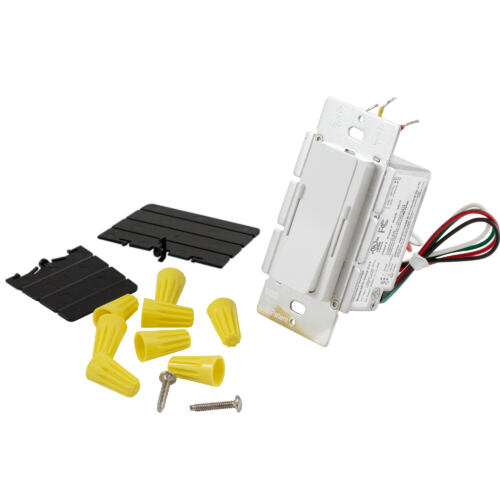

Box Content:

  • 1 SDD-24096-CCT driver
  • Instructions
  • Mounting hardware

Documents:

Datasheet:

SKU:SDD-24096-CCT
