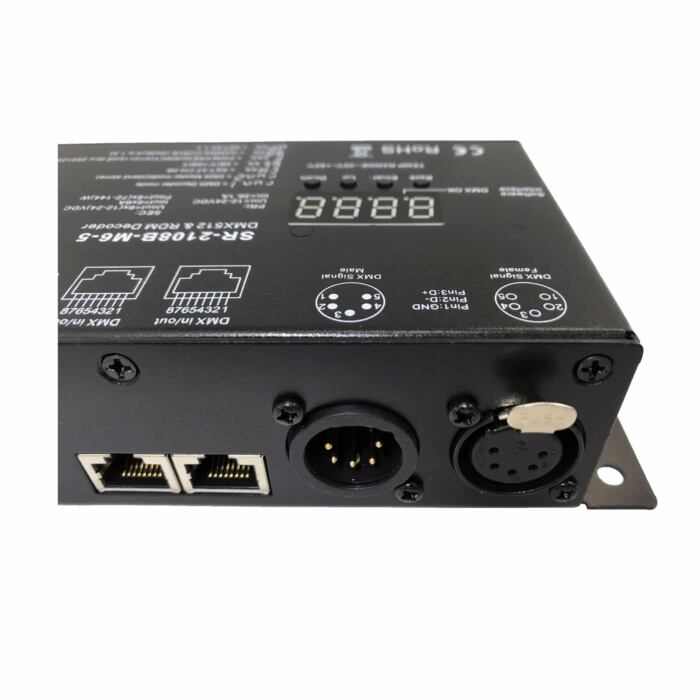

SIRS-E 6-Channel DMX RDM Decoder – SIRS-E RGB/RGBW Standalone LED Controller

The SIRS-E 6-Channel DMX RDM Decoder is a versatile and reliable solution for professional LED lighting control. Designed to work with RGB, RGBW, and RGBWW LED strips or modules, this decoder supports both DMX512 and RDM protocols, offering smooth dimming, flexible configuration, and high power capacity up to 864W.

Whether you’re managing a dynamic multi-zone installation or a standalone lighting setup, this 6-Channel DMX RDM Decoder gives you full control. It supports both DMX decoder mode (Run 1) and standalone DMX master mode (Run 2), making it ideal for architectural, stage, or residential lighting systems

Key Features

  • DMX512 and RDM support for advanced lighting control
  • Two operating modes: decoder mode and standalone master mode
  • 6 output channels, 6A per channel (total power: 432W @12V / 864W @24V)
  • Selectable 8-bit or 16-bit PWM resolution for ultra-smooth dimming
  • Adjustable PWM frequency from 500Hz to 35kHz – flicker-free performance
  • Supports asynchronous color change effects
  • Digital display for easy DMX address setting (1–512)
  • Modular design – compatible with various LED modules
  • Control 1 to 6 channels for single color, RGB, RGBW, or RGBWW LEDs
  • 256 brightness levels for each channel
  • Constant voltage operation: 12–24V DC

Perfect for Multi-Zone DMX Lighting Applications

This is ideal for complex installations requiring independent or synchronized lighting across multiple zones. It’s a great choice for stage lighting, commercial projects, retail displays, or architectural environments where flexible, reliable LED control is a must.

Simple Installation and Setup

It features a user-friendly design with a built-in digital display for quick DMX address setup. Its modular layout makes integration with various LED modules fast and hassle-free, ideal for both professionals and DIY installers.

Technical Specifications

  • DMX512 LED Decoder
  • Constant Voltage
  • Input Voltage: 12~24V DC
  • Output Current: 6 x 6A
  • Output Power: 432-864W
  • Output: To LED
  • Flicker-Free: Adjustable Frequency – 500Hz-35kHz
  • Part Number: SR-2108B-M6-5
  • Certifications: UL Recognized, RoHS, CE
  • Warranty: 3 Year
  • Part Number: SR-2108B-M6-5

Box Content

  • SIRS-E® LED DMX RDM Decoder
  • Datasheet

Documents



SKU# SR-2108B-M6-5
