Description

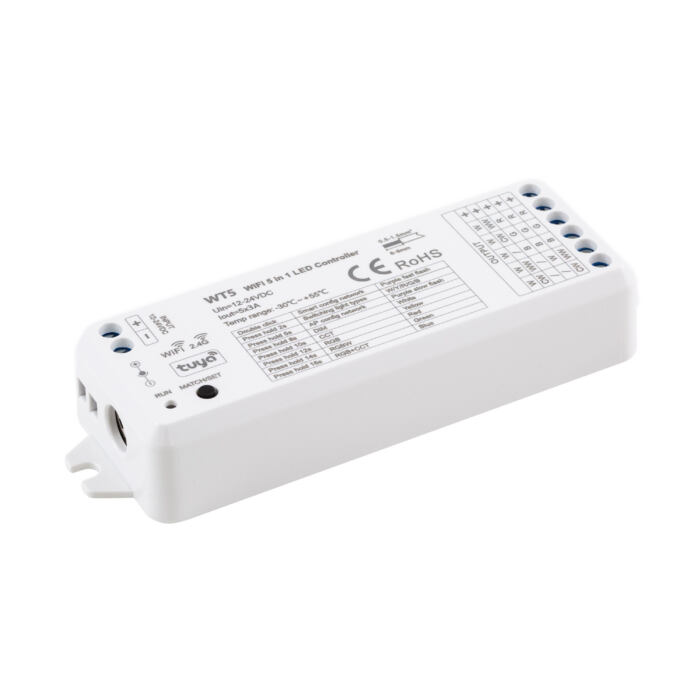

SIRS-E WiFi + RF 5-in-1 LED Controller for DIM, CCT, RGB, RGBW and RGB+CCT LED Strips | WT5

The WT5 is a five-channel constant-voltage LED controller designed for flexible control of single-color, dual-color CCT, RGB, RGBW and RGB+CCT LED lighting systems.

Operating from 12 to 24VDC, the controller delivers up to 3A per channel with smooth 4096-level dimming. Users can adjust brightness, color, color temperature, saturation and lighting scenes through the Tuya Smart or Smart Life app.

Integrated WiFi and 2.4GHz RF connectivity supports optional RF remotes and allows the WT5 to operate as a WiFi-to-RF converter for synchronized control of compatible RF LED controllers and dimming drivers. Voice control is supported through Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu.

Features:

  • Five selectable operating modes for DIM, CCT, RGB, RGBW and RGB+CCT lighting
  • Tuya Smart and Smart Life app control
  • Brightness, RGB color, color temperature and saturation adjustment
  • Editable static scenes and dynamic lighting effects
  • Timer, schedule, delayed switching and music synchronization functions
  • Voice control compatibility with Amazon Alexa and Google Assistant
  • Optional 2.4GHz RF remote control
  • WiFi-to-RF converter functionality for compatible RF controllers and dimming drivers
  • Smooth 4096-level logarithmic dimming
  • Selectable 3-second or 0.5-second light switching fade
  • Reverse-polarity, over-temperature and short-circuit protection

Specifications:

  • Input Voltage: 12 to 24VDC
  • Input Current: 15.5A
  • Output Type: Constant voltage
  • Output Channels: 5
  • Output Current: 3A per channel
  • Output Power: 5 x 36 to 72W
  • Control Signal: WiFi and RF 2.4GHz
  • RF Control Distance: Up to 30m in open space
  • Dimming Range: 0 to 100%
  • Dimming Resolution: 4096 levels
  • PWM Frequency: 1000Hz default
  • Dimming Curve: Logarithmic
  • Operating Temperature: minus 30°C to plus 55°C
  • Dimensions: 114 x 38 x 20mm
  • Certifications: CE and RoHS
  • Warranty: 5 years

Box Content:

  • 1 WT5 RF Controller
  • User Manual

Documents:

SKU# WT5
