Description

SIRS-E DMX XLR Stage Lighting Control Cable – 4 Conductor 22AWG Shielded (2 Pair + Drain Wire) for Reliable Signal Transmission

The SIRS-E DMX XLR ProDMX-CAB-UL  Stage Lighting Control Cable is a high-performance DMX512 2-pair control cable, engineered for professional lighting control applications where precision, reliability, and durability are essential. Whether you’re working in stage lighting, entertainment venues, theaters, or architectural installations, this cable delivers the exceptional signal integrity needed for flawless DMX512 communication.

Designed with thin, shielded construction, the ProDMX-CAB-UL minimizes signal interference and ensures stable, uninterrupted data transmission. Its 22-AWG stranded bare copper conductors offer superior conductivity and flexibility, making it easy to route through complex lighting setups while maintaining optimal performance.

Crafted in the USA with premium materials, this cable meets the highest industry standards, ensuring long-lasting durability and performance even in demanding environments. The robust shielding provides protection against electromagnetic interference (EMI), reducing signal disruptions that could impact lighting control precision.

Ideal for lighting designers, installers, and technicians, the ProDMX-CAB-UL is the perfect choice for professionals who require a dependable, high-quality DMX control cable. Whether you’re setting up an elaborate stage production, a concert venue, or an architectural lighting project, this cable provides seamless, interference-free DMX control, ensuring your lighting system operates at its best.

With a commitment to excellence and innovation, SIRS-E® continues to provide top-tier lighting solutions for industry professionals. Choose the ProDMX-CAB-UL for your next project and experience superior reliability, flexibility, and signal performance that sets it apart from standard DMX cables.

Applications:

  • DMX512 Lighting Control
  • Temporary or Permanent Installations
  • Stage Applications

Main Features:

  • DMX512 and AES/EBU Digital Cable
  • 2 Pair (5 Conductors + Drain Wire)
  • Low-Capacitance Data Pairs
  • Shielded Cable
  • Drain Wire for Easy Shield Termination
  • Ultra-Thin overall diameter
  • For use with 3 or 5 Pin XLR Connector

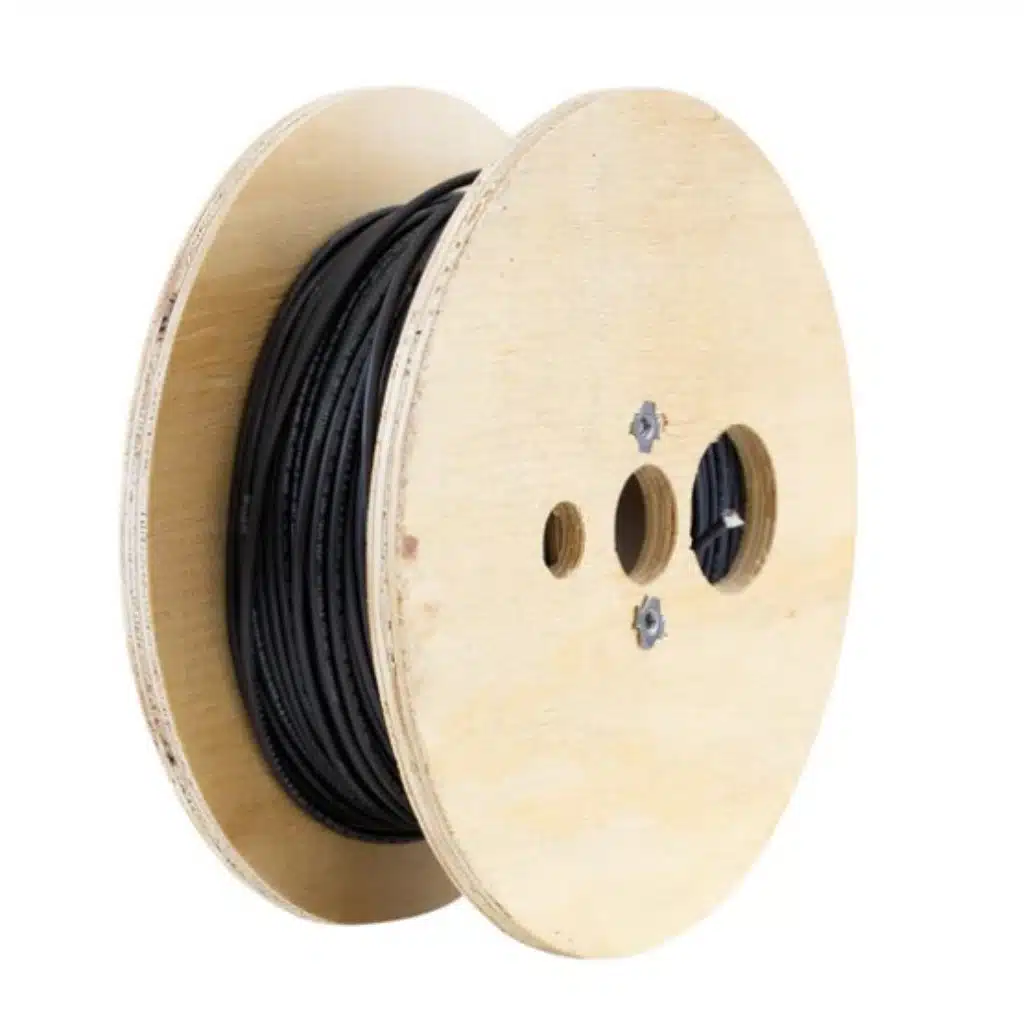

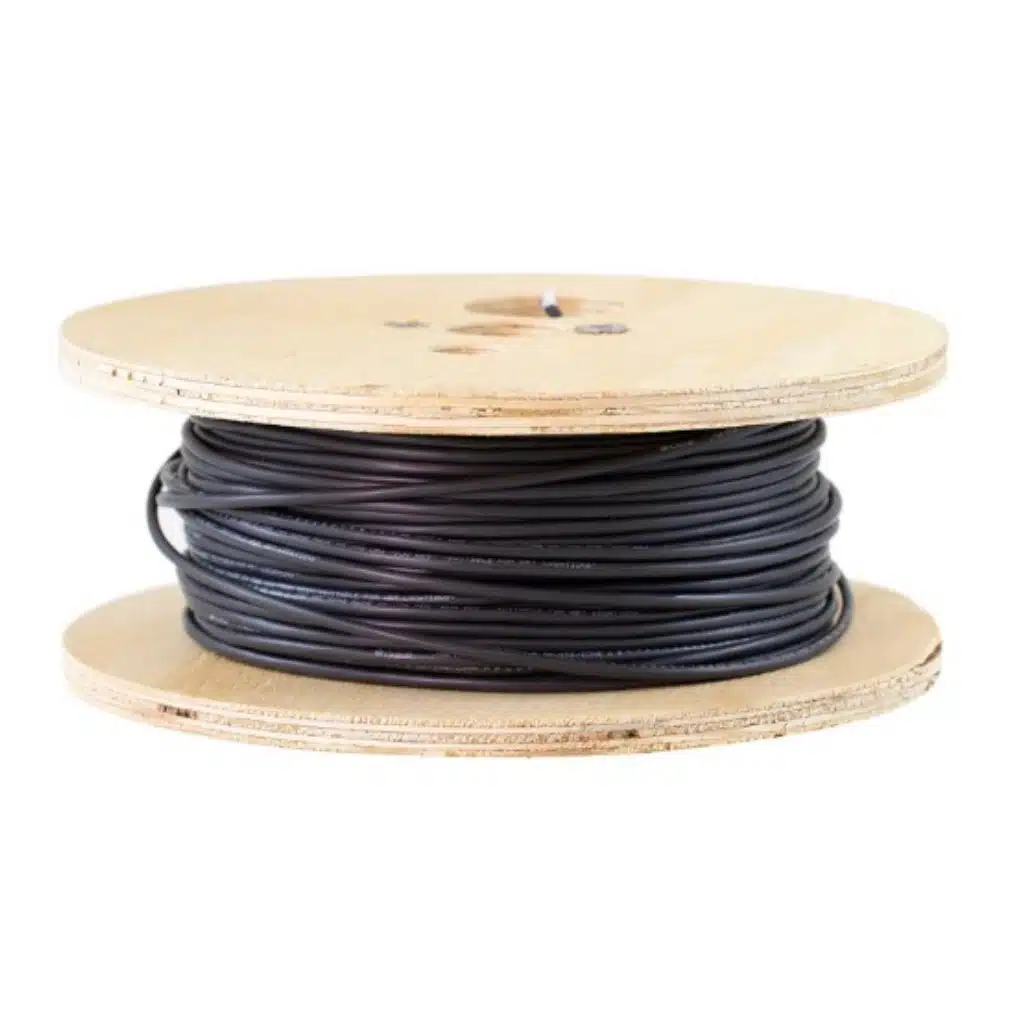

  • Available Per Foot or By the Spool
  • Made in the USA

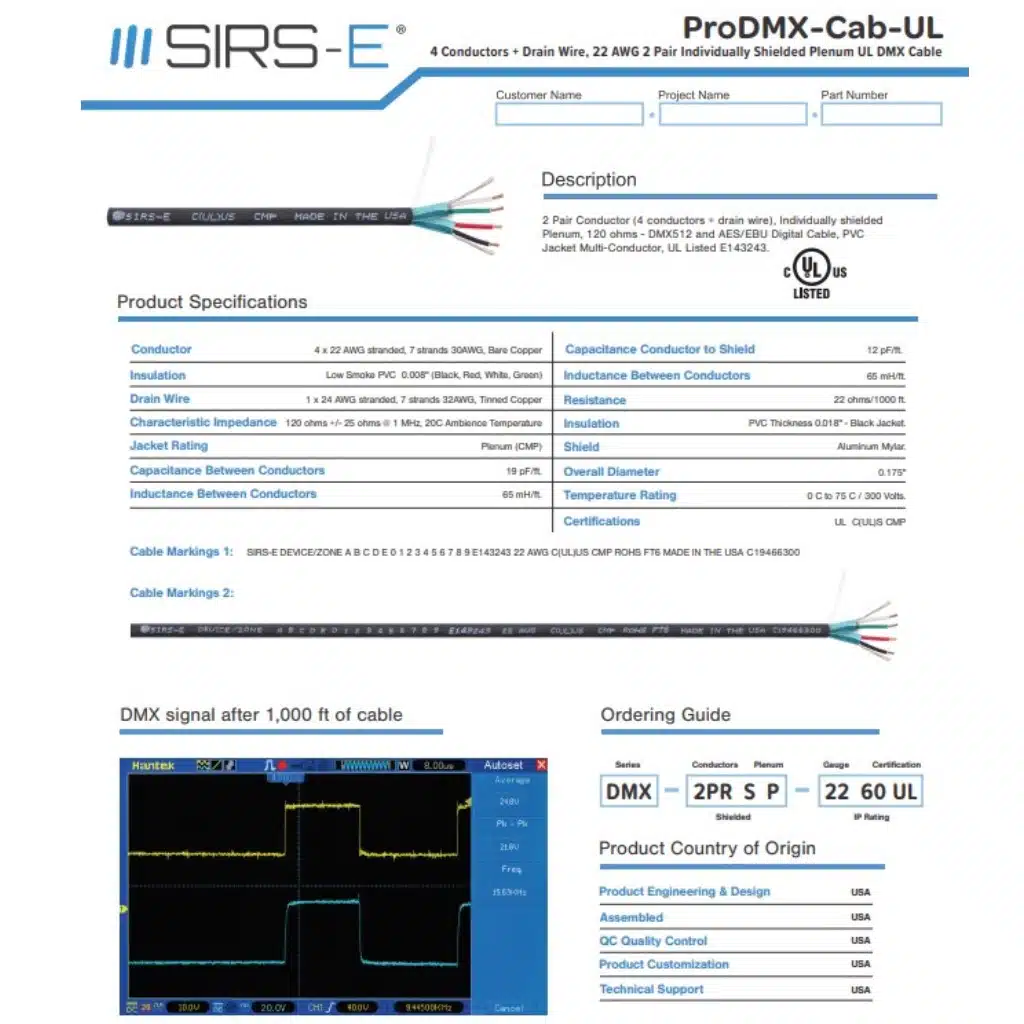

Technical Specifications:

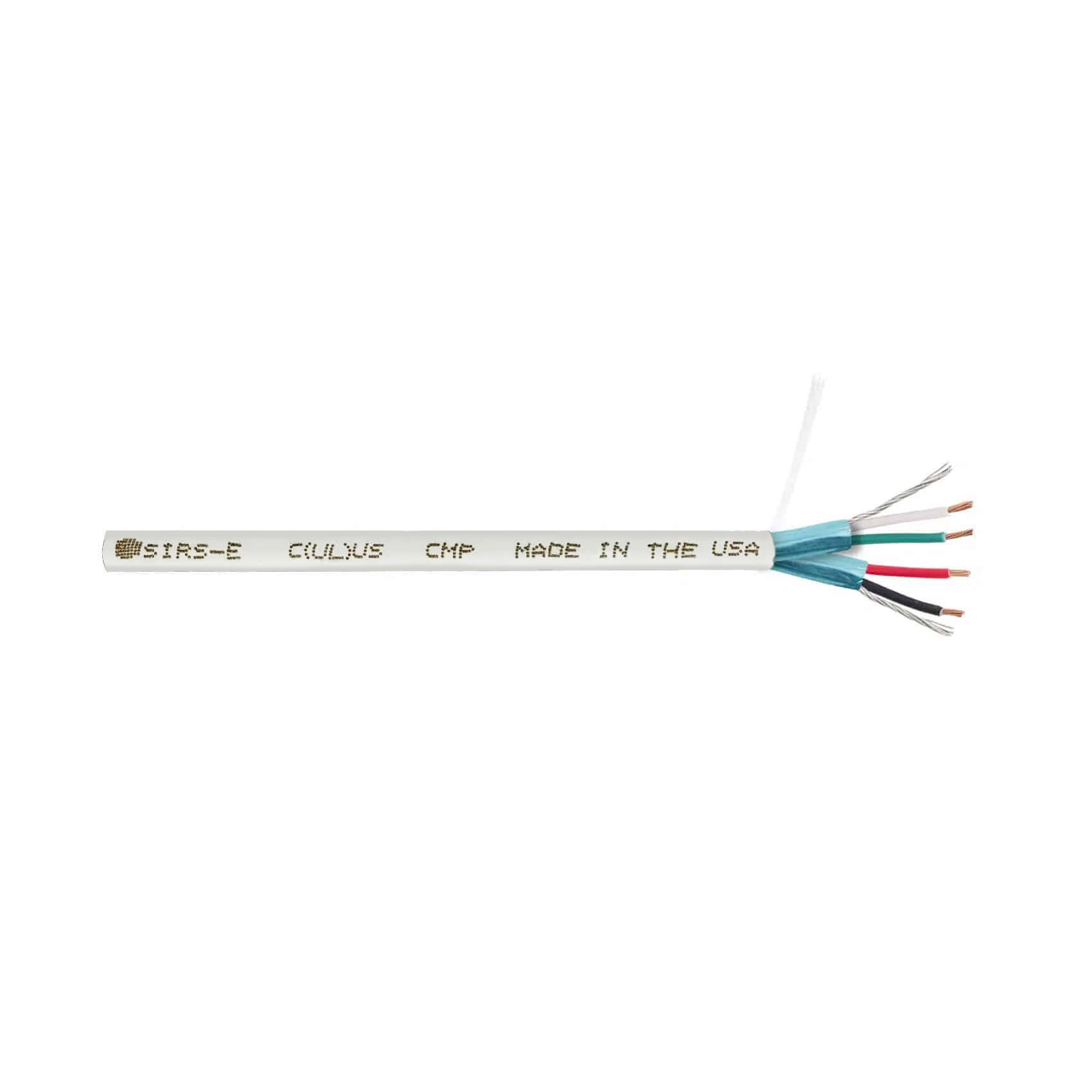

  • Conductor: 4 x 22 AWG stranded, 7 strands 30AWG, Bare Copper
  • Insulation: Low Smoke PVC 0.008″ (Black, Red, White, Green)
  • Drain Wire: 1 x 24 AWG stranded, 7 strands 32AWG, Tinned Copper
  • Impedance: 120 ohms +/- 25 ohms @ 1 MHz, 20C Ambience Temperature
  • Jacket Rating: Plenum (CMP)
  • Capacitance Between Conductors: 19 pF/ft.
  • Inductance Between Conductors: 65 mH/ft.
  • Capacitance Conductor to Shield: 12 pF/ft.
  • Resistance: 22 ohms/1000 ft.
  • Insulation: PVC Thickness 0.018″ – Black Jacket
  • Shield: Aluminum Mylar
  • Overall Diameter: 0.175″
  • Temperature Rating: 0 C to 75 C / 300 Volts
  • Certifications: UL C(UL)S CMP

Documents:
