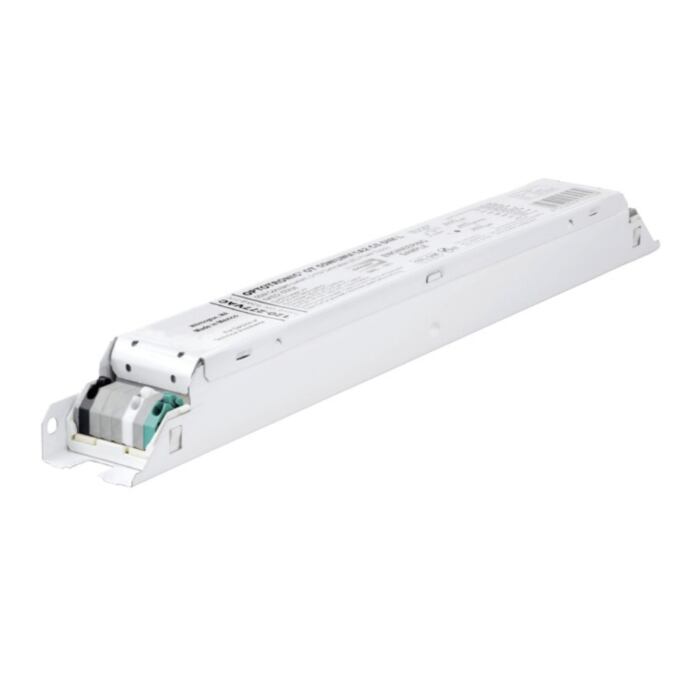

OPTOTRONIC OT 50W UNV 1A4 CS DIM L CC Current Select Linear LED Driver (*2743WP / 57440)

Description

OPTOTRONIC OT 50W UNV 1A4 CS DIM L CC Current Select Linear LED Driver (*2743WP / 57440)

OPTOTRONIC OT 50W UNV 1A4 CS DIM L Constant Current LED Driver is part of OSRAM’s high-efficiency, linear dimmable driver family designed to deliver superior performance and flexibility in a wide range of lighting applications. Engineered for precision and reliability, this constant current driver features an integrated current selection (CS) mechanism that simplifies configuration and streamlines installation. With a universal input voltage range and true 10% dimming via standard 0–10V protocol, it ensures smooth and consistent light output.

Key advanced features include optional LED thermal protection, constant lumen maintenance, and an end-of-life indicator—all of which can be tailored to meet your specific application needs. Additionally, its auxiliary output can supply power to external sensors and controls, making it ideal for connected lighting systems.

The OT 50W UNV is a smart solution for commercial, architectural, and OEM lighting designs.

Features:

• Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Dim to off, Soft start
• Specification grade dimming down to 10% on 0-10V dimmers.
• Slim form factors
• Input voltage: Universal 120-277Vac, 50/60Hz
• UL Class 2 output for safe operation

Specifications:

• Ambient Operating Temperature: -20ºC to 50ºC
• Case Temperature (Tc): 75ºC (50kHrs)
• Max. Storage Temp: 70ºC
• Max. Relative Humidity (%): 85% non-condensing
• Transient Protection: ANSI C62.41 Cat. A 2.5kV, Ring Wave
• EFT: IEC 61000-4-4 (1kV)
• UL Rating: Dry & Damp
• UL File number: E333135
• EMI Compliance: FCC Part 15 Class A
• Sound Rating: Class A

Input:

• Input Voltage (VAC): 120V-277V (+/- 10%)
• Frequency Range (Hz): 50 – 60 Hz (+/- 10%)

Output:

• Output Current (mA): 1200mA/1300mA/1400mA
• Output Voltage (VDC): 20-36VDC
• Output Ripple Current: <30% @ full load
• Max. Output Power (W): 50W
• LED Power-Up Time: <1sec
• Load Regulation: <5%
• Line Regulation: <10%
• Over Voltage (4V over limit): Yes, non-latching
• Output Short-Circuit Protection: Yes, non-latching

Dimming:

• Dimming Control: 0 – 10V
• Dimming Range: 10-100%
• Dimming Type: Current Reduction
• Dimming Input Isolation: 2.5kV
• Source Current: 2mA max

Documents:

• DataSheet
