Description

Nicolaudie SLESA-U11 Smart DMX Interface USB and Ethernet, 99 Scenes, 5 Zones, 1024+ DMX Channels

Nicolaudie SLESA-U11 Smart DMX Interface is a state-of-the-art lighting controller designed to meet the demands of complex architectural lighting installations. Built on the latest generation of Nicolaudie technology, the SLESA-U11 incorporates all the most recent advancements in DMX control and offers a highly flexible, intuitive solution for both standalone and network-based environments.

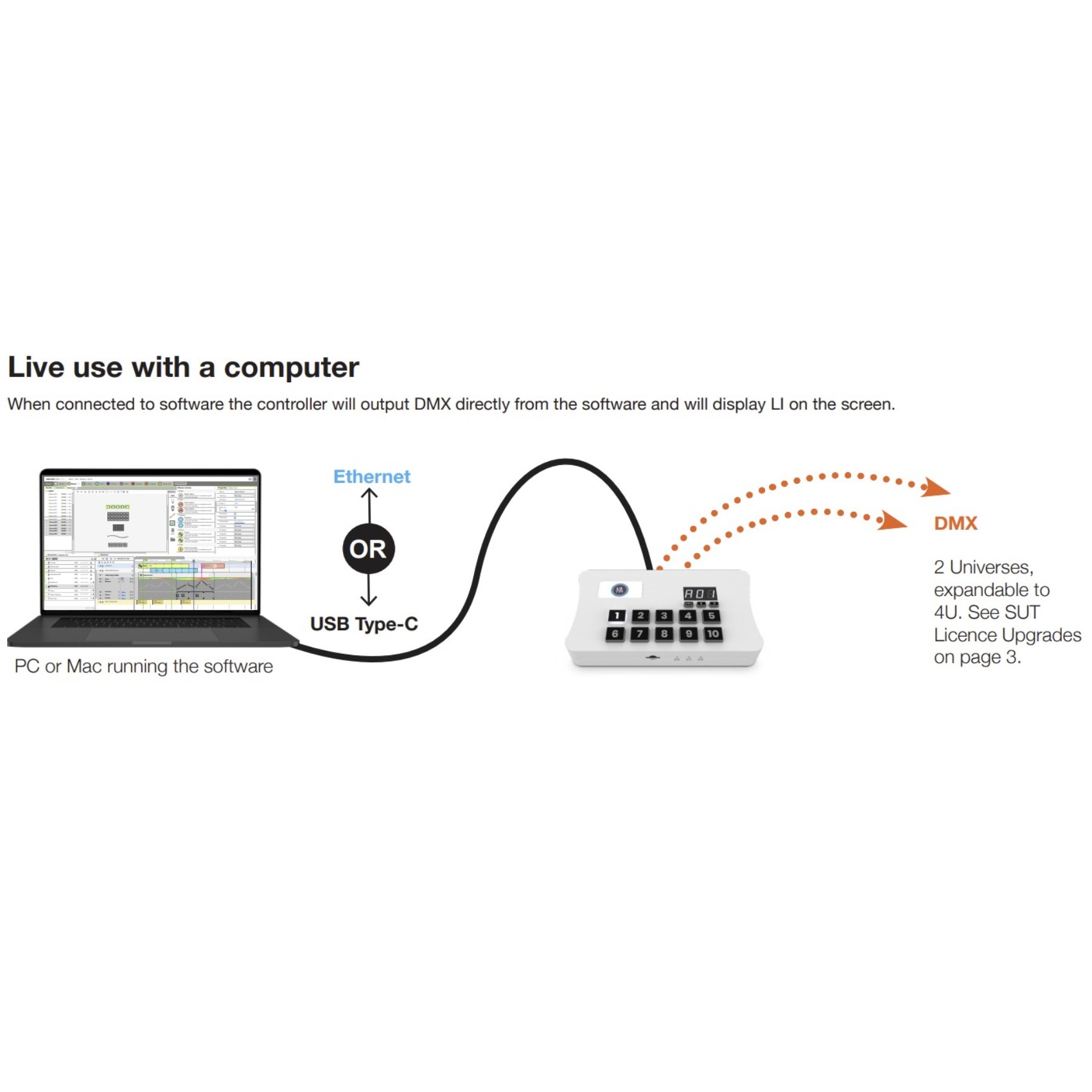

This controller is fully compatible with ESA Pro 2 software and the Arcolis mobile app, giving users the power to create dynamic lighting scenes and custom triggers directly from a PC, Mac, iOS, or Android device. At the core of the SLESA-U11 is the new Nicolaudie Stand Alone (NSA) engine, which supports advanced features such as multi-zone control, extended trigger options, 16-bit channel resolution, and calendar-based event scheduling.

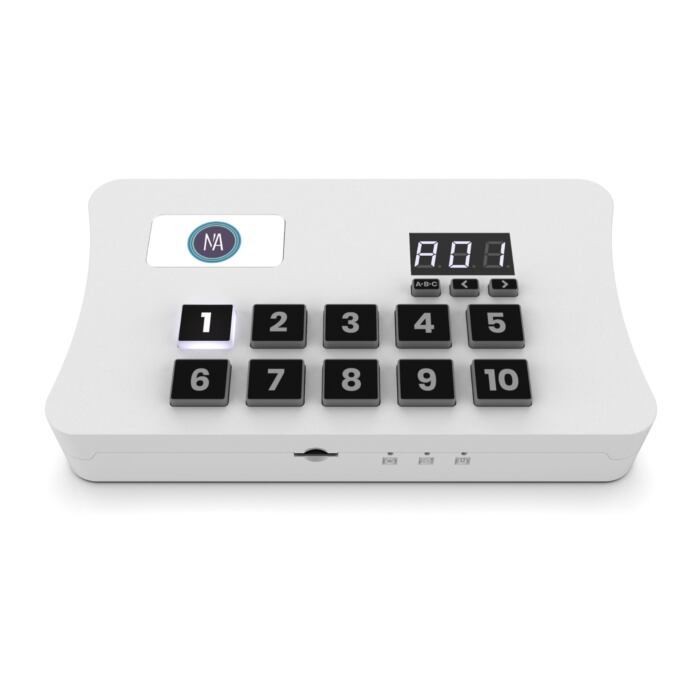

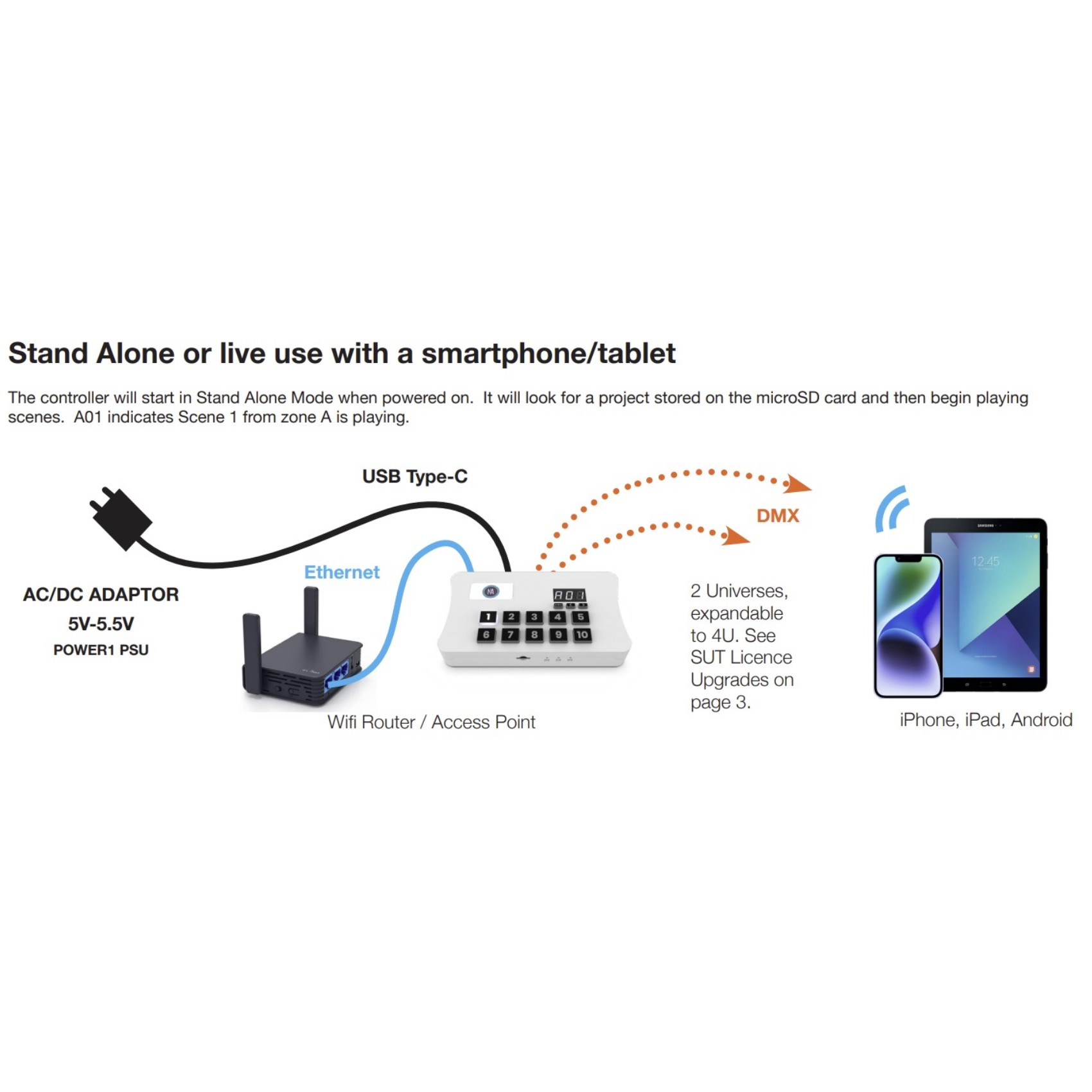

The unit is equipped with an easy-to-use backlit keypad featuring 10 customizable preset buttons, making on-site operation simple and efficient without the need for a computer. The addition of an Ethernet port enables remote control over a local network using the Arcolis Remote or Arcolis Remote Pro applications.

Compact yet powerful, the SLESA-U11 is ideal for permanent installations in architectural, commercial, and hospitality lighting projects. Whether you’re programming intricate multi-room environments or seeking reliable, real-time control from anywhere, the SLESA-U11 delivers exceptional performance and unmatched flexibility.

Features:

  • 2x DMX512 universes in live mode (computer/tablet)
  • 2x DMX512 universes in stand alone mode
  • Expandable from 2 to 4 DMX512 universes
  • Intuitive backlit keyboard with 10 presets
  • 99 scenes (total) across 5 zones
  • USB & Ethernet for programming/control
  • Multi-zone microSD memory

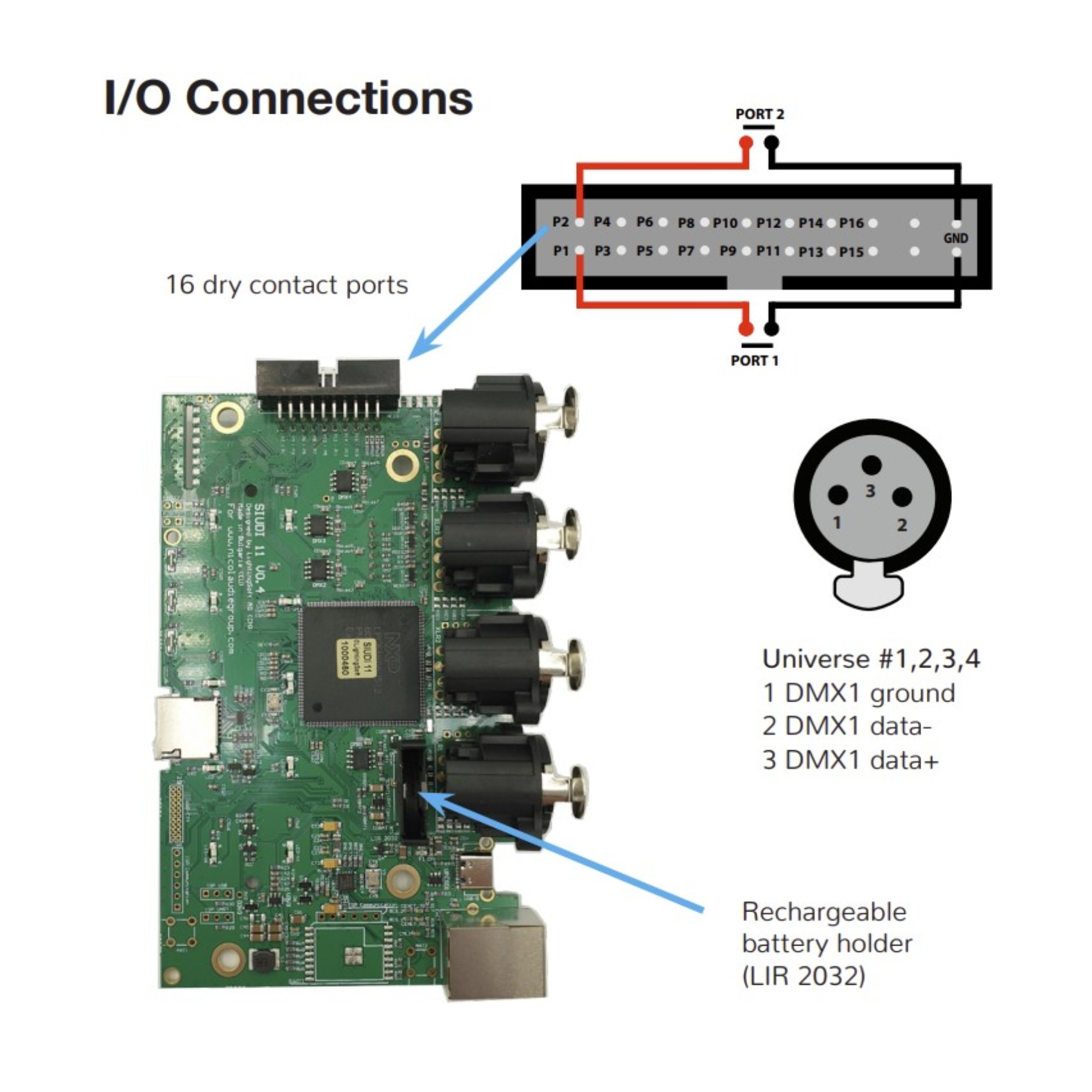

  • 16 dry contact trigger ports via 20-Pin IDC Socket
  • Clock and calendar with Sunrise/Sunset triggering
  • Network communication. Control lighting remotely
  • OEM customization
  • Windows/Mac software to set dynamic colors/effects
  • Phone/iPad/Android remote and programming apps
  • Metal bracket, mount to a wall or under a desk
  • DMX in or out. RDM ready.
  • Extended triggering possibilities (TCA)
  • Smart Upgrade Technology (SUT)

Technical Specifications:

Input Power: 5-5.5V DC 0.6A
Output Protocol: DMX512
Programmability: Windows, Mac OS, iOS, Android

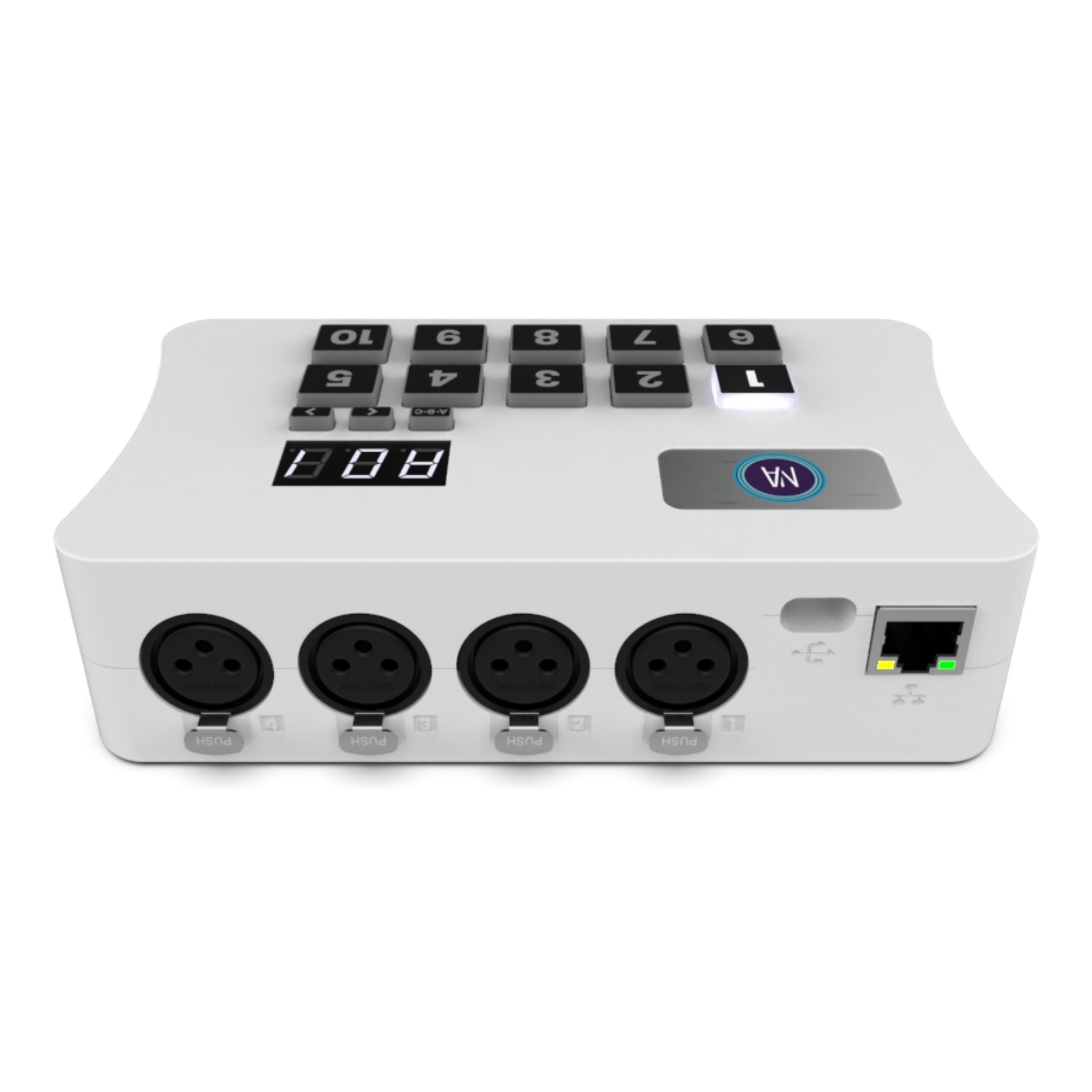

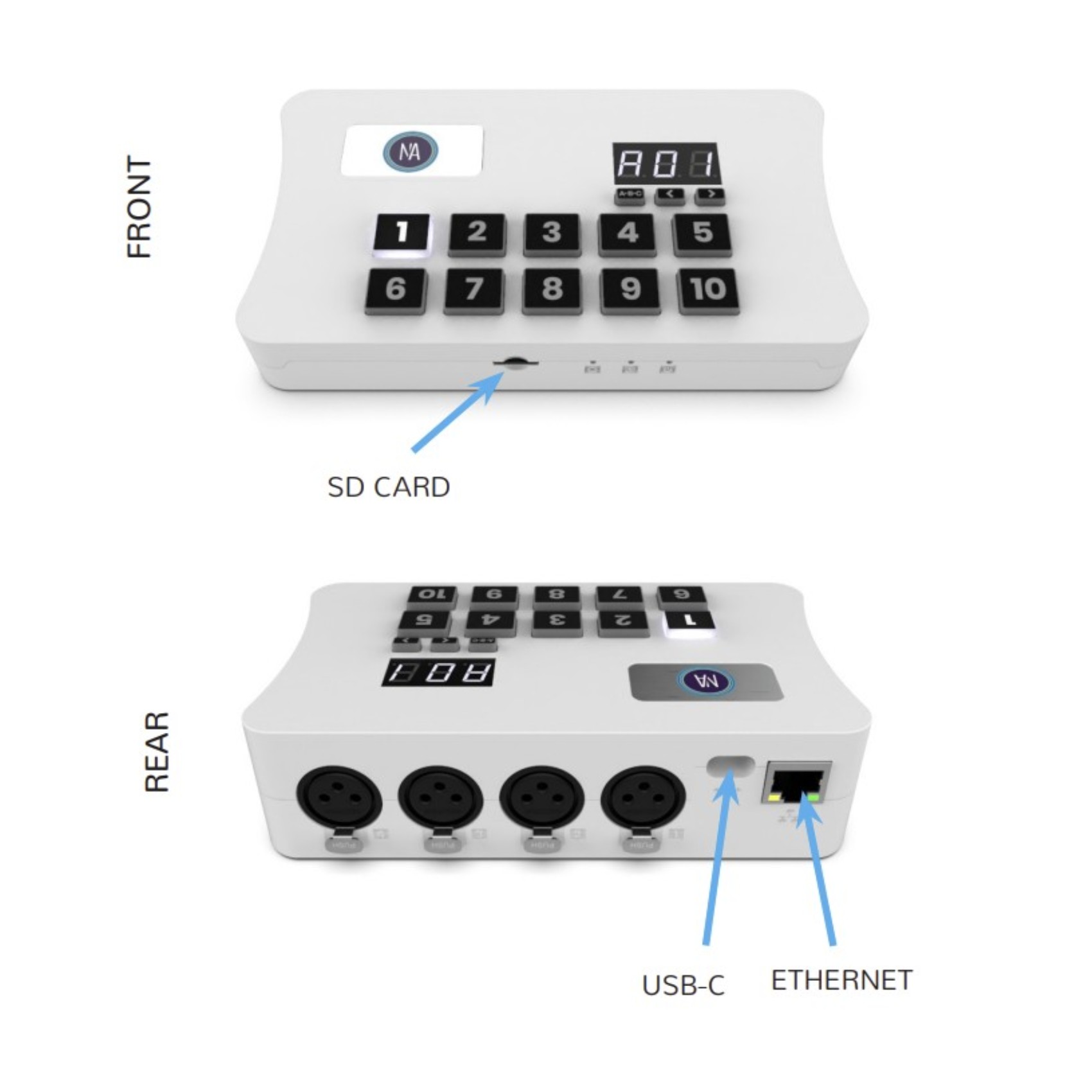

Connections: Type C USB, XLR3, Ethernet, 20-Pin (2×10) Male IDC Socket, battery TCP Connections 2
Memory: microSD SD & SDHC (32Gb Max)
Environment: IP20. 0°C – 50°C
Buttons: 10 buttons for direct access 2 buttons to change scene + 1 button to change zone
Dimensions (mm): 160x90x45mm
OS Requirements: Mac OS X 10.13 onwards; Windows 8.1 64bit onwards
Standards: ETL, EC, EMC, ROHS

What’s In The Box:

  • SLESA-U11 interface
  • USB cable

Documents:



SKU: SLESA-U11
